Grundfos UPS 65-120/2 (340) Single Head Commercial Circulator 240V replaced with MAGNA1 65-120F (340)

96402278/ 99221374
MRRP £2,081.00 + VAT Our price £1,240.00 (+ VAT) Incl. VAT: £1,488.00
Order within
for next day delivery i

Grundfos UPS 65-120/2 (340) Circulator Pump 240V.

Due to new European Legislation brought into force in January 2013, the UPS 65-120/2 (340) is no longer manufactured.  On purchase of this pump, we will automatically upgrade your order to the new EUP ready Energy Efficient MAGNA1 65-120F (340) at no extra cost.

Please note, this pump requires a 30mm spacer kit to fit on to the existing pipework, we will supply this kit free of charge with the MAGNA1 pump.

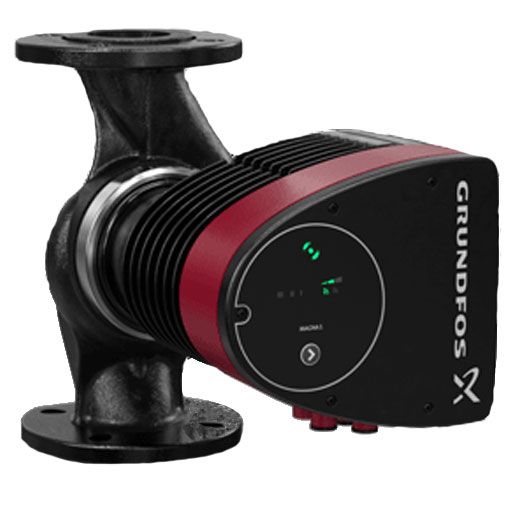

The Grundfos MAGNA1 65-120F (340) 'A' Rated/EuP Ready variable speed circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.  The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.


  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life


  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 65 range has 340mm port-to-port dimensions and all have 65mm flanged connections.

More Information
SKU 96402278/ 99221374
Manufacturers Grundfos
Manufacturers Warranty 2 Years
Weight 23.8 Kg
Dimensions 340mm (h) x 266mm (w) x 386mm (d)
Motor Size 24.38-774W
Full Load Current (FLC) 0.26-3.42A
Voltage 240V 1Ph 50Hz
Max Flow 47m3/hr
Max Head 12m
Material Cast Iron
Old Sku 96402278
