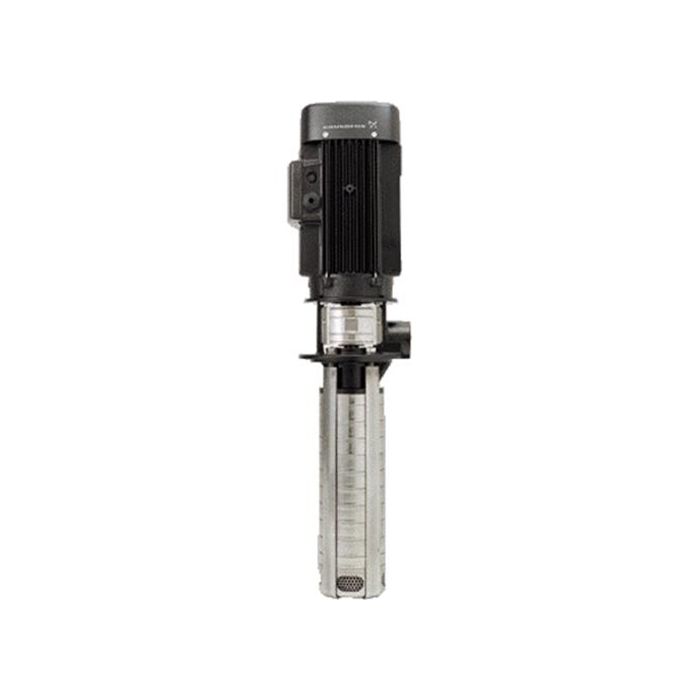

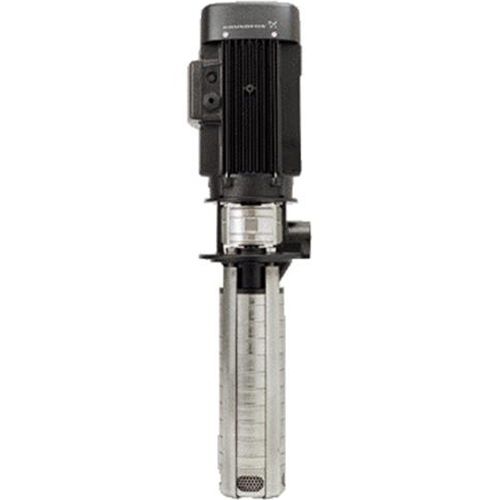

Grundfos MTR 1 22/22 A W A HUUV 1.1kW Stainless Steel Vertical Immersible Pump 415v

Name: Grundfos MTR 1 22/22 A W A HUUV 1.1kW Stainless Steel Vertical Immersible Pump 415v
Brand: Grundfos
SKU: 98511259
Price: 1228 GBP
Availability: InStock

SKU

98511259

MRRP £1,753.00 + VAT Our price £1,228.00 (+ VAT) Incl. VAT: £1,473.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos MTR 1 22/22 A W A HUUV 1.1kW Stainless Steel Vertical Immersible Pump 415v

Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics:

Dimensions according to DIN 5440.
Impellers, intermediate chambers and spline shaft are made of stainless steel.
Mechanical shaft seal according to EN 12756.
Power transmission via sintered metal split coupling.

A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

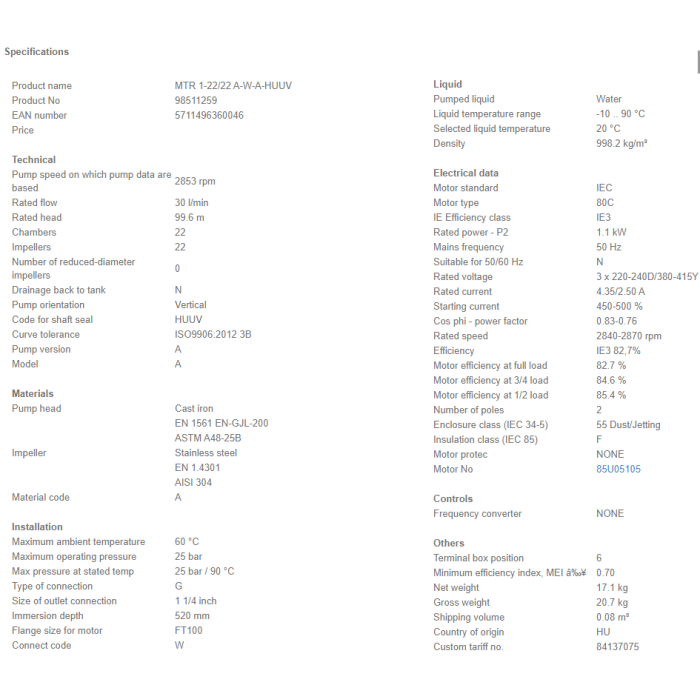

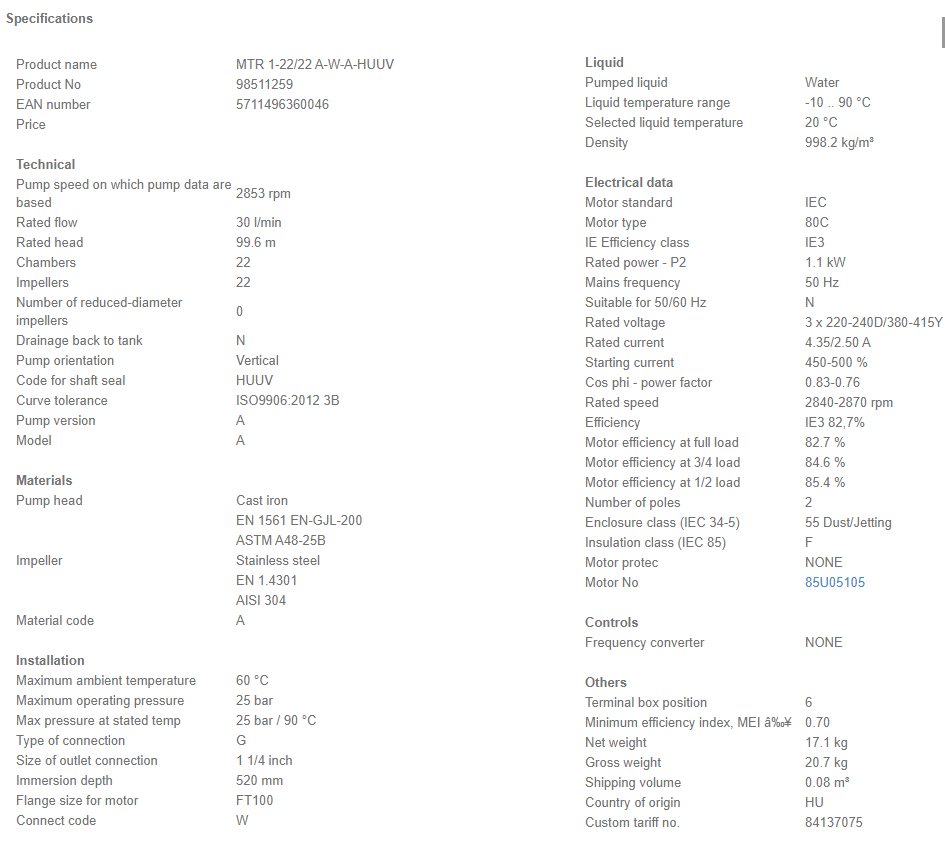

More Information
SKU	98511259
GTIN	5711496360046
Weight	20.7 Kg

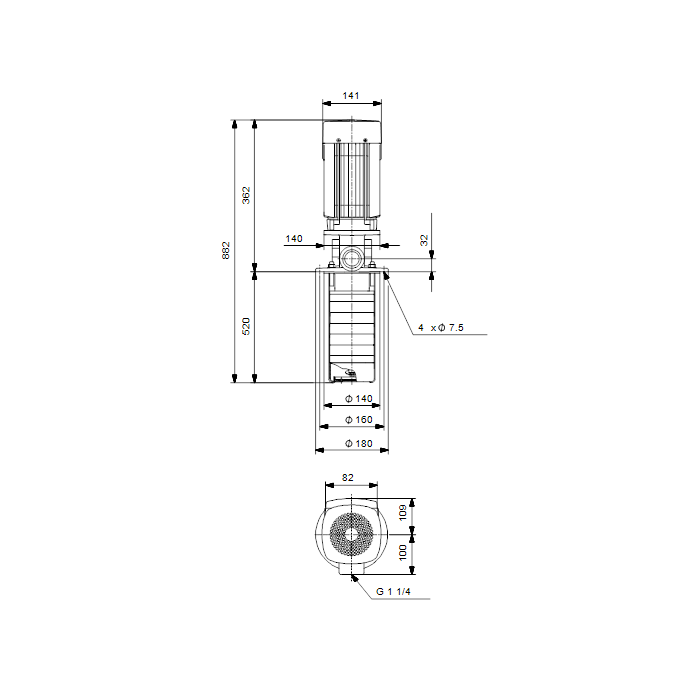

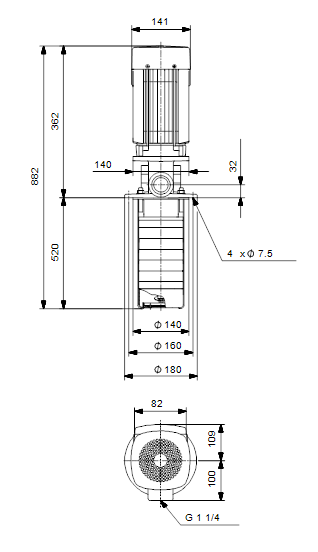

Dimensions	882mm (h) x 180mm (w) x 82mm (d)
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
Material	Cast Iron
Impeller Material	Stainless Steel
Voltage	415V 3Ph 50Hz
Max Flow	39l/min
Max Head	134m
Full Load Current (FLC)	2.50 A
Motor Size	1.1 kW
Immersion Depth	520mm
