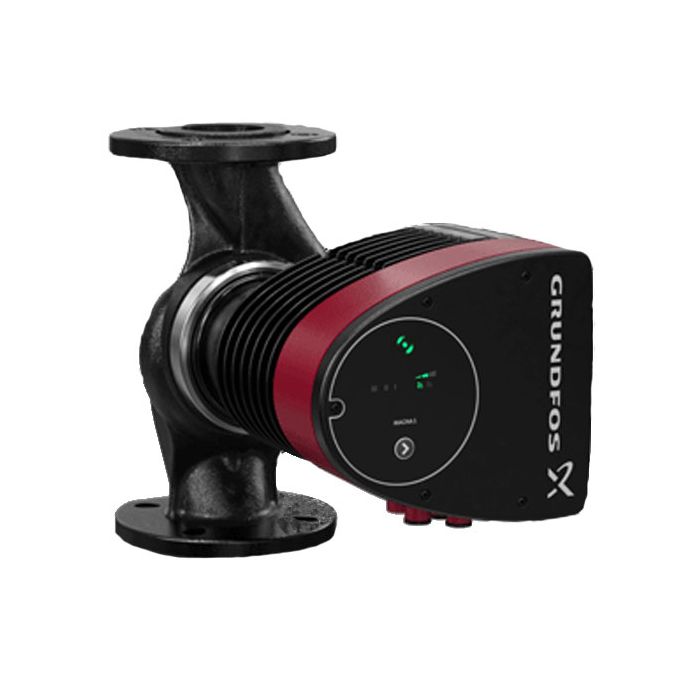

Grundfos MAGNA1 40-120F (250) 'A' Rated/EuP Ready Variable Speed Circulator 240V (99221305)

Name: Grundfos MAGNA1 40-120F (250) 'A' Rated/EuP Ready Variable Speed Circulator 240V (99221305)
Brand: Grundfos
SKU: 97924178
Price: 1261 GBP
Availability: InStock

SKU

97924178

MRRP £2,141.00 + VAT Our price £1,261.00 (+ VAT) Incl. VAT: £1513.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

The Grundfos MAGNA1 40-120F (250)'A' Rated/EuP Ready variable speed circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.

Applications include:

Heating systems
Main pump
Mixing loops
Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for example in solar-heating systems.

Benefits:

Safe selection
Simple installation
Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
Nine light fields for indication of pump setting.

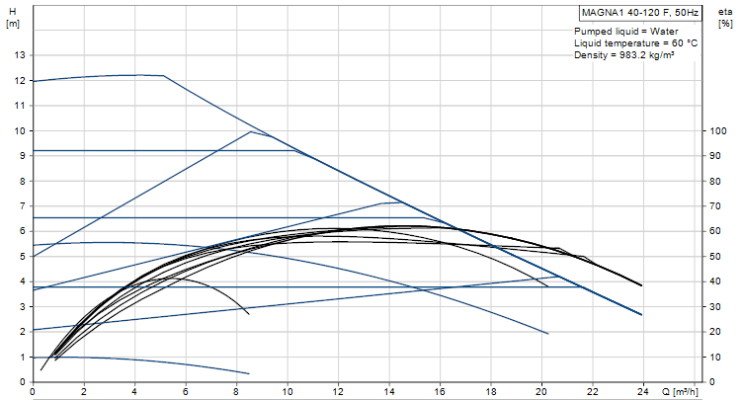

Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
Low noise level
Maintenance free and long life

Liquid:

Pumped liquid: Water
Liquid temperature range: -10 .. 110 °C

MAGNA1 40 Series have 220mm port-to-port dimensions and 40mm flanged connections.

More Information
SKU	97924178
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5710626492527
Weight	17.7 Kg
Dimensions	220mm (h) x 234mm (w) x 369mm (d)
Motor Size	15.01-463W
Full Load Current (FLC)	0.18-2.05A
Voltage	240V 1Ph 50Hz
Max Flow	24m3/h
Max Head	15m
Material	Cast Iron
