Grundfos MAGNA1 25-40 (180) 'A' Rated/EuP Ready Variable Speed Circulator 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

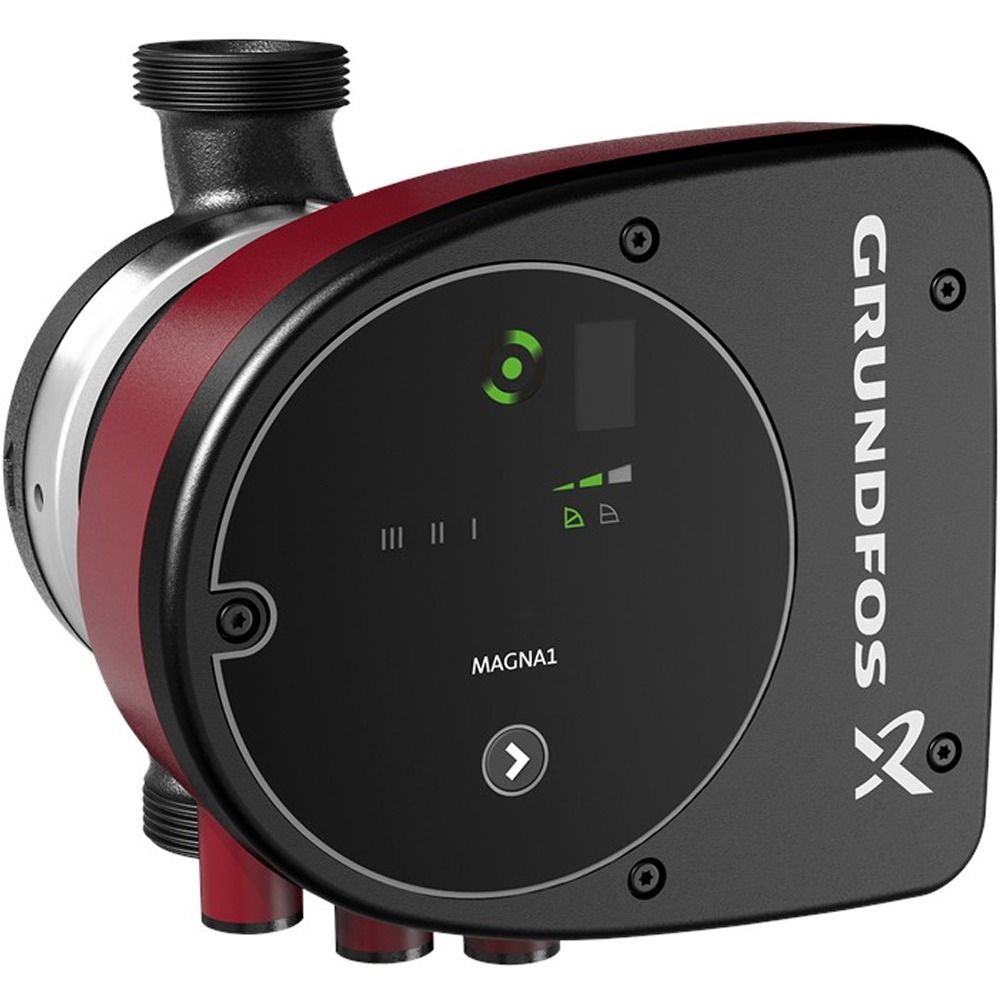

Grundfos MAGNA1 25-40 (180) 'A' Rated/EuP Ready Variable Speed Circulator 240V - 99221216
The Grundfos MAGNA1 circulator pump is the simple option for a job well done. With its high energy efficiency the product lives up to the EuP 2015 regulations ensuring substantial savings on electricity, and with its intuitive, user-friendly interface and maintenance-free design, MAGNA1 is the ideal circulator pump for basic performance needs in applications where basic system control and monitoring are desired. With this range of circulator pumps, everything from setup to basic control and monitoring are made easy. The pump is maintenance-free due to the canned-rotor type design. MAGNA1 offers the possibility of monitoring the pump via the fault relay output. The digital start/stop input remotely controls the pump. The pump communicates wirelessly with the Grundfos GO Remote app. MAGNA1 can work as main pump in both heating and cooling applications, including:
- Mixing loops
- Heating surfaces
- Air-conditioning surfaces
- Ground-source heat pump systems
- Smaller chiller applications
MAGNA1 is a single-phase pump and characterised by having the controller and operating panel integrated in the control box. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of stainless steel and the stator housing is made of aluminium. The power electronics are air-cooled.
The pump incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.

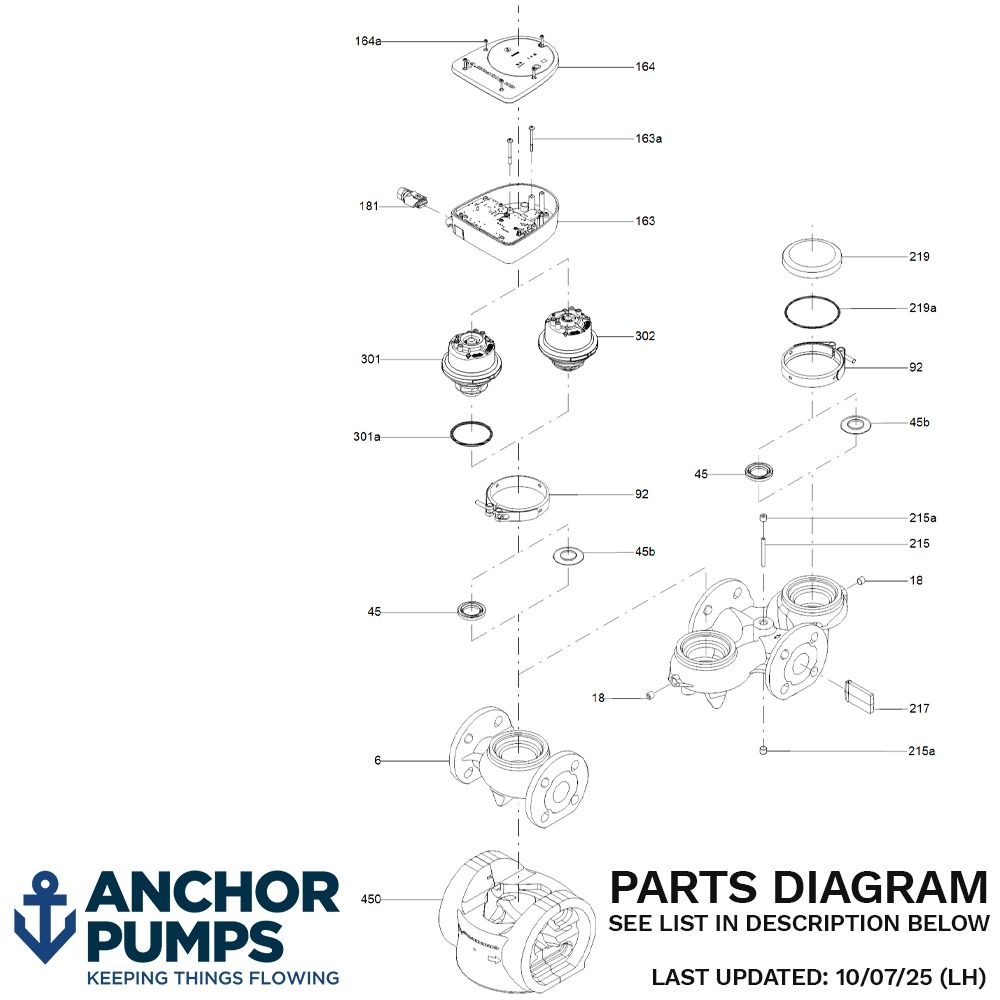

Parts Diagram List:
Kit, Connector Plugs (99461932) - 181.
Kit, Control Box Non-Configured (99363376) - 1a, 163a, 163, 164a, 164.
Kit, Cover (99364501) - 164.
Kit, Pump Head (98357751) - 92, 163a, 302.
Spare, Clamp (98148760) - 92.
Spare, O-Ring (98357755) - 301a.
Spare, Insulation Shell (98615808) - 450.

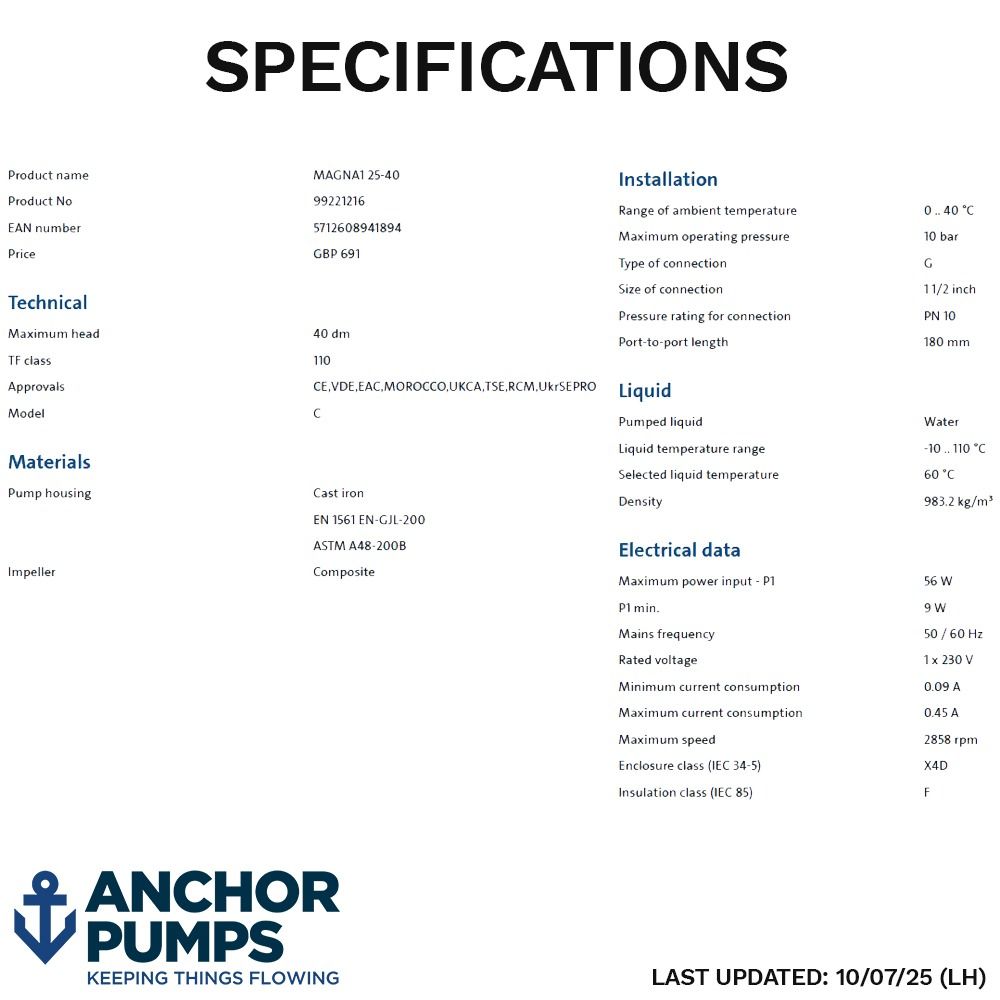

| SKU | 99221216 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712608941894 |
| Weight | 5.4 Kg |

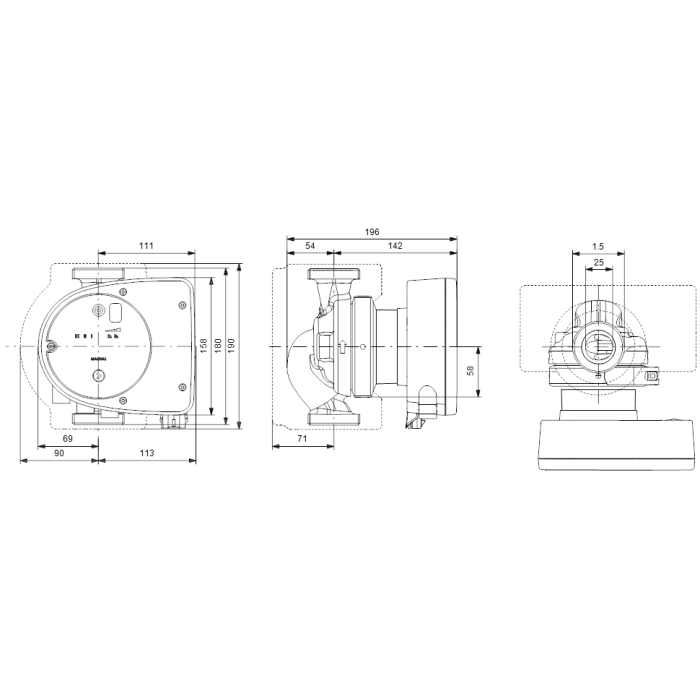

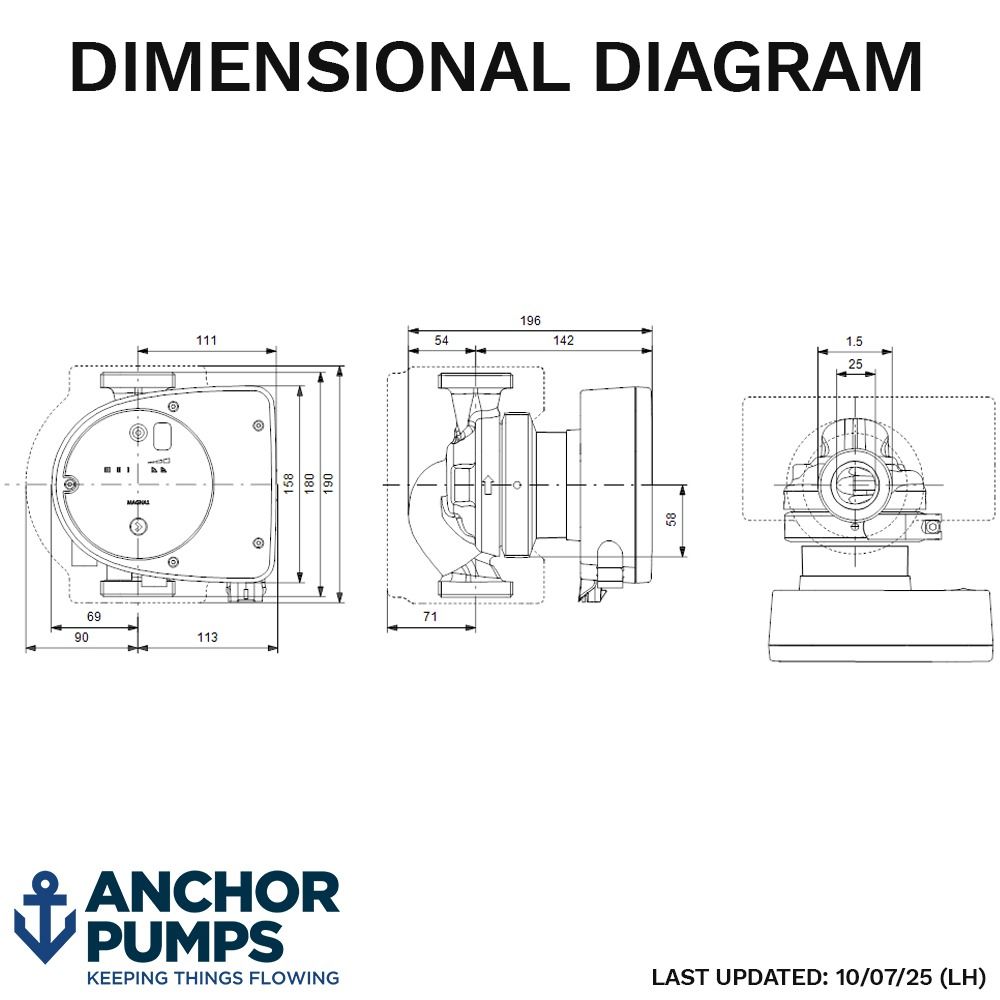

| Dimensions | 180mm (h) x 182mm (w) x 196mm (d) |
| Connection Type | 1 1/2 Inch BSP |
| Motor Size | 9-56W |
| Full Load Current (FLC) | 0.09 - 0.45A |
| Voltage | 240V 1Ph 50Hz |

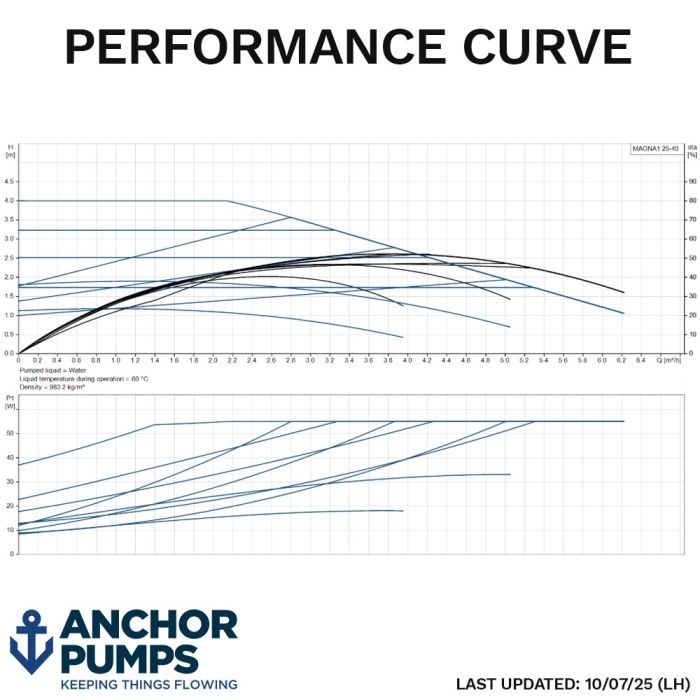

| Max Flow | 6.3m3/h |
| Max Head | 4m |
| Material | Cast Iron |
| Old Sku | 97924153 |
