Grundfos JP4-54 Horizontal Tank Self Priming Booster Set 240v

SKU
99463912
MRRP £815.00 + VAT Our price £460.00 (+ VAT) Incl. VAT: £552.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

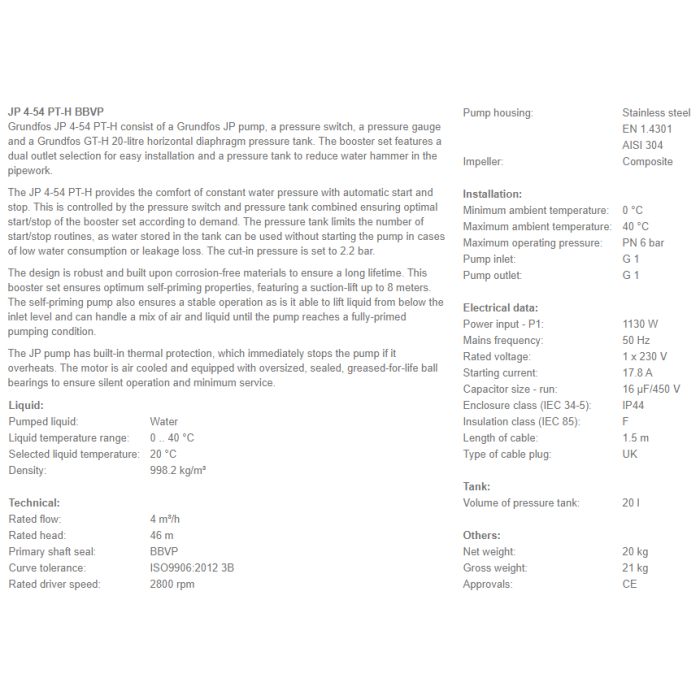

JP 4-54 PT-H BBVP

BE ADVISED - THIS PRODUCT IS DISPATCHED AS AN ASSEMBLY KIT FOR THE CUSTOMER TO BUILD UPON DELIVERY

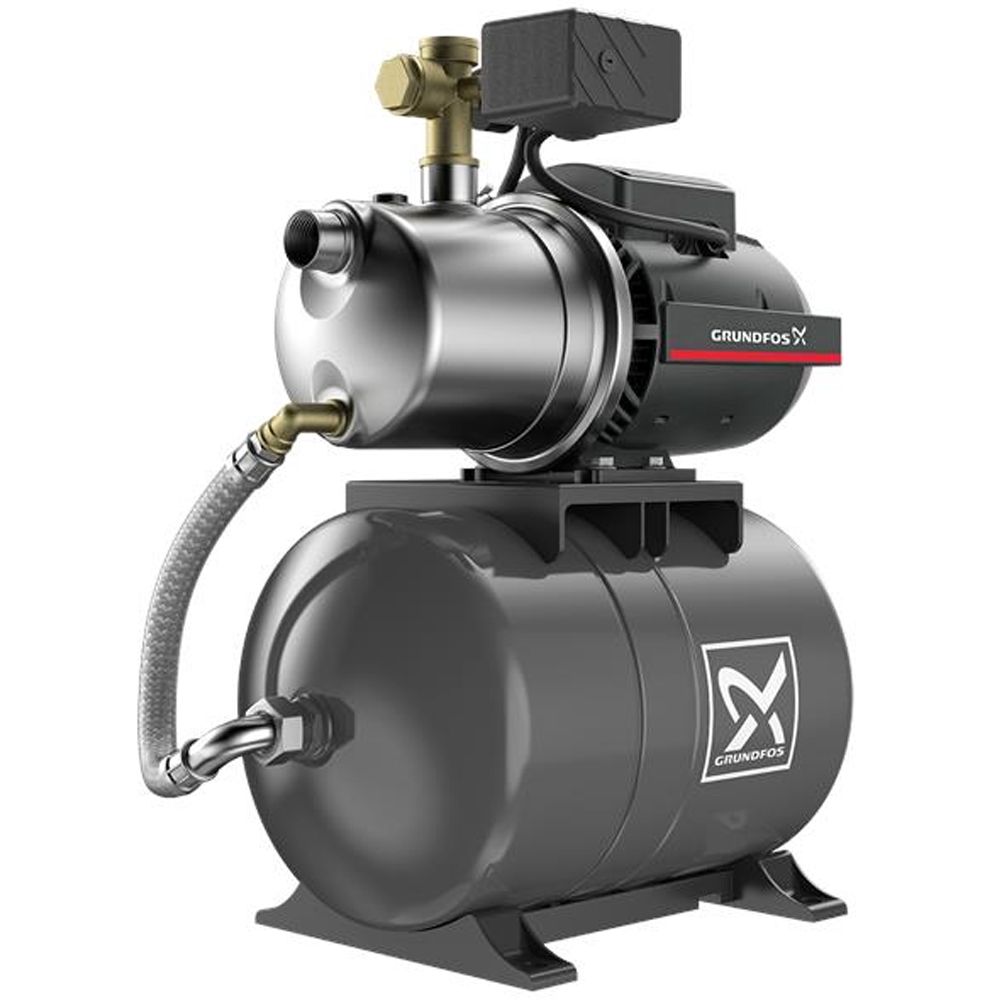

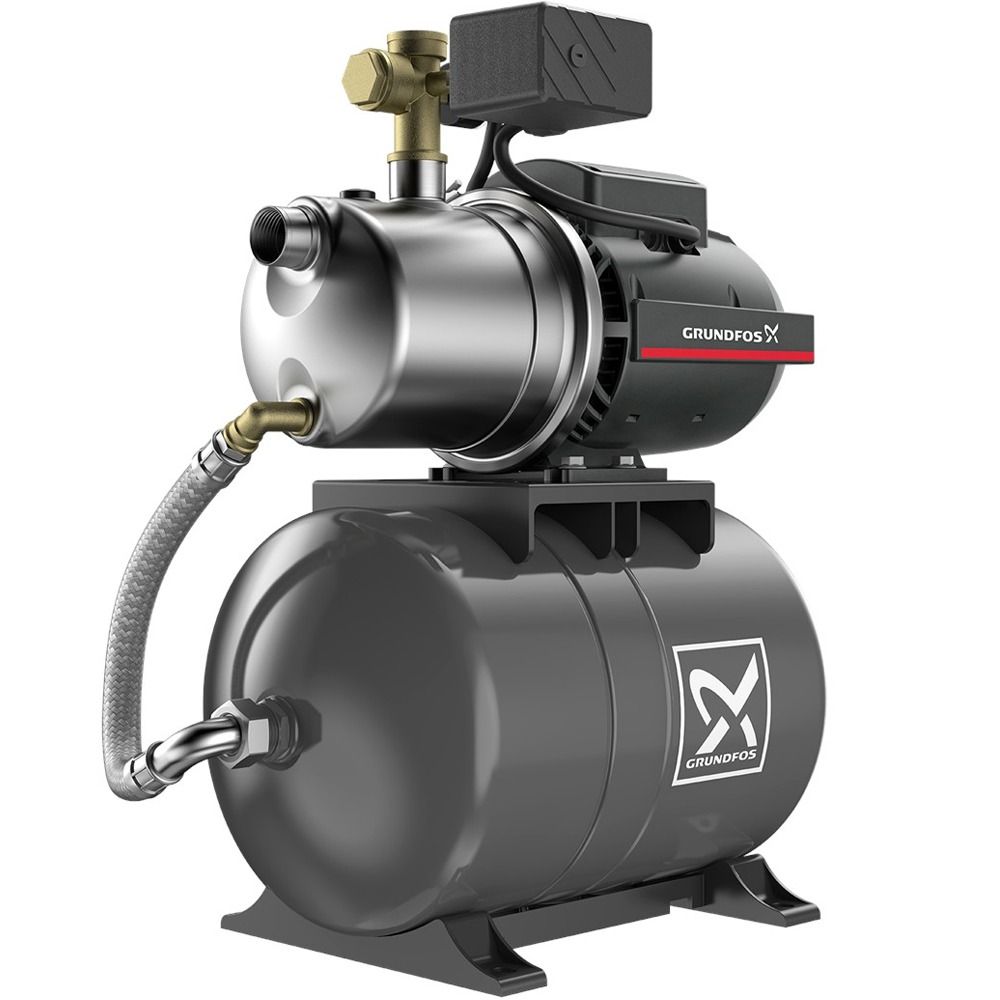

Grundfos JP 4-54 PT-H consist of a Grundfos JP Self Priming pump, a pressure switch, a pressure gauge and a GT-H 20-litre horizontal diaphragm pressure tank. The booster set features a dual outlet selection for easy installation and a pressure tank to reduce water hammer in the pipework.

The JP 4-54 PT-H provides the comfort of constant water pressure with automatic start and stop. This is controlled by the pressure switch and pressure tank combined ensuring optimal start/stop of the booster set according to demand. The pressure tank limits the number of start/stop routines, as water stored in the tank can be used without starting the pump in cases of low water consumption or leakage loss. The cut-in pressure is set to 2.2 bar.

The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction-lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.

The JP pump has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.

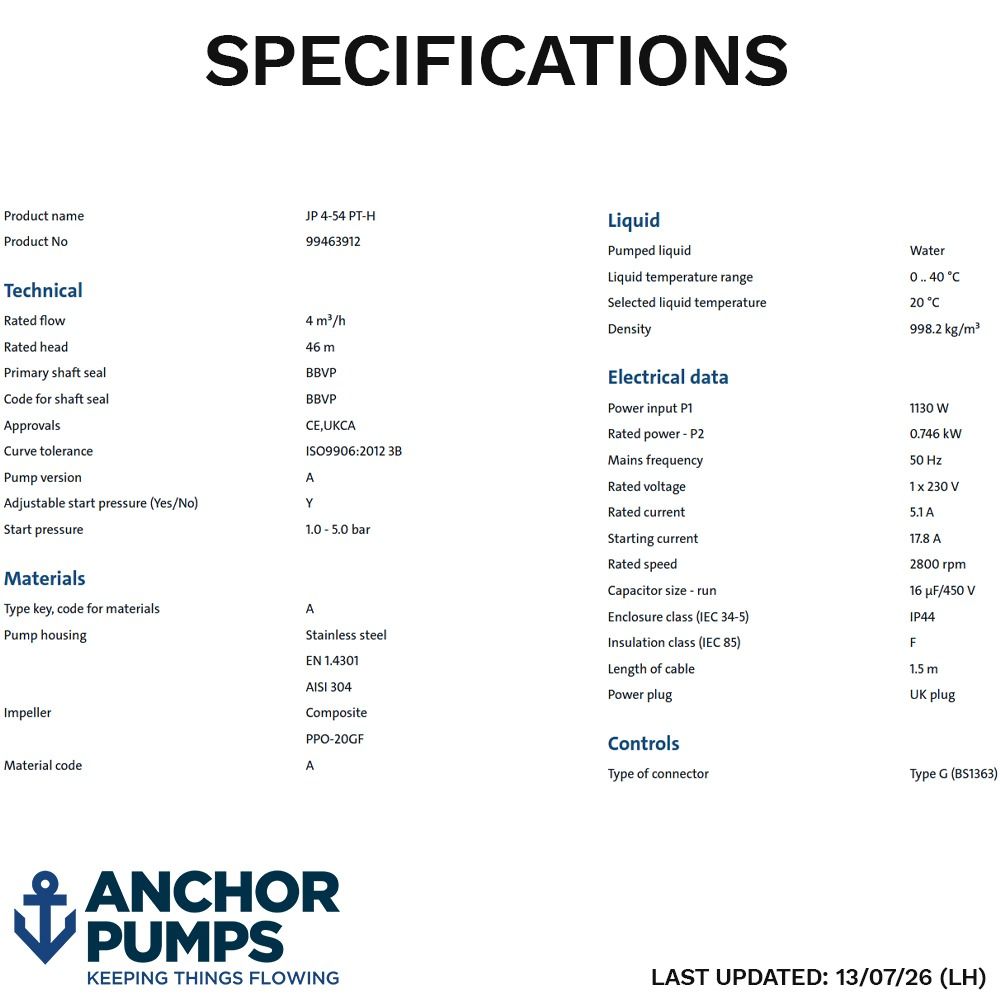

More Information
SKU 99463912
Manufacturers Grundfos
Manufacturers Warranty 2 Years
Weight 20.0 Kg

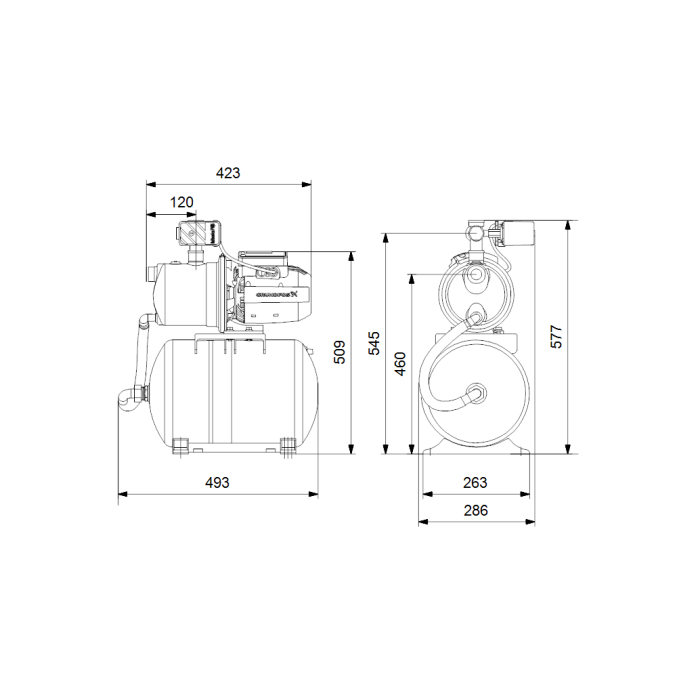

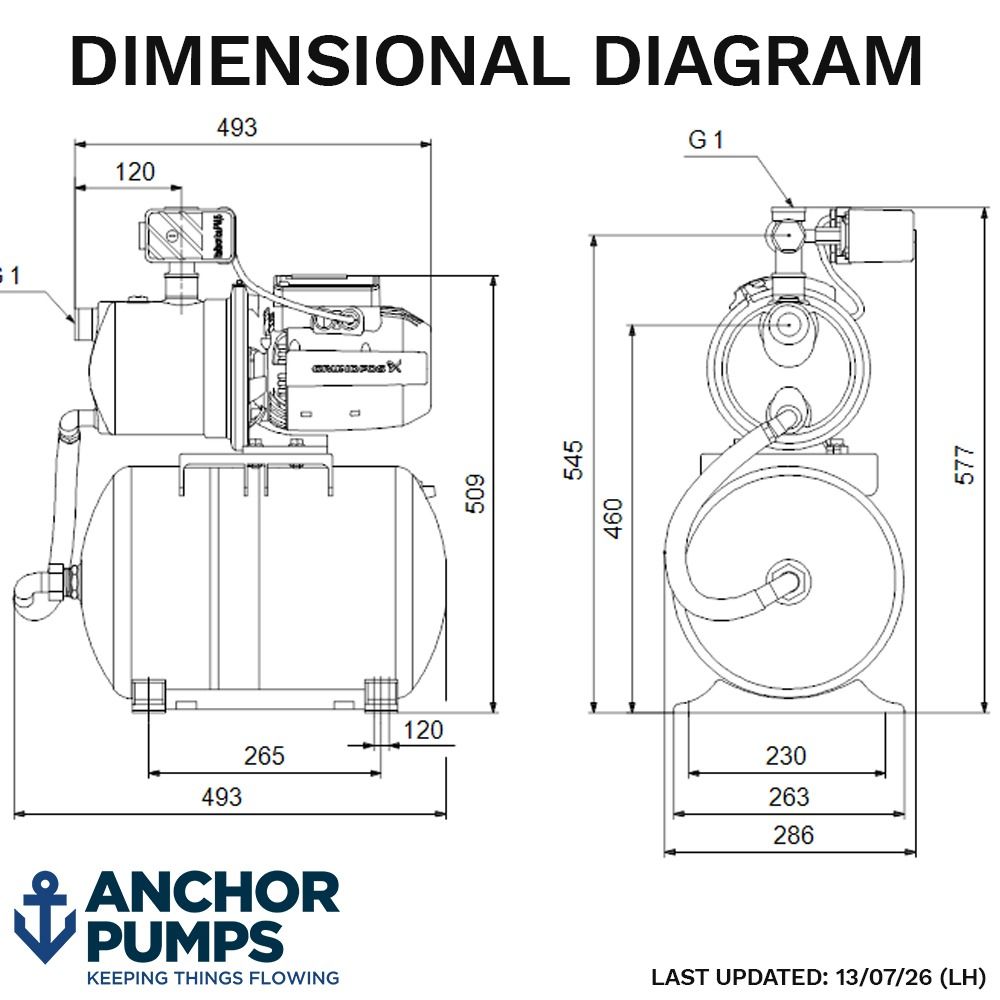

Dimensions (l)493 x (w)263mm x (h)509mm
Connection Type 1 Inch BSP Female
Motor Size 0.746 kW
Full Load Current (FLC) 5.1A
Voltage 240V 1Ph 50Hz
RPM 2850
Cable Length 1.5m

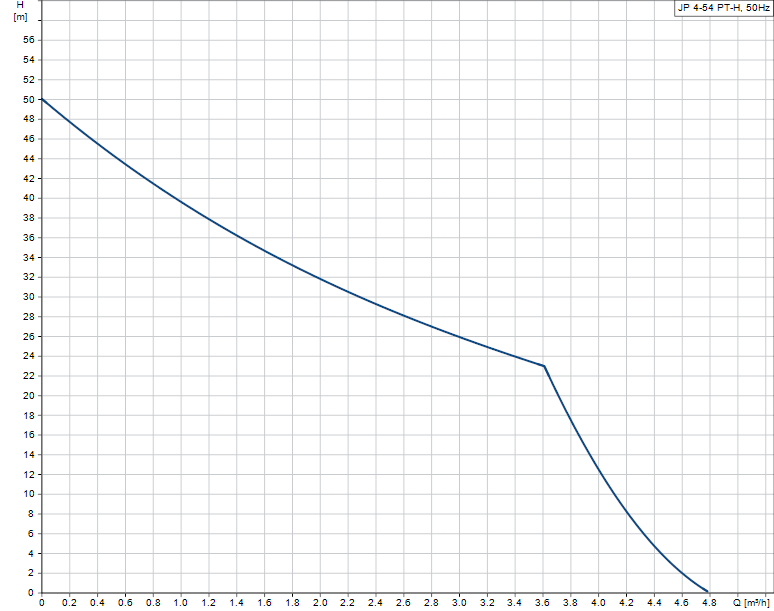

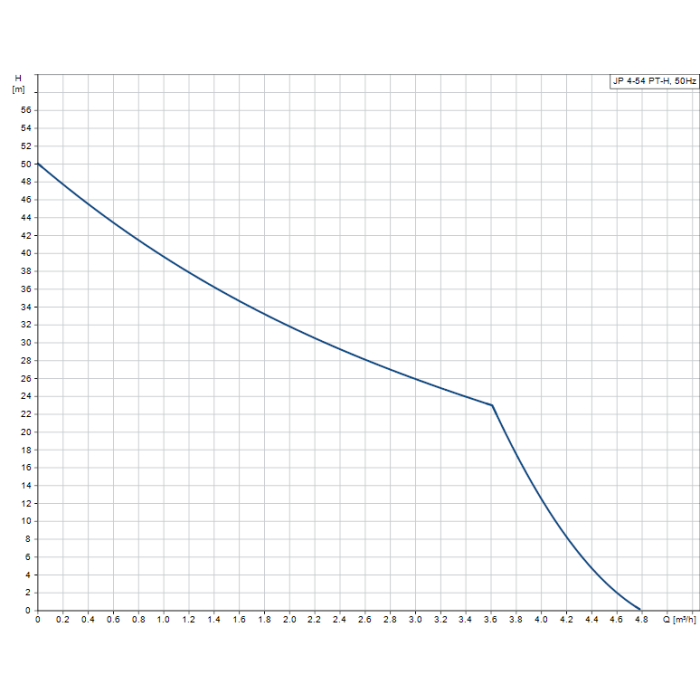

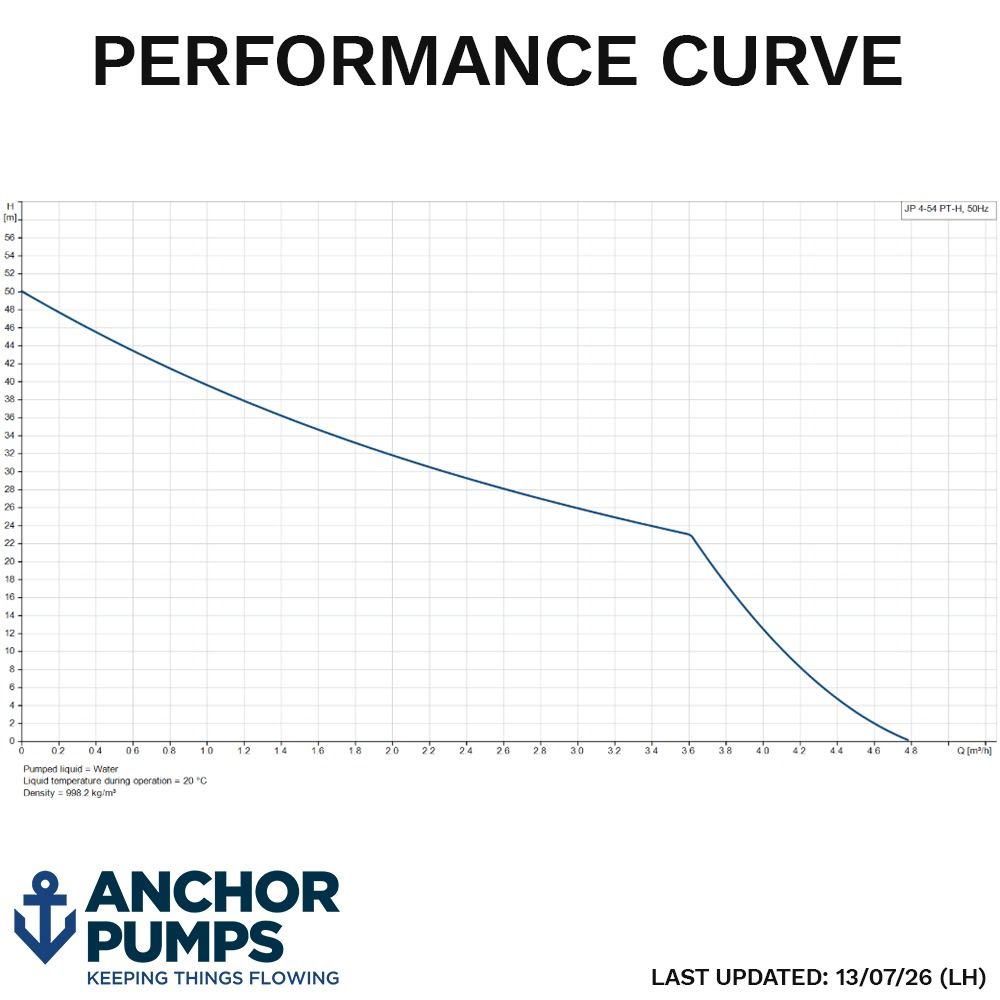

Max Flow 4 m3/hr
Max Head 54 mtr
Max Temperature 40°C
Material Stainless Steel
Seal Type Carbon, Resin Ceramic
Impeller Material Composite
