Grundfos JP4-47 Vertical Tank Self Priming Booster Set 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos JP4-47 Vertical Tank Self Priming Booster Set 240v - 99463879

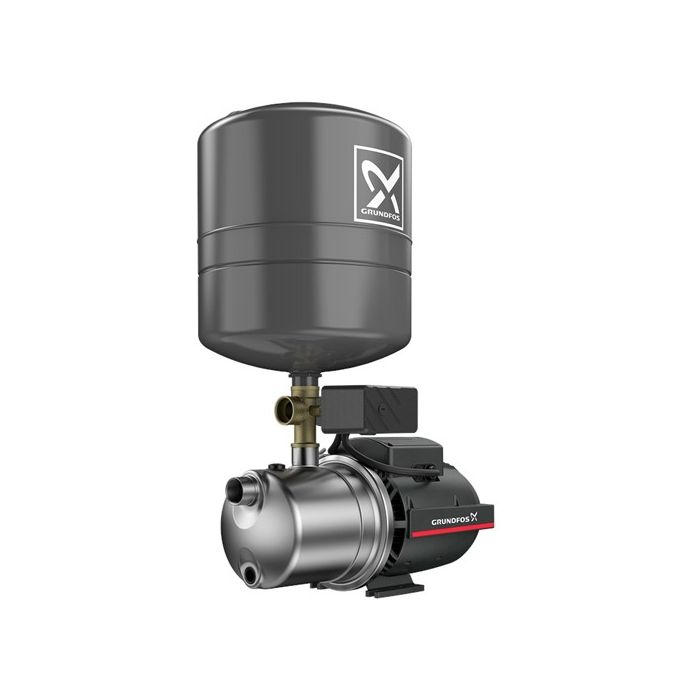

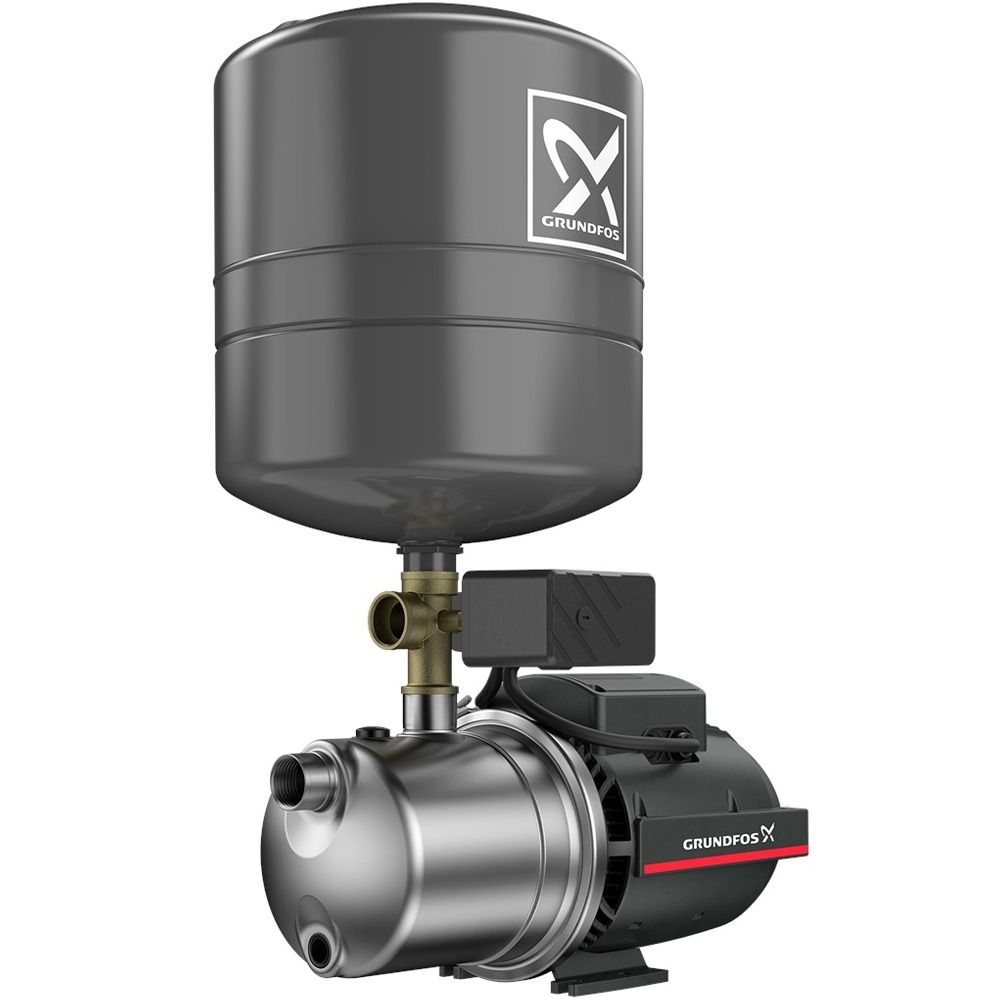

Grundfos JP 4-47 PT-V consists of a Grundfos JP pump, a pressure switch, a pressure gauge and a Grundfos GT-H 18-litre vertical diaphragm pressure tank. The pressure tank reduces water hammer in the pipes.
The JP 4-47 PT-V provides the comfort of constant water pressure with automatic start and stop. This is controlled by the pressure switch and pressure tank combined ensuring optimal start and stop of the booster set according to demand. The pressure tank limits the number of start and stop routines as water stored in the tank can be used without starting the pump in cases of low water consumption or leakage loss. The cut-in pressure is set to 2.2 bar.
The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction lift of up to 8 metres. The self-priming pump also ensures stable operation as it is able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches fully-primed pumping condition.
The JP 4-47 PT-V booster set has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.

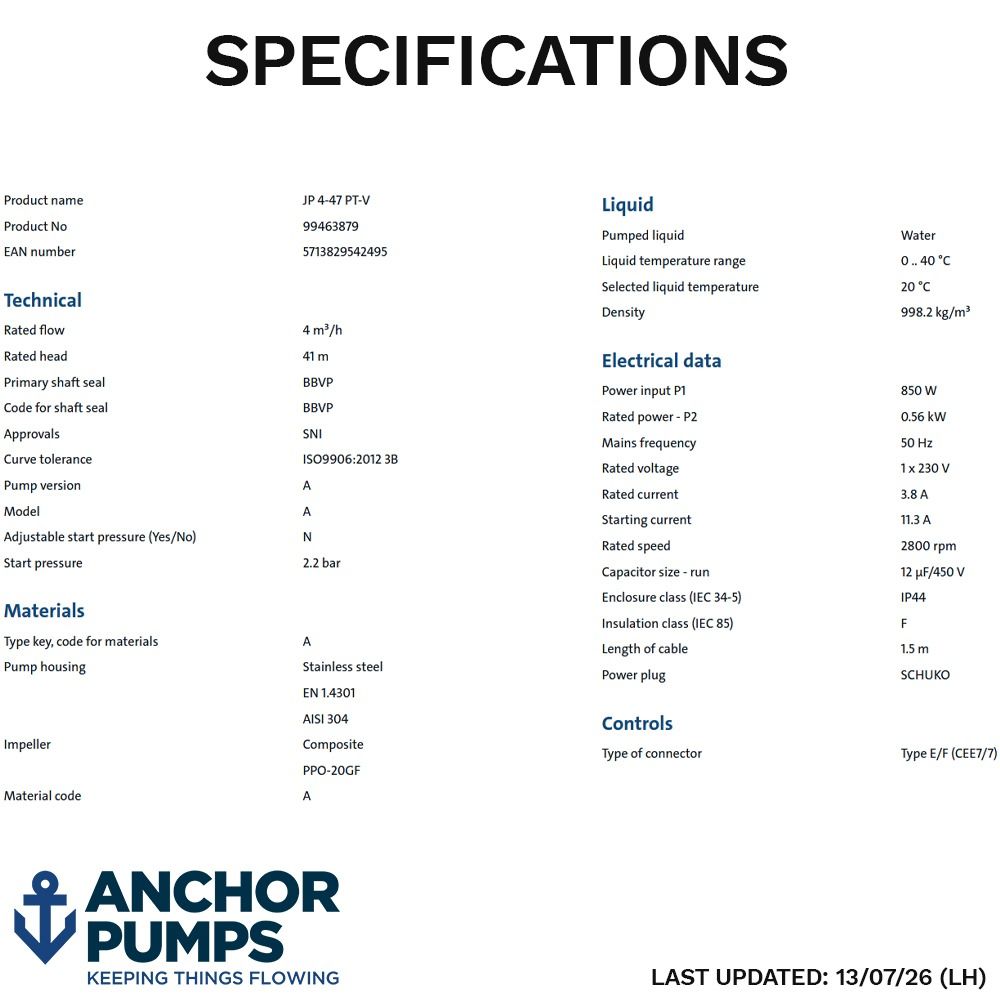

| SKU | 99463879 |
|---|---|
| Manufacturers | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5713829542495 |
| Weight | 15.8 Kg |

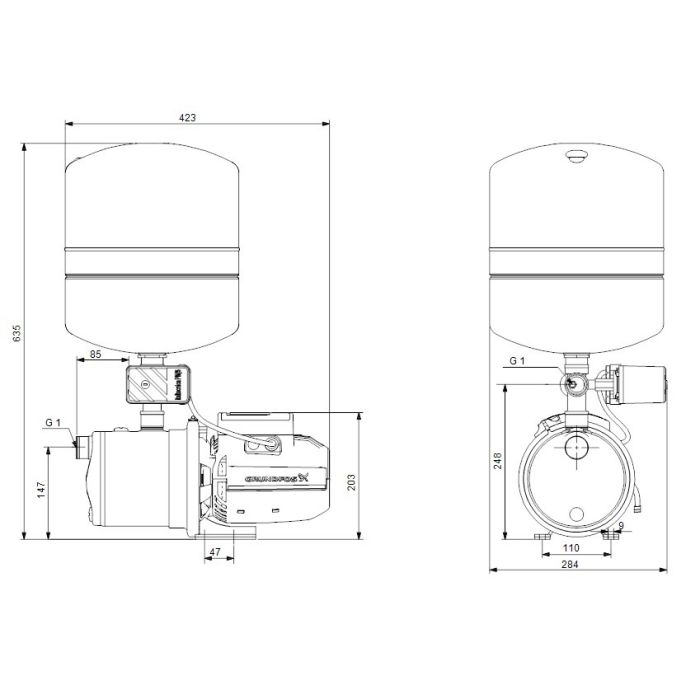

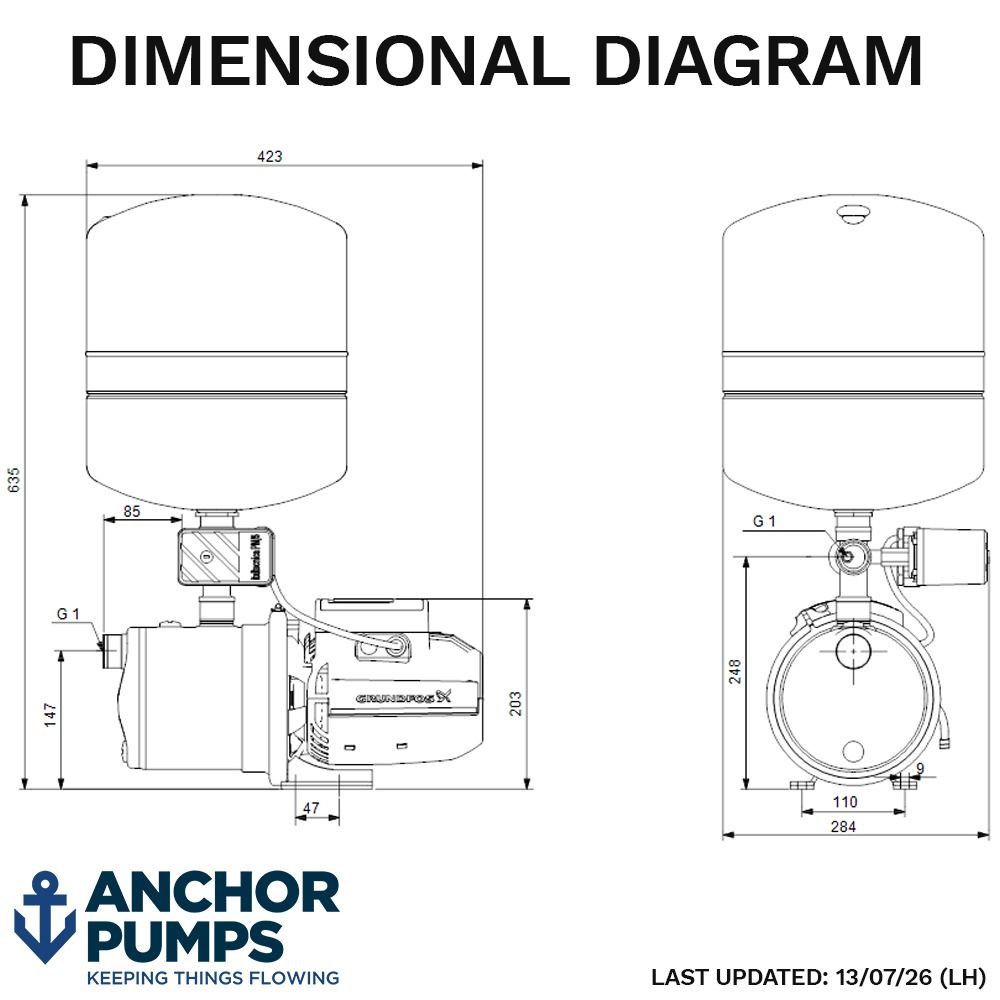

| Dimensions | 635mm (h) x 284mm (w) x 423mm (l) |
| Connection Type | 1 Inch BSP Female |
| Motor Size | 850W |
| Full Load Current (FLC) | 3.8A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 4.5m3/hr |
| Max Head | 42m |
| Max Temperature | 40°C |
| Material | Stainless Steel |
| Impeller Material | Composite |
