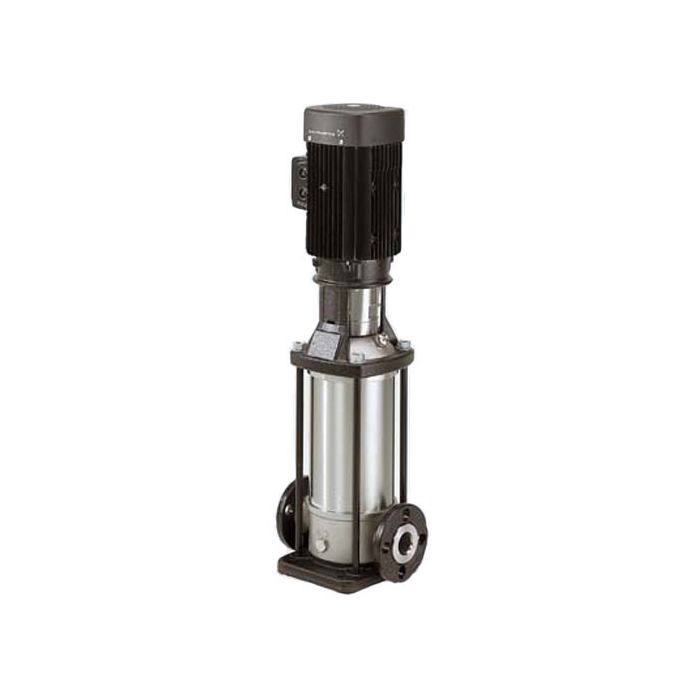

Grundfos CRI 5-22 A FGJ I V HQQV 4.0kW Vertical Multi-Stage Pump 415V (Replaces CR 4-160)

Name: Grundfos CRI 5-22 A FGJ I V HQQV 4.0kW Vertical Multi-Stage Pump 415V (Replaces CR 4-160)
Brand: Grundfos
SKU: 96528038
Price: 1904 GBP
Availability: InStock

SKU

96528038

MRRP £2,720.00 + VAT Our price £1,904.00 (+ VAT) Incl. VAT: £2284.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos CRI 5 Pumps are Vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications. CRI 1s, 1, 3 and 5 pumps are supplied without pipe connections.

CRI models (FGJ) are DIN flanged as standard and are supplied without counter flanges.

More Information
SKU	96528038
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700397108376
Weight	68.9 Kg
Dimensions	1221mm (h) x 250mm (w) x 210mm (d)
Motor Size	4.0 kW
Full Load Current (FLC)	7.9A
Voltage	415V 3Ph 50Hz
Max Flow	8.5m3/hr
Max Head	158m
Material	Stainless Steel
Old Sku	96528038

Delivery & Returns

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £8.50 + vat for items under 35kgs. Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.

Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies. The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies. Please click here to view Returns information.

Reviews

Downloads

File Downloads

CR (Atex Approved) Hazardous Substances

(Size: 801.2 KB)

CR Family Brochure

(Size: 2.2 MB)

CR, CRI, CRN Installation & Operation Manual

(Size: 3.1 MB)
