Grundfos CRI 3-2 A CA I V HQQV 0.37kW Vertical Multi-Stage Pump 415V (Replaces CR 2 Model)

Name: Grundfos CRI 3-2 A CA I V HQQV 0.37kW Vertical Multi-Stage Pump 415V (Replaces CR 2 Model)
Brand: Grundfos
SKU: 96516743
Price: 692 GBP
Availability: InStock

SKU

96516743

MRRP £988.00 + VAT Our price £692.00 (+ VAT) Incl. VAT: £830.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos CRI 3 Pumps are Vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications. CRI 1s, 1, 3 & 5 pumps are supplied without pipe connections.

CRI models (FGJ) are DIN flanged as standard and are supplied without counter flanges.

CRI models (CA) require 2 x 2 Bolt Oval Flanges A1.

More Information
SKU	96516743
Manufacturers	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700396749105
Weight	19.1 Kg

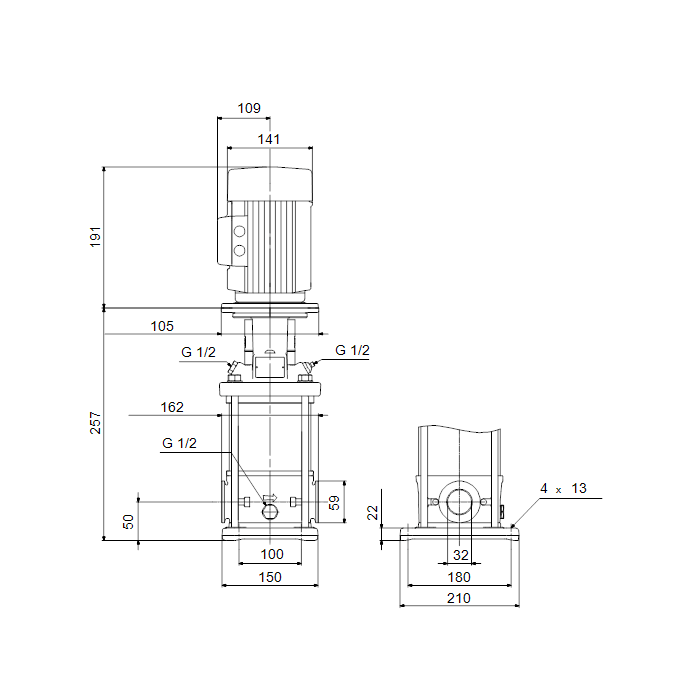

Dimensions	448mm (h) x 162mm (w) x 210mm (d)
Motor Size	0.37 kW
Full Load Current (FLC)	1,74/1,00 A
Voltage	415V 3Ph 50Hz
Max Flow	4.5m3/h
Max Head	13m
Material	Stainless Steel
Old Sku	96516743
