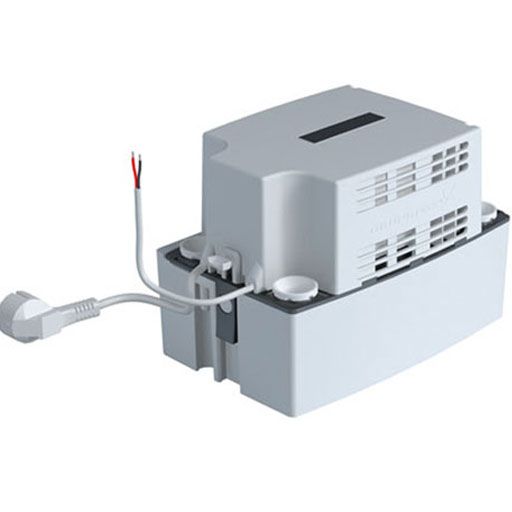

Grundfos Conlift1, Conlift2 and Conlift2 pH+ are suitable for the pumping of condensate which is collected below sewer level or which cannot flow to the sewage system or drain of the building by means of a natural downward slope.
- Condensate boilers. A 200 kW boiler can be drained up to 5 m duty point
- For condensate with a pH value above 2.5
- For condensate from air-conditioning systems, cooling and refrigeration systems, air dehumidifiers and evaporators
- For condensate with a pH value below 2.5, useConlift2 pH+
- Condensate runs by natural fall through a hose into the tank
- Liquid level in the tank is controlled automatically by a float switch
- Condensate is pumped through the discharge hose to the drain
- Safety overflow switch with a 1.7-metre electric cable which can be connected to the condensate boiler and set to stop the boiler in case of an alarm
- Maintenance-free shaded-pole motor
- Four inlets with grommets to seal and fix the inlet hose
- 180 °-rotatable flange for selection of optimum discharge position
- IP24 cover for protection against splashing water
- Two snap-fasteners enabling easy access to the tank in case of service
- Pump operation test button
- Stepped outlet socket for ∅8 and ∅10 mm hoses
- Non-return valve with bayonet connection for easy service
- Special inlet design preventing sedimentation and evaporation from boiler
- Stainless-steel motor shaft additionally protected by a shaft seal
- Self-venting hydraulics
- Rotating lip seal protecting bearing and motor against evaporation from tank
- Special float switch designed to prevent evaporation from tank and corrosion on micro switches
- Alignment wheel enabling easy adjustment in wall-hung installations
- Suitable for wall-hung and floor-standing installation
In order to protect the sewage system, we recommend the use of a neutralisation unit. The neutralisation unit is included in Conlift2 pH+ and is available as an
accessory for Conlift1 and Conlift2. Irrespective of the capability of the Conlift, local regulations may require the installation of a neutralisation unit, even for pH values of 2.5 or higher.
|Manufacturers Warranty||2 Years|
|Dimensions||183mm (h) x 165mm (w) x 258mm (d)|
|Motor Size||0.75 kW|
|Full Load Current (FLC)||0.65A|
|Voltage||240V 1Ph 50Hz|
|Max Flow||588 l/hr|
