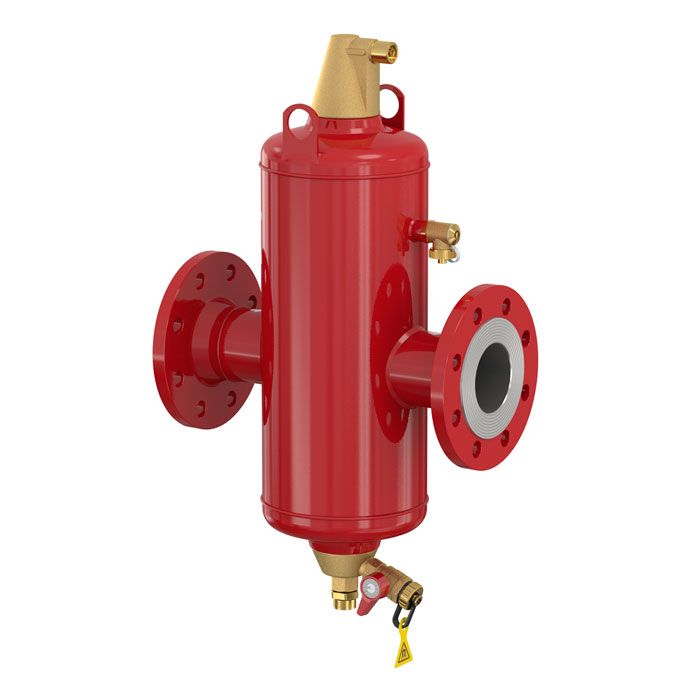

Flamcovent Clean Smart 300F - 12" Flanged Inline Air & Dirt Separator 10 Bar

SKU
31050
MRRP £12,894.00 + VAT Our price £9,026.00 (+ VAT) Incl. VAT: £10,831.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Optimum air and dirt separation combined with energy efficiency. For use in sealed heating and cooling systems. Air and dirt separators protect the boilers, pumps and fittings from damage caused by the deposit of dirt particles, increase comfort and improve the yield. Air and dirt separators also offer benefits in the event of application in old systems or when an open system is converted to a closed system.

  • Increases comfort and yield.
  • Prevents deposit of dirt particles in the boiler.
  • The removal of air and dirt from the system water extends the service life of pumps, control equipment and other system accessories.

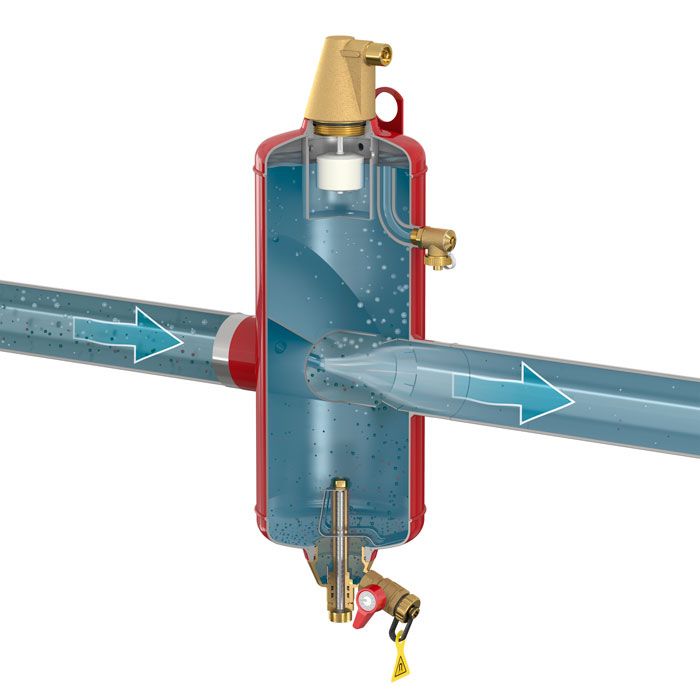

The new steel Flamcovent Clean Smart air and dirt separators remove even the tiniest microbubbles and minuscule dirt particles from the system water. The Flamco Clean Smart performs 60% better than conventional air and dirt separators whilst the flow resistance has been reduced to a negligible level.

  • With flanged connection according to EN 1092-1 PN16.
  • Up to 60% better performance compared to conventional air and dirt separators.
  • Extremely low flow resistance resulting in less energy consumption.
  • Standard flow speed up to 3 m/s.
  • Twenty-five neodymium supermagnets are incorporated into the dirt scraper.
  • Constant performance during the entire lifespan.Low maintenance.

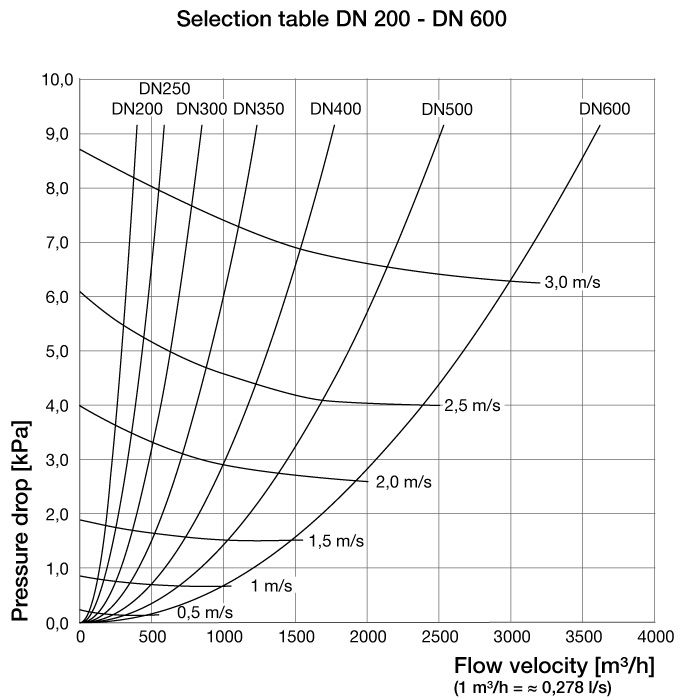

* Kv = Q / √ΔP   Q: Flow [m3/h]   ΔP: Pressure loss over the product [bar]
 Flow factor Kv: Rate of flow [m3/h] which results in a 1 bar pressure drop across the product. This is different then the maximum allowed flow rate of the product.

More Information
SKU 31050
Manufacturers Flamco
Manufacturers Warranty 1 Year
GTIN 08712874310506
Weight 200.0 Kg

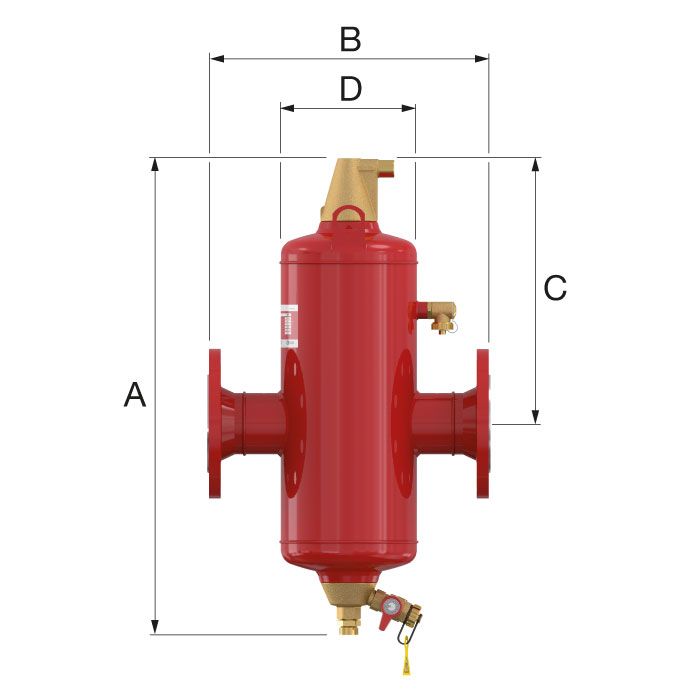

Dimensions A - 1784mm B - 1006mm C - 1032mm D - 600mm
Outer Diameter 323.9mm
Inner Diameter 12 Inch
Separator type Air & Dirt
Connection Type 12 Inch Flanged
Max Flow 890.44 m³/h
Max Pressure 10 Bar
Pressure Drop Over Product 1 Bar
Kv - Product Flow Rate 2830
Suitable For Cooling Yes
Suitable For Heating Yes
Suitable for Closed System Yes
Material Stainless Steel
Filter Mesh Density 0mm
Filter Volume 415L
Max Temperature Max Flow Temperature of 120 °C
Surface Protection Untreated
