Flamco Flexfiller Direct G4 Pressurisation Unit **This unit is a direct replacement for the Mikrofill 3**
* Available where Guaranteed Stock Icon Appears Below
Flamco Flexfiller Direct G4 Pressurisation Unit - 20100
**This unit is a direct replacement for the Mikrofill 3**
The Flexfiller Direct G4 is the latest in pumpless digital pressurisation technology for light commercial and residential buildings. It’s a slim, wall-mounted pumpless top-up pressurisation unit, with a top-up flow rate of up to 14 l/min depending on the mains or boosted mains, water pressure. It is designed to be connected directly to a building’s incoming water supply using the included flexible hose. It is there to fill and maintain the pressure of a heating or chilled water system without the need for a pump. The unit comes with a user-friendly controller that displays all operating and error conditions comprehensibly and conveniently. It features extensive data storage for online and offline analysis, microprocessor control, and self-learning algorithms with a graphical display. It comes with MODBUS RTU and BACnet communication protocols as standard and has its key operating parameters password protected.
Product Features:
- Silent, pumpless pressurisation unit.
- Fills system from empty.
- For system volumes up to 50,000 litres.
- Onscreen service reminder (12 months).
- Password protected.
- Pressure setting in 0.1 bar increments.
- Flood protection (Runtime limiter and excessive activation logging).
- Volt free contact: Common alarm (N/C or N/O), fully programmable for specific alarms customisable via control unit).
- Extensive data storage for online or offline analysis.
- Advanced technology ensures the lowest power consumption, long service life and easy maintenance.
- Microprocessor control, self-learning with graphical display.
- Max. flow rate of 14 l/min.
- Connects directly to the mains (boosted) water mains, via included flexible hose (L = 400 mm).
- Universal connection to drain fits 22 mm copper compression, 32 mm PP push fit and 32 mm PP solvent weld discharge pipe to BS 5254 or BS EN1451.
- The user-friendly control unit displays all operating and error conditions in an logical and convenient way.
- Four status LED indicators.
- System safety valve monitoring.
- Expansion vessel health monitoring.
- Leak detection.
- Usage monitor, logs and counters.
- MODBUS RTU and BACnet Communication Protocol via RS485.
- Two 40 cm flexible hoses (for mains and sealed system connection) included for easy installation.
| SKU | 20100 |
|---|---|
| Manufacturers | Flamco |
| Manufacturers Warranty | 2 Years |
| Weight | 4.0 Kg |

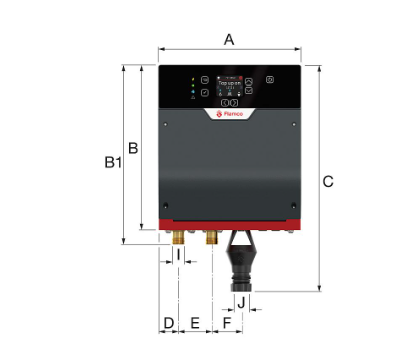

| Dimensions | 359mm (h) x 225mm (w) x 141mm (d) |
| Inlet Dimension | 15mm Compression |
| Discharge Dimension | 15mm Compression |
| Full Load Current (FLC) | 1A |
| Voltage | 110-240v 1ph 50-60hz |
| Max Flow | 14 l/min |
| Max Pressure | 0.7 - 6 bar |
| Max Temperature | Max. temperature at inlet 45 °C, Max. temperature at outlet 90 °C |
| Working Pressure | 10 Bar |
