Dreno Compatta 22TG Submersible Sewage Pump With Floatswitch 415v

Name: Dreno Compatta 22TG Submersible Sewage Pump With Floatswitch 415v
Brand: Dreno
SKU: 200-0023
Price: 618 GBP
Availability: InStock

SKU

200-0023

MRRP £772.00 + VAT Our price £618.00 (+ VAT) Incl. VAT: £741.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

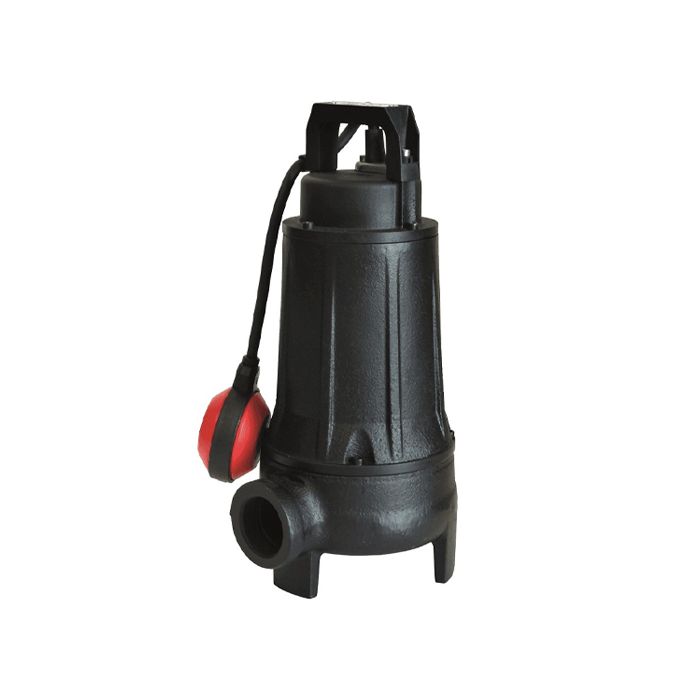

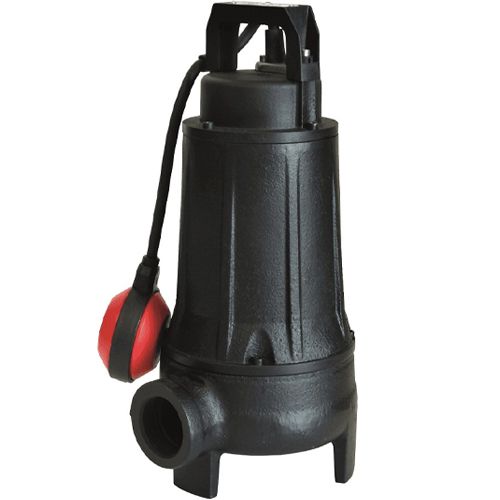

Dreno Compatta 22TG Submersible Sewage Pump With Floatswitch 415v

The main components are fabricated in cast iron GG20, in the standard configuration a lip seal is fitted to the motor side, and a mechanical seal to the impeller side. The Compatta Series is ideal to pump residential sewage thanks to its small size and mechanical characteristics. Maximum liquid temperature 40°C. Maximum depth of immersion 20 metres. Power cable 10 metres. Many of the Dreno pump ranges are available ATEX approved. Max solids 40mm.

Applications:

heavy duty
sewage
dirty water

More Information
SKU	200-0023
Weight	15.0 Kg
Dimensions	400mm (h) x 175mm (w) x 225mm (l)
Manufacturers	Dreno
Manufacturers Warranty	1 Year
Material	Cast Iron
Impeller Material	Cast Iron
Connection Type	2 Inch BSP Female
Voltage	415V 3Ph 50Hz
Max Flow	420 l/min
Max Head	8m
Full Load Current (FLC)	1.7A
Motor Size	0.56kW
Cable Length	10m
Float Switch	Yes
Immersion Depth	20 metres max

Delivery & Returns

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £8.50 + vat for items under 35kgs. Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.

Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies. The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies. Please click here to view Returns information.

Reviews

Downloads

File Downloads

Dreno Compatta & DNA User Manual

(Size: 3.6 MB)

Dreno Compatta Catalogue

(Size: 1.4 MB)

Dreno Compatta Data Sheet

(Size: 121.7 KB)
