DAB Quick Press
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.

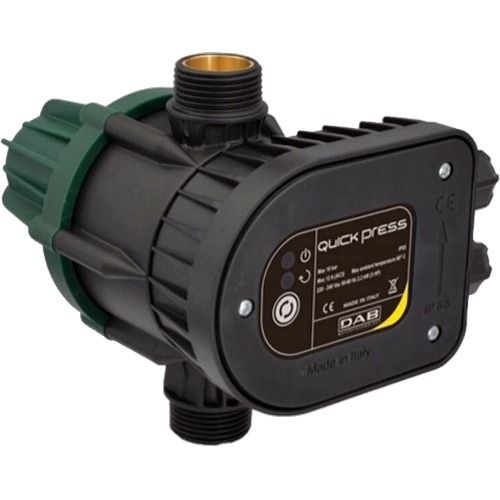

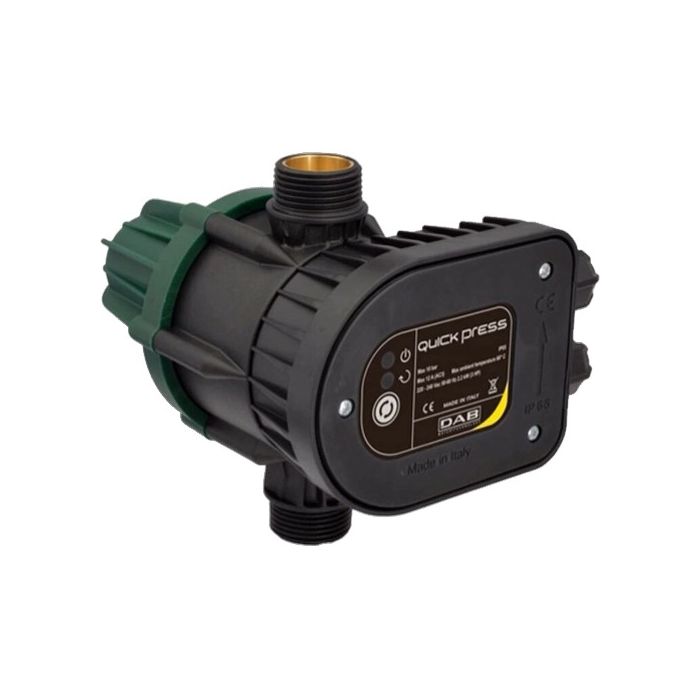

The DAB Quick Press is an on/off device designed to control the pump’s starting and stopping based on demand. It stops the pump when there is no water and protects it from dry running. It can be mounted on surface and submersible pumps alike. The compact device is reliable and designed, above all, for residential applications.
Quick Press can be mounted on the actual pump or between the pump and the first point of use. To put the device into operation, simply perform the wiring and supply power. From now on, Quick Press will start and stop the pump based on water demand (opening and closing). If there is a power outage, the unit restarts automatically when power is resumed. The pump to be paired with the Quick Press device must not only meet the system’s water demand, but must also produce 1.5 bar more pressure (with fixtures closed) than the Quick Press restart pressure. When there is a water demand, namely when fixtures are opened, Quick Press’s preset restart pressure (1.5 bar) must overcome the back pressure generated by the water column exerting pressure on the pump. Hence Quick Press’s restart pressure must be at least 0.5 bar higher than the back pressure generated by the height of the water column.
SKU | 60219664 |
---|---|
Manufacturers | DAB |
Manufacturers Warranty | 2 Years |
Weight | 2.0 Kg |
Connection Type | 1 Inch BSP Male |
Motor Size | 2200W |
Full Load Current (FLC) | 12A |
Voltage | 240V 1Ph 50Hz |
Max Pressure | 10 bar |
Max Temperature | 60°C |
Material | Plastic |
