DAB Nova UP 600MNA Submersible Pump 240v

SKU
60152310
MRRP £379.00 + VAT Our price £266.00 (+ VAT) Incl. VAT: £319.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

DAB Nova UP 600MNA Submersible Pump 240v - 60152310

APPLICATIONS

The vertical delivery draining submersible pump is suitable for domestic automatically operated fixed applications, for draining basements and garages that are subject to flooding. Thanks to its compact, easy to handle shape, it may also be used as a portable pump for emergencies such as lifting water from tanks or rivers, emptying swimming pools, fountains, excavations, and pedestrian subways. It is also ideal for gardening, and hobby applications in general. This pump can be used with liquids containing solid particles of up to 10 mm in size. The level switch allows fixed installation, ensuring automatic operation. With removable filter, it is capable of suction of up to a minimum of 2/3 mm (filter removed).

CONSTRUCTION FEATURES OF THE PUMP

Hydro resistant technopolymer pump body, cover, and suction grid. Stainless steel motor, roto shaft, and bolts and screws. Threefold seal with interposed rings with oil pre-chamber.

CONSTRUCTION FEATURES OF THE MOTOR

Submersible type continuous duty asynchronous motor. Stator enclosed in airtight stainless steel casing, with an outer cover that protects the wiring and the capacitor. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Built-in thermal-amperometric protection and permanently connected capacitor.

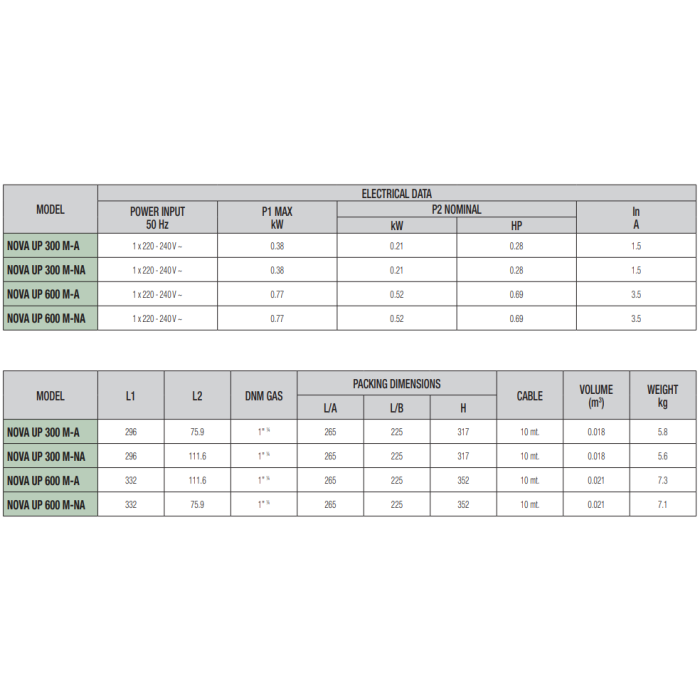

More Information
SKU 60152310
Weight 7.0 Kg
Dimensions 332mm (h) x 160mm (dia)
Manufacturers DAB
Manufacturers Warranty 2 Years
Material Plastic
Connection Type 1 1/4 Inch BSP
Voltage 240V 1Ph 50Hz
Max Flow 14m3/hr
Max Head 10m
Full Load Current (FLC) 3.5A
Motor Size 0.77kW
Cable Length 10m
