DAB Deep well pump stainless steel 304 1" female thread 2,4A 230VAC with 15m cable and control box booster type Micra 100M oil cooling

Name: DAB Deep well pump stainless steel 304 1" female thread 2,4A 230VAC with 15m cable and control box booster type Micra 100M oil cooling
Brand: DAB
SKU: 7030894
Price: 1206.63 GBP
Availability: InStock

SKU

7030894

£ £1,206.63 (+ VAT)

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

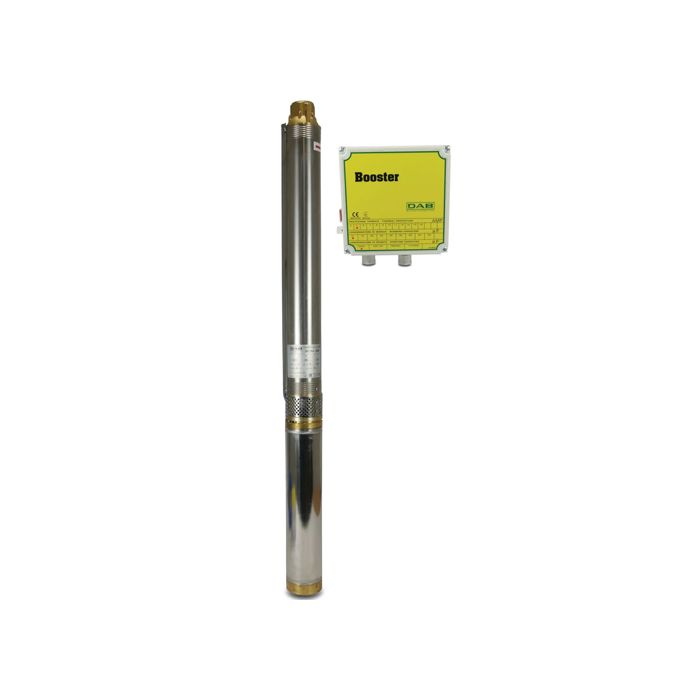

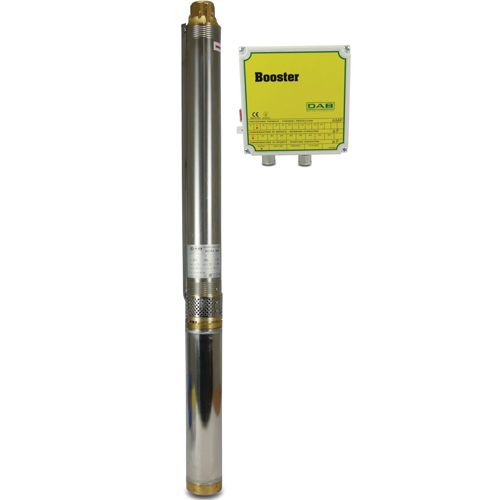

DAB Micra 100M 1" Deep Well Stainless Steel Pump With 15m Cable & Control Box 240v - 7030894

Submersible electric pumps for 3” wells or larger. These units have a very extensive range of applications for lifting and distribution in civil and industrial water systems, filling of pressure vessels and tanks, pressurization and irrigation systems. Multistage centrifugal type. Pump and motor directly coupled with rigid coupling. Impellers and thrust rings in Noryl and diffusers in self-lubricating polyacetyl. Pump liner, shaft and coupling, strainer and cable sheath in stainless steel. Base support and head in brass, with check valve incorporated in the head.

- Includes assembled 15m cable and control box booster.
- Pumped liquid: clean, free of solids and abrasives, non-viscous, non-aggressive, and chemically neutral, with properties similar to water.
- Maximum permitted amount of sand: 40 g/m3.
- Installation: in 3” wells or larger, tanks and cisterns, vertical position. In case of horizontal installation, ensure a minimum load on the thrust assembly.

More Information
SKU	7030894
Weight	14.4 Kg

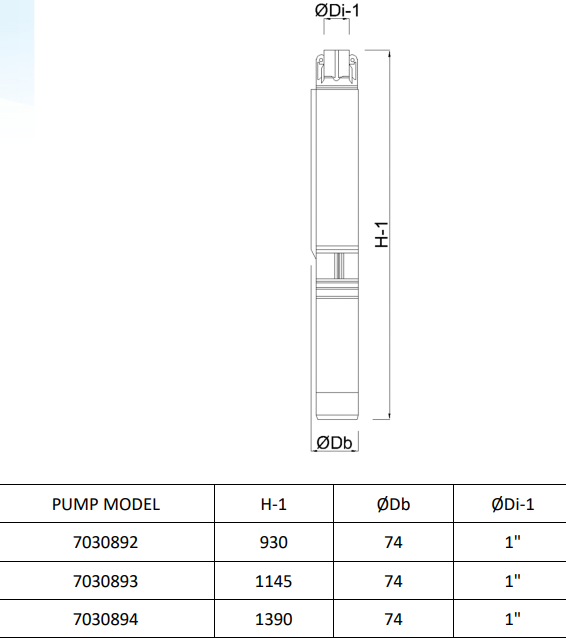

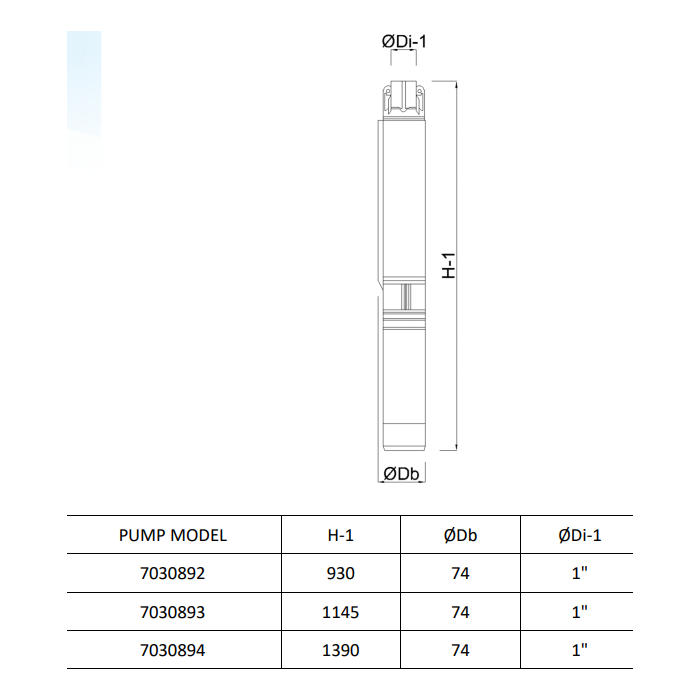

Dimensions	1390mm (h) x 74mm (dia)
Manufacturers	DAB
Max Temperature	35°C
