DAB KVCX 65-30 T 230/400/50 '01/8 IE3 Y17 Multi-Stage Centrifugal Pump 415v

SKU
60183590
MRRP £839.00 + VAT Our price £588.00 (+ VAT) Incl. VAT: £705.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Vertical multistage centrifugal pump suitable for small to medium user water systems. Suitable for pressurization units, filling of pressure vessels, sprinkler and watering systems, fire-fighting and washing systems, channelling of condensate and cooling water. Innovative and robust design.

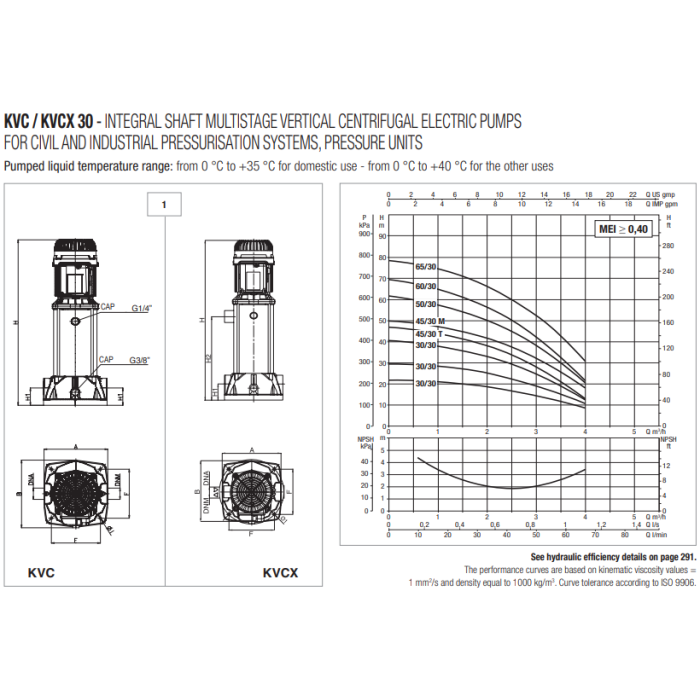

CONSTRUCTION FEATURES OF THE PUMP
KVC: Technopolymer delivery and suction bodies, and in-line suction and delivery ports with threaded metal insert.
KVCX: technopolymer suction body with threaded metal insert; stainless steel threaded delivery port on pump liner.
Impellers, diffuser bodies and diffusers in technopolymer, fully rust-proof. AISI 304 stainless steel pump liner, adjustment rings and seal disc. Carbon/ceramic mechanical seal, fitted on the AISI 303 stainless-steel drive shaft extension.

CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. Overload protection to be provided by the user for the three-phase version. Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41).

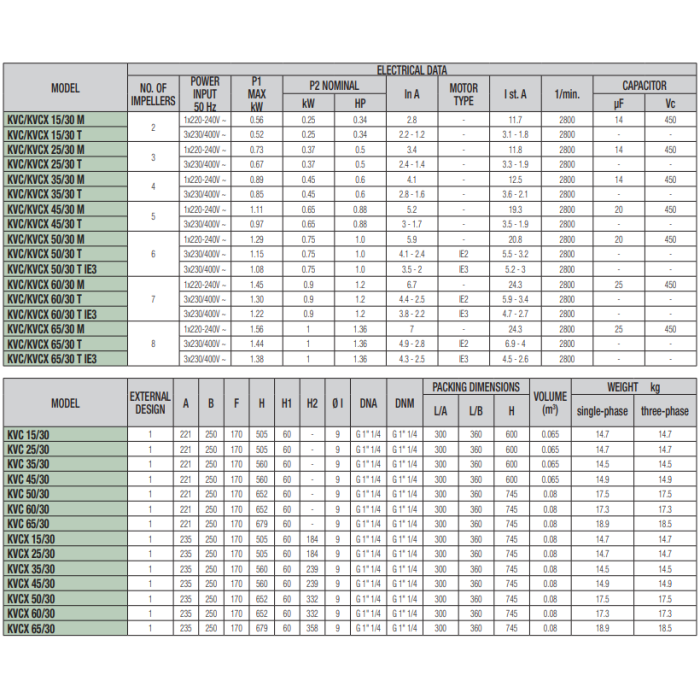

More Information
SKU 60183590
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 19.0 Kg
Dimensions 679mm (h) x 250mm (w) x 235mm (d)
Inlet Dimension 1 1/4" BSPF
Discharge Dimension 1 1/4" BSPF
Motor Size 1kW
Full Load Current (FLC) 4.3-2.5A
Voltage 415V 3Ph 50Hz
RPM 2800rpm
Max Flow 4m3/hr
Max Head 80m
Max Pressure 8 Bar
Max Temperature 40°C
Country of Manufacture Italy
