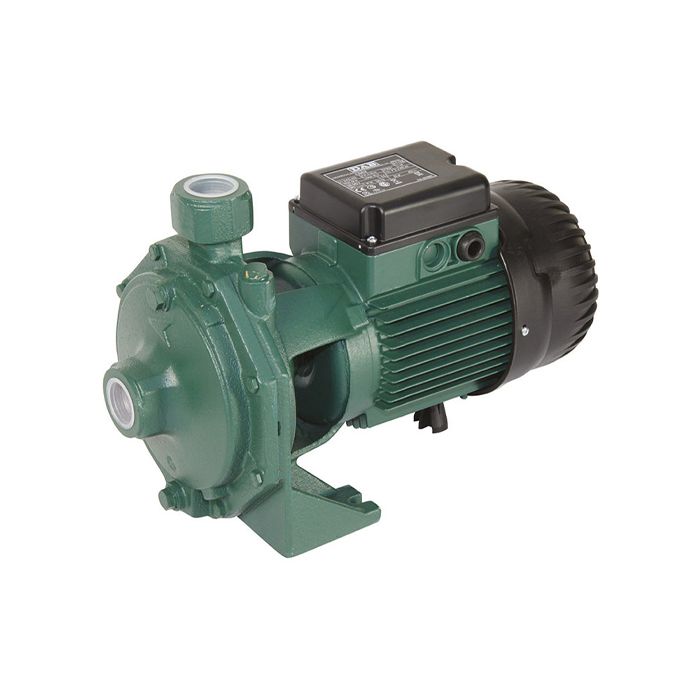

DAB K 70/400 T-IE3 Twin-Impeller Centrifugal Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Twin-impeller centrifugal pump designed for the realisation of pressurization units in water systems and filling of pressure vessels. Suitable for sprinkler systems and other general water supply uses.
CONSTRUCTION FEATURES OF THE PUMP
Pump body and motor support in cast iron.
Technopolymer impeller.
Carbon/ceramic mechanical seal.
CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.
Construction according to CEI 2-3.
IE2 motors as standard, from 0,75 kW to 5,5 kW - IE3 ≥ 7,5 kW
| SKU | 60167630 |
|---|---|
| Manufacturers | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 74.0 Kg |
| Dimensions | 340mm (h) x 635mm (w) x 270mm (d) |
| Inlet Dimension | 2" BSPF |
| Discharge Dimension | 1 1/4" BSPF |
| Motor Size | 9.2kW |
| Full Load Current (FLC) | 15.50A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2930rpm |
| Max Flow | 30m3/hr |
| Max Head | 85m |
| Max Pressure | 8.5 Bar |
| Max Temperature | 110 °C |
| Material | Cast Iron |
| Seal Type | Carbon/Ceramic |
| Impeller Material | Technopolymer |
| Country of Manufacture | Italy |
