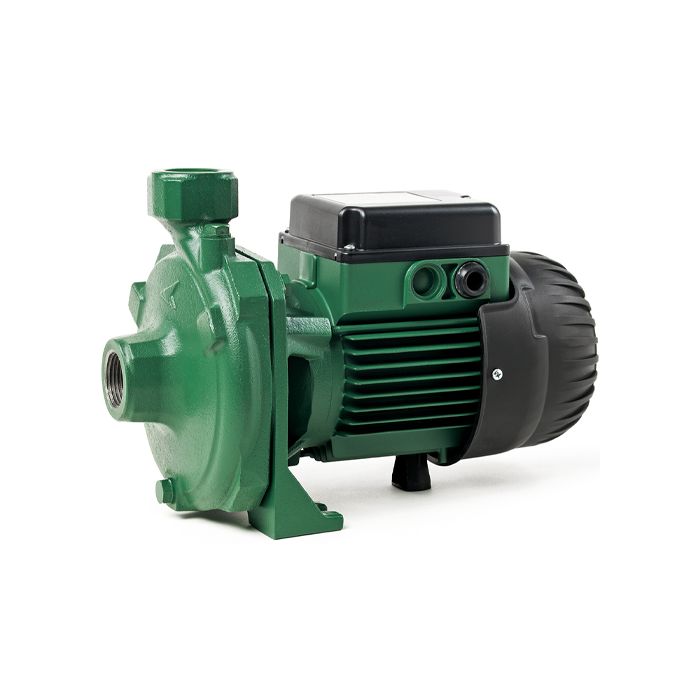

DAB K 36/100 T-IE3 Single-Impeller Centrifugal Pump 415v

SKU
60179861
MRRP £733.00 + VAT Our price £514.00 (+ VAT) Incl. VAT: £616.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Single-impeller centrifugal pump suitable for domestic, civil, industrial and agricultural systems, and for decanting, mixing and irrigation uses.

CONSTRUCTION FEATURES OF THE PUMP
Pump body and motor support in cast iron.
Technopolymer or cast iron impeller, as per the TECHNICAL DATA table.
Carbon/ceramic mechanical seal.

CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling.
Rotor running on ball bearings, oversized to ensure low noise and durability.
Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.
For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.
Construction according to CEI 2-3.
IE2 motors as standard, from 0,75 kW to 5,5 kW - IE3 ≥ 7,5 kW

More Information
SKU 60179861
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 23.0 Kg
Dimensions 255mm (h) x 333mm (w) x 200mm (d)
Inlet Dimension 1 1/2" BSPF
Discharge Dimension 1" BSPF
Motor Size 1.85kW
Full Load Current (FLC) 6.9-4A
Voltage 415V 3Ph 50Hz
RPM 2870rpm
Max Flow 11m3/hr
Max Head 34m
Max Pressure 3.4 Bar
Max Temperature 50°C
Material Cast Iron
