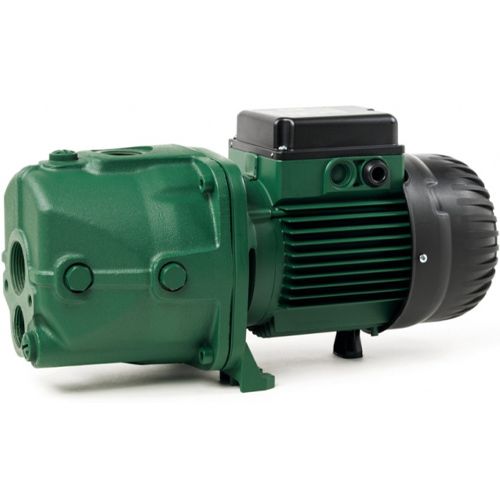

DAB DP 82 M Self-Priming Pump 240v

SKU
102660860
MRRP £300.00 + VAT Our price £210.00 (+ VAT) Incl. VAT: £252.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Self priming centrifugal pump for suction up to 27 metres, reached by using the ejector to be inserted in wells from 4” in diameter or larger. Used for water supply in large country homes and small farms.

CONSTRUCTIONAL FEATURES OF THE PUMP
Pump: Cast-iron pump body and motor support. Impeller and diffuser in technopolymer.
Stainless steel wear ring. Carbon/ceramic mechanical seal.
Ejector: Body in cast iron Venturi tube in technopolymer A and nozzle in brass
The ejector is available in three models (E 20 - E 25 - E 30) depending on the performance required. **Please note that the ejector is not included and must be purchased from the related accessories section.**

CONSTRUCTIONAL FEATURES OF THE MOTOR
Rotor mounted on oversized greased-for-life ball bearings. Incorporated thermo-amperometric protection and permanently inserted capacitor in the
single phase version. It is recommended to use remote overload protection for three phase motors, in compliance with current legislation. Manufactured
pursuant to CEI 61-69 (EN 60335-2-41).

More Information
SKU 102660860
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 11.0 Kg
Dimensions 194mm (h) x 377mm (w) x 175mm (d)
Inlet Dimension 1 1/4" BSPF
Discharge Dimension 1" BSPF
Motor Size 0.6kW
Full Load Current (FLC) 3.4A
Voltage 240V 1Ph 50Hz
Max Temperature 35°C
Material Cast Iron
