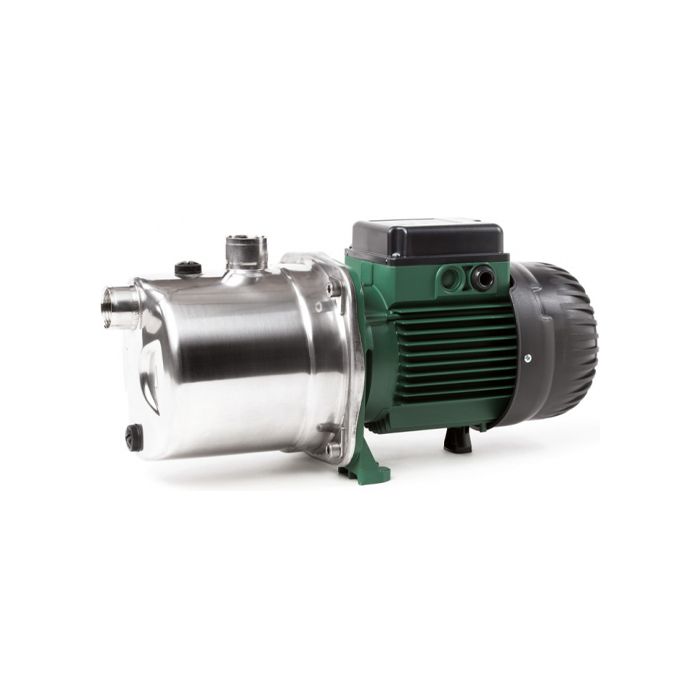

DAB JETINOX 132 M Self-Priming Pump 240v

SKU
102640100
MRRP £475.00 + VAT Our price £333.00 (+ VAT) Incl. VAT: £399.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Self priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Suitable for pumping water with low levels of sandy impurities. Especially used in domestic water supply installations. Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.

CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body, seal holder cover and wear ring in stainless steel.
Motor support in die cast aluminium.
Impeller, diffuser, venturi tube in technopolymer.
Carbon/ceramic mechanical seal.

CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous type, closed, with external air cooling.
Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
It is recommended to use overload protection for three phase motor protection, in compliance with current legislation.
Manufacture pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41) standard.

More Information
SKU 102640100
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 11.0 Kg
Dimensions 197mm (h) x 424mm (w) x 174mm (d)
Connection Type 1 Inch BSP Female
Motor Size 1kW
Full Load Current (FLC) 6.6A
Voltage 240V 1Ph 50Hz
Max Flow 5.4m3/hr
Max Head 48m
Max Pressure 4.8 Bar
Max Temperature 35°C
Material Stainless Steel
