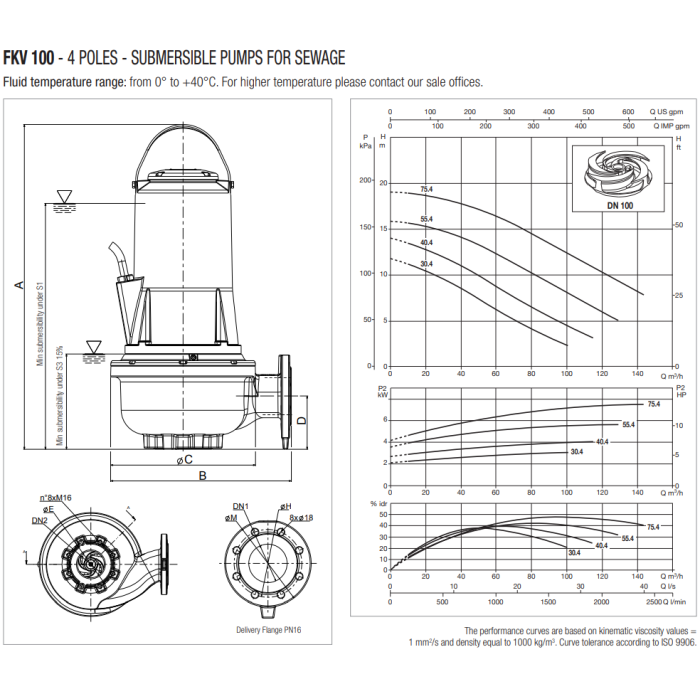

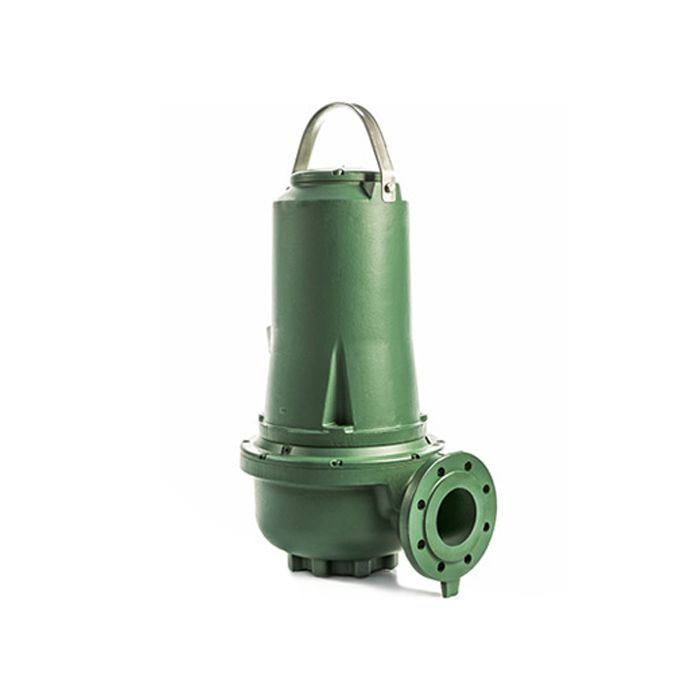

DAB FKV 100.55.4 T5 400Y/D S Submersible Wastewater Pump With Sensor 415v

SKU
60172172
MRRP £4,875.00 + VAT Our price £3,413.00 (+ VAT) Incl. VAT: £4,095.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Design for the pumping of wastewater and sewage from buildings and sites in private, commercial, industrial areas in accordance with European Standard EN 12050-1.

PUMP CONSTRUCTION
Vortex impeller with maximum solids handling with new no-clogging shape. Single-unit cartridge seal with double mechanical seals, SiC-SiC at the pump side, SiC-C at the motor side. All seals are independent of rotation direction. DN 65, DN 80, DN 100 radial slot EN 1092-1 flange discharge. Liquid Viscosity: 1mm2/s

MOTOR CONSTRUCTION
Premium Efficiency IE3, three-phase, squirrel-cage motor. Continuously S1 rated motor in submerged applications, or discontinuous S3 according to minimum levels. Seal monitoring by a moisture sensor in the seal chamber, which signals an inspection alert if there is leakage at the mechanical seals (optional). Bi-metallic switch in stator windings, with max temperature (150°C). Start-up: 1.1 - 4.0 kW = direct on line (DOL); 5.5 - 11.0 kW = star-delta (Y/∆). Lubricated-for-life bearings with a calculated lifetime of minimum 50,000 hrs.
Stainless steel shaft. Designed with high resistance fatigue fracture. Degree of protection: IP 68 Insulation class: F Max starting /hours: 20

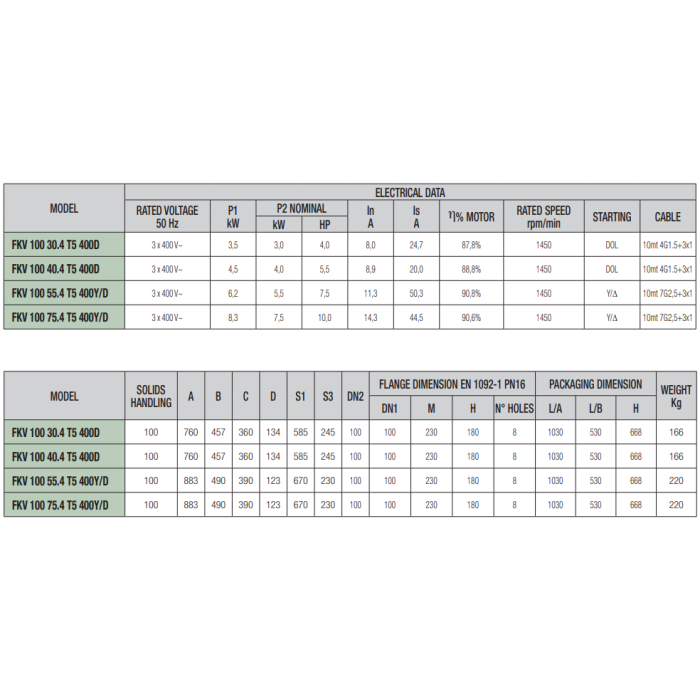

More Information
SKU 60172172
Weight 220.0 Kg
Dimensions 883mm (h) x 490mm (dia)
Manufacturers DAB
Manufacturers Warranty 2 Years
Material Cast Iron
Impeller Material Cast Iron
Connection Type 4 Inch Flanged
Voltage 415V 3Ph 50Hz
Max Flow 128m3/hr
Max Head 16m
Full Load Current (FLC) 11.3A
Motor Size 6.2kW
Cable Length 10m
Immersion Depth 20m
Country of Manufacture Italy
