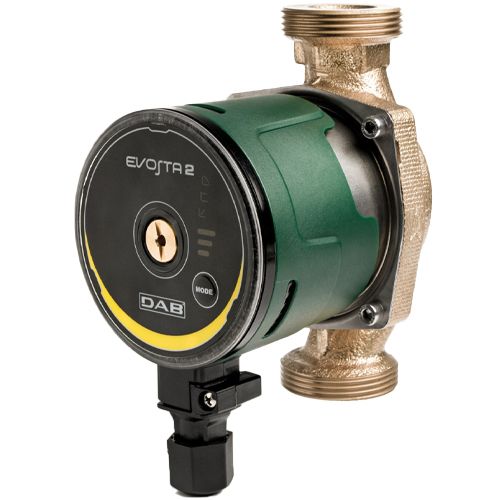

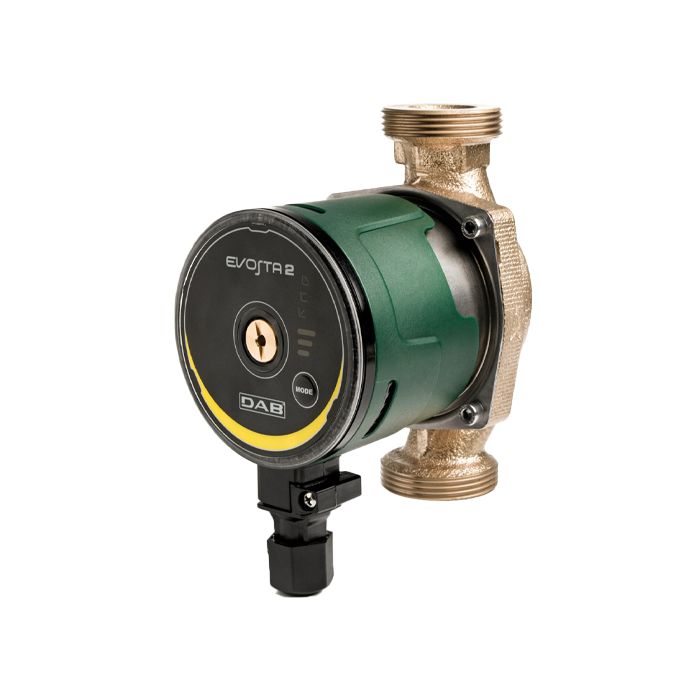

DAB Evosta2 SAN 40-70/150 (1") Domestic Heating Circulator Pump 240v

DAB Evosta2 SAN 40-70/150 (1") Domestic Heating Circulator Pump 240v - 60186164

APPLICATIONS
Low energy consumption electronic pump for domestic hot water circulation.

ADVANTAGES
The new range of EVOSTA 2 SAN circulators by DAB combines the strength of a mechanical circulator with the benefits of an electronic circulator. Thanks to the permanent magnet synchronous motor, the frequency converter, as well as the protection class IPX5 and the integrated bleeding plug. EVOSTA 2 SAN family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 2 SAN circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.

CONSTRUCTION FEATURES

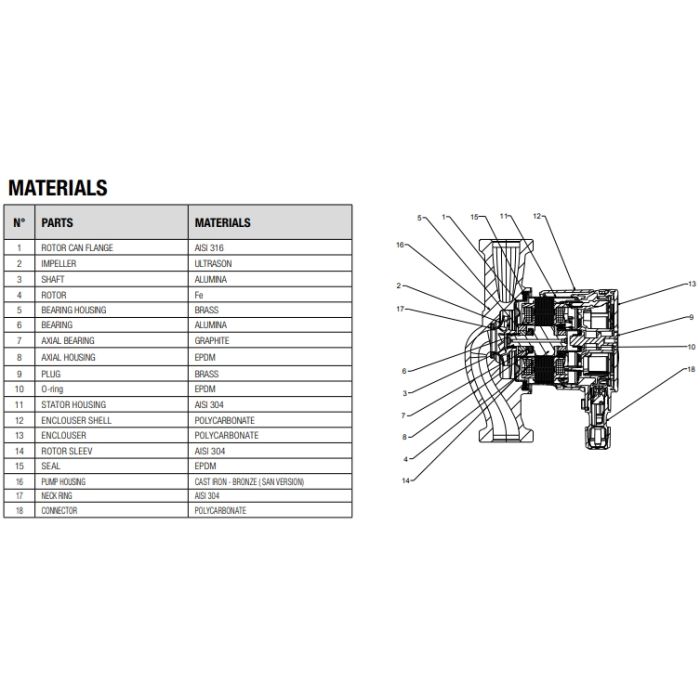

Bronze pump body and wet rotor motor. Steel motor casing, technopolymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor liner and closing flange. Graphite thrust ring. EPDM seal ring and brass air bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection.

CONTROL PANEL
The settings of EVOSTA 2 SAN circulators can be modified in the control panel on the facia of the pump. The pump has nine settings that can be selected scrolling the MODE button. Six illuminated segments on the display indicate the settings of the pump.
