DAB Evosta2 40-70/130 (1/2") Domestic Heating Circulator Pump

SKU
60186047
MRRP £272.00 + VAT Our price £191.00 (+ VAT) Incl. VAT: £229.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

DAB Evosta2 40-70/130 (1/2") Domestic Heating Circulator Pump - 60186047

APPLICATIONS

Low energy consumption electronic pump for water circulation in all types of domestic heating and cooling systems.

ADVANTAGES

The new range of EVOSTA 2 circulators by DAB combines the strength of an mechanical circulator with the benefits of the electronic circulator. Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI ≤ 0.18, as well as the protection class IPX5 and the integrated bleeding plug, the EVOSTA 2 family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 2 circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.

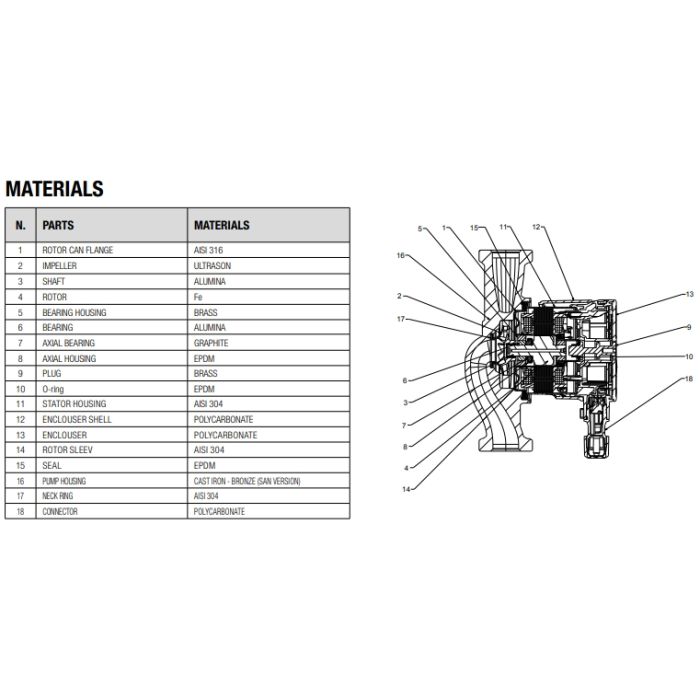

CONSTRUCTION FEATURES

Cast iron pump body with cataphoresis paint coating and wet rotor motor. Steel motor casing, techno polymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor liner, stator liner and closing flange. Graphite thrust ring. EPDM seal ring and brass bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection.

CONTROL PANEL

The settings of the EVOSTA 2, EVOSTA 3 circulators can be modified in the control panel on the facia of the pump device. The pumps have nine settings that can be selected scrolling the MODE button. Three LED lights on the facia show the current setting.

More Information
SKU 60186047
Manufacturers DAB
Manufacturers Warranty 5 Years
Weight 3.0 Kg

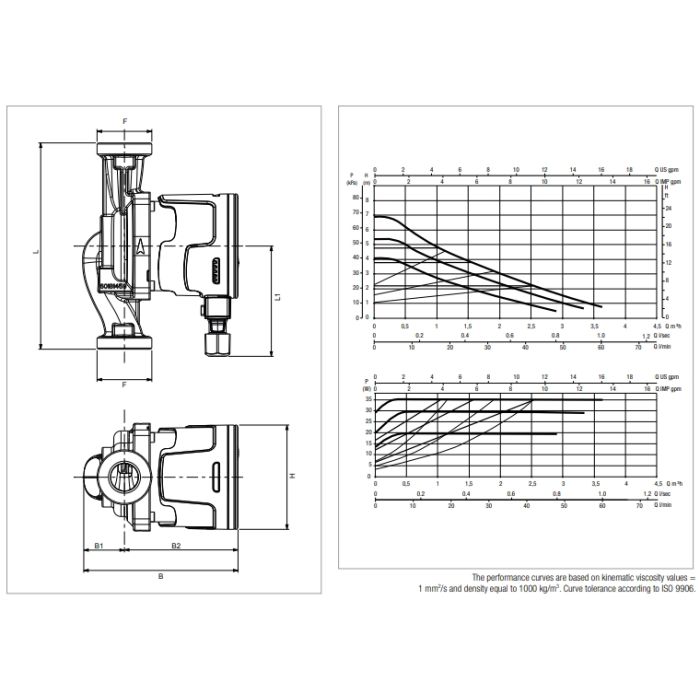

Dimensions 130mm (l) x 134.6mm (d) x 91mm (w)
Connection Type 1 Inch BSP Male
Motor Size 35W
Full Load Current (FLC) 0.043 - 0.32A
Voltage 240V 1Ph 50Hz
Cable Length 1.5m
Max Flow 3.6m3/hr
Max Head 7m
Max Pressure 0.7 Bar
Max Temperature 110°C
Material Cast Iron
Seal Type EPDM
Impeller Material Ultrason
Country of Manufacture Italy
