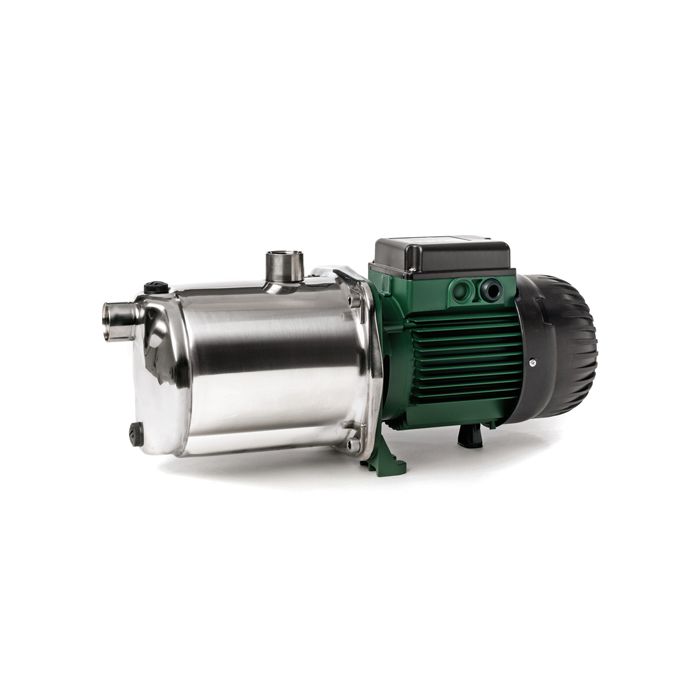

DAB EUROINOX 40/50 T-IE3 Multi-Stage Pump 415v

Name: DAB EUROINOX 40/50 T-IE3 Multi-Stage Pump 415v
Brand: DAB
SKU: 60179419
Price: 413 GBP
Availability: InStock

SKU

60179419

MRRP £589.00 + VAT Our price £413.00 (+ VAT) Incl. VAT: £495.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

APPLICATIONS
Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.

CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal.
Rotor shaft in AISI 304 stainless steel.
Impeller and diffuser bodies and diffuser in technopolymer.
Stainless steel wear ring.

CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous, continuous service motor.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
Overload protection to be provided by the user for the three-phase version.

More Information
SKU	60179419
Manufacturers	DAB
Manufacturers Warranty	2 Years
Weight	15.0 Kg
Dimensions	203mm (h) x 474mm (w) x 174mm (d)
Inlet Dimension	1" BSPF
Discharge Dimension	1" BSPF
Motor Size	0.75kW
Full Load Current (FLC)	3.8-2.2A
Voltage	415V 3Ph 50Hz
Max Flow	4.7m3/hr
Max Head	58m
Max Pressure	5.8 Bar
Max Temperature	35°C
Material	Stainless Steel
