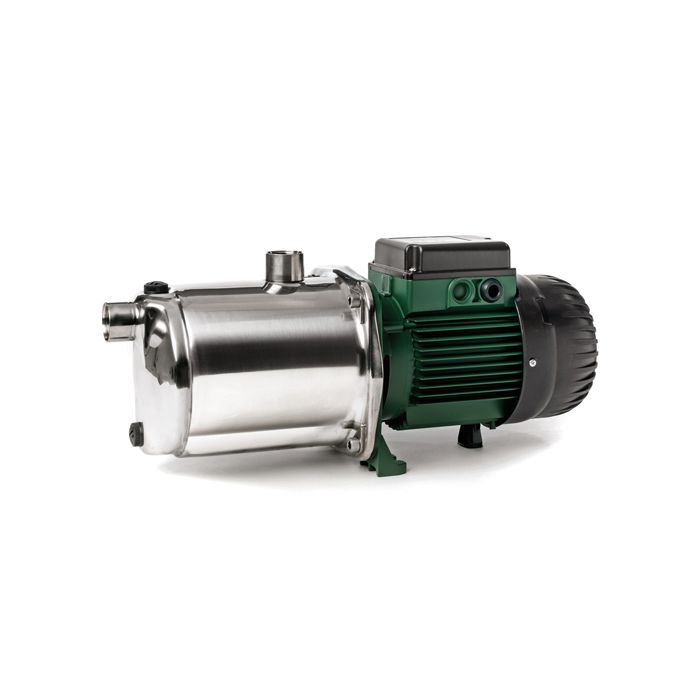

DAB EUROINOX 40/50 M Multi-Stage Pump 240v

SKU
102970280
MRRP £630.00 + VAT Our price £441.00 (+ VAT) Incl. VAT: £529.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.

CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal.
Rotor shaft in AISI 304 stainless steel.
Impeller and diffuser bodies and diffuser in technopolymer.
Stainless steel wear ring.

CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous, continuous service motor.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
Overload protection to be provided by the user for the three-phase version.

More Information
SKU 102970280
Manufacturers DAB
Manufacturers Warranty 2 Years
Weight 16.0 Kg
Dimensions 203mm (h) x 458mm (w) x 174mm (d)
Inlet Dimension 1" BSPF
Discharge Dimension 1" BSPF
Motor Size 0.75kW
Full Load Current (FLC) 5.3A
Voltage 240V 1Ph 50Hz
Max Flow 4.7m3/hr
Max Head 58m
Max Pressure 5.8 Bar
Max Temperature 35°C
Material Stainless Steel
