Grundfos CM 3-4 A-R-I-E-AVBE C-A-A-N Horizontal End-Suction Pump 240v [CC: 0118]
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
This is a Clearance Corner item - Please see details below
CC Overall Rating: A (270/300)
CC Stock Number: 0118
Product Code: 96934524
Manufacturer: Grundfos
Model: CM 3-4 A-R-I-E-AVBE C-A-A-N

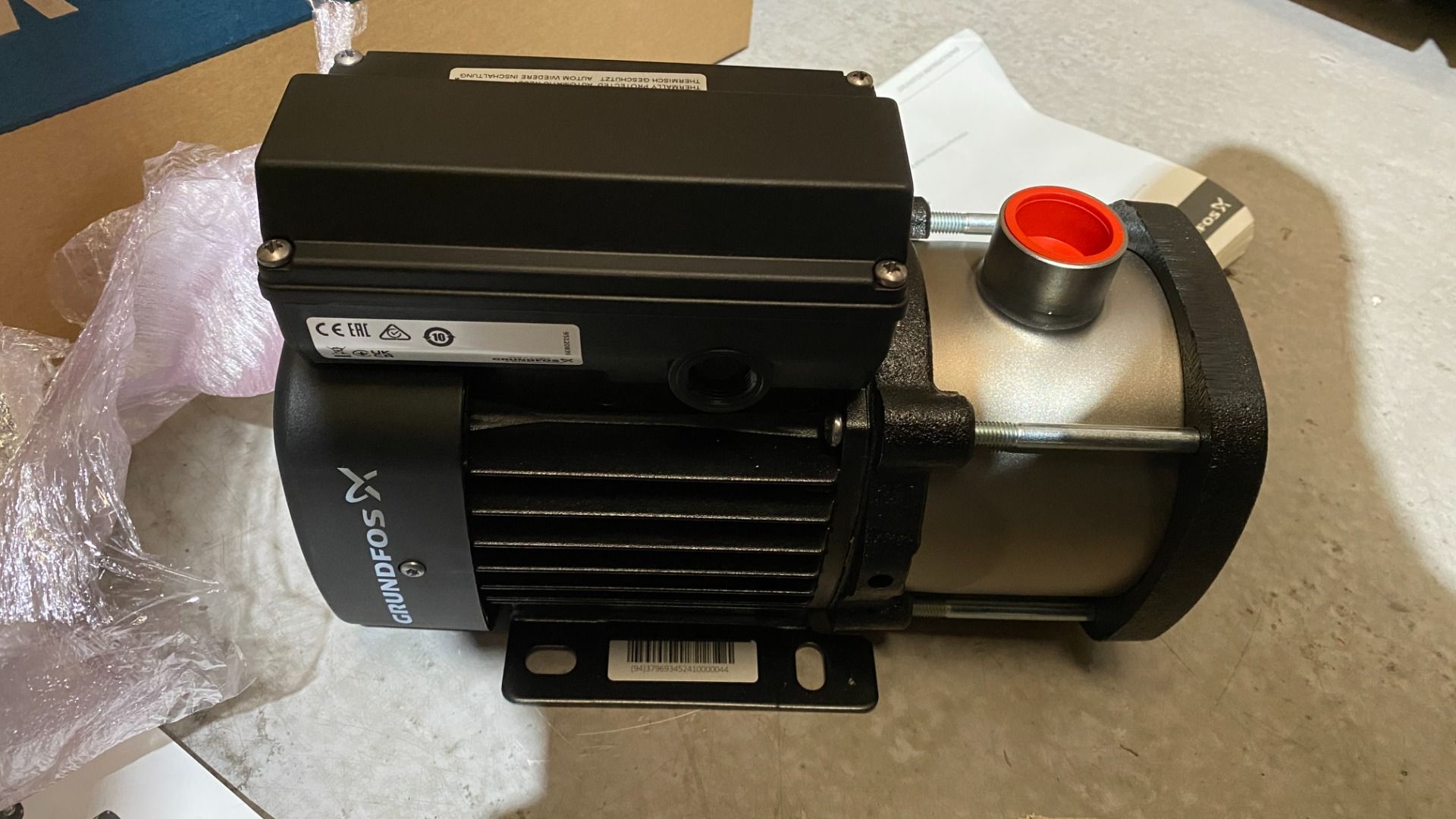

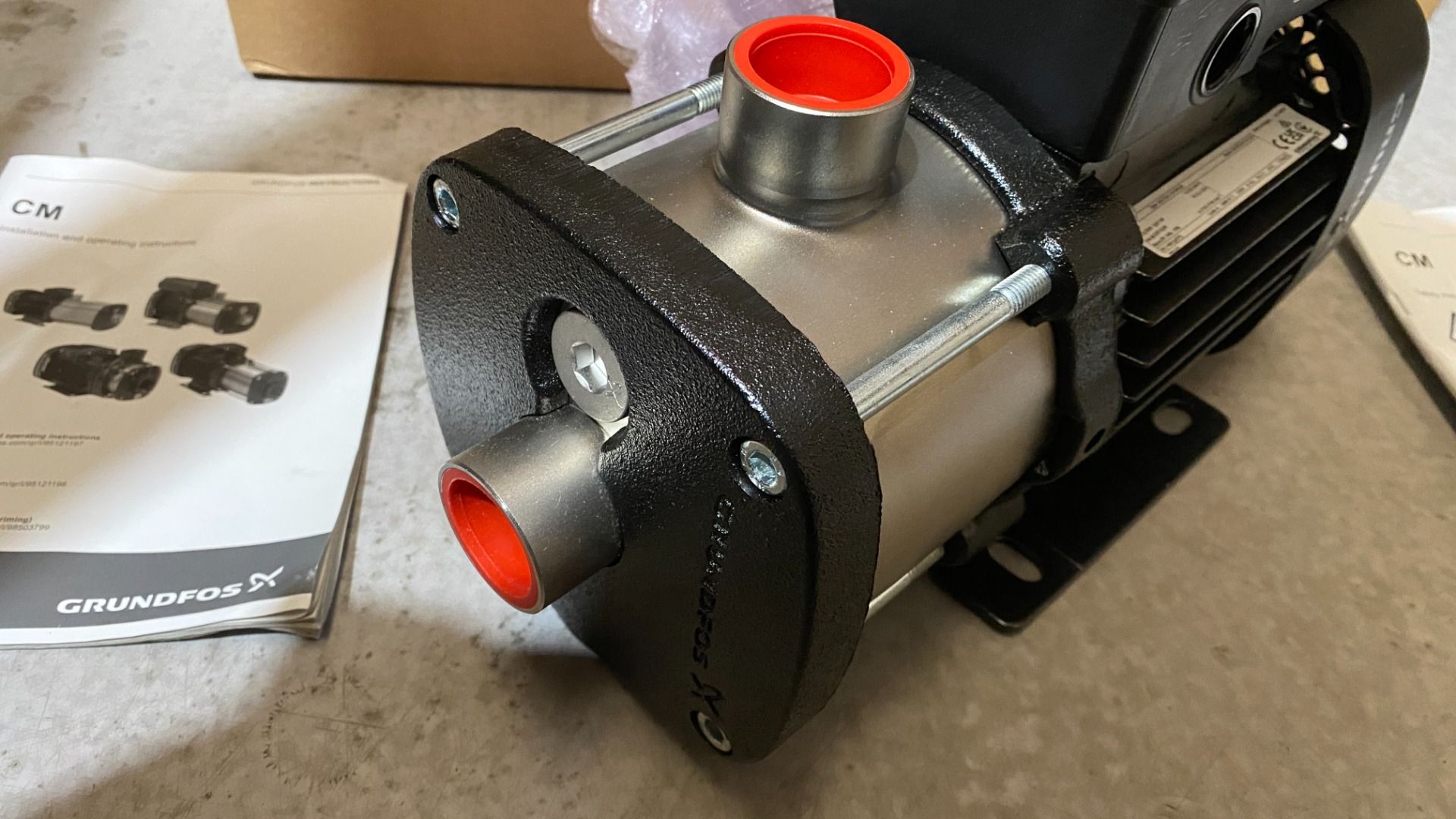

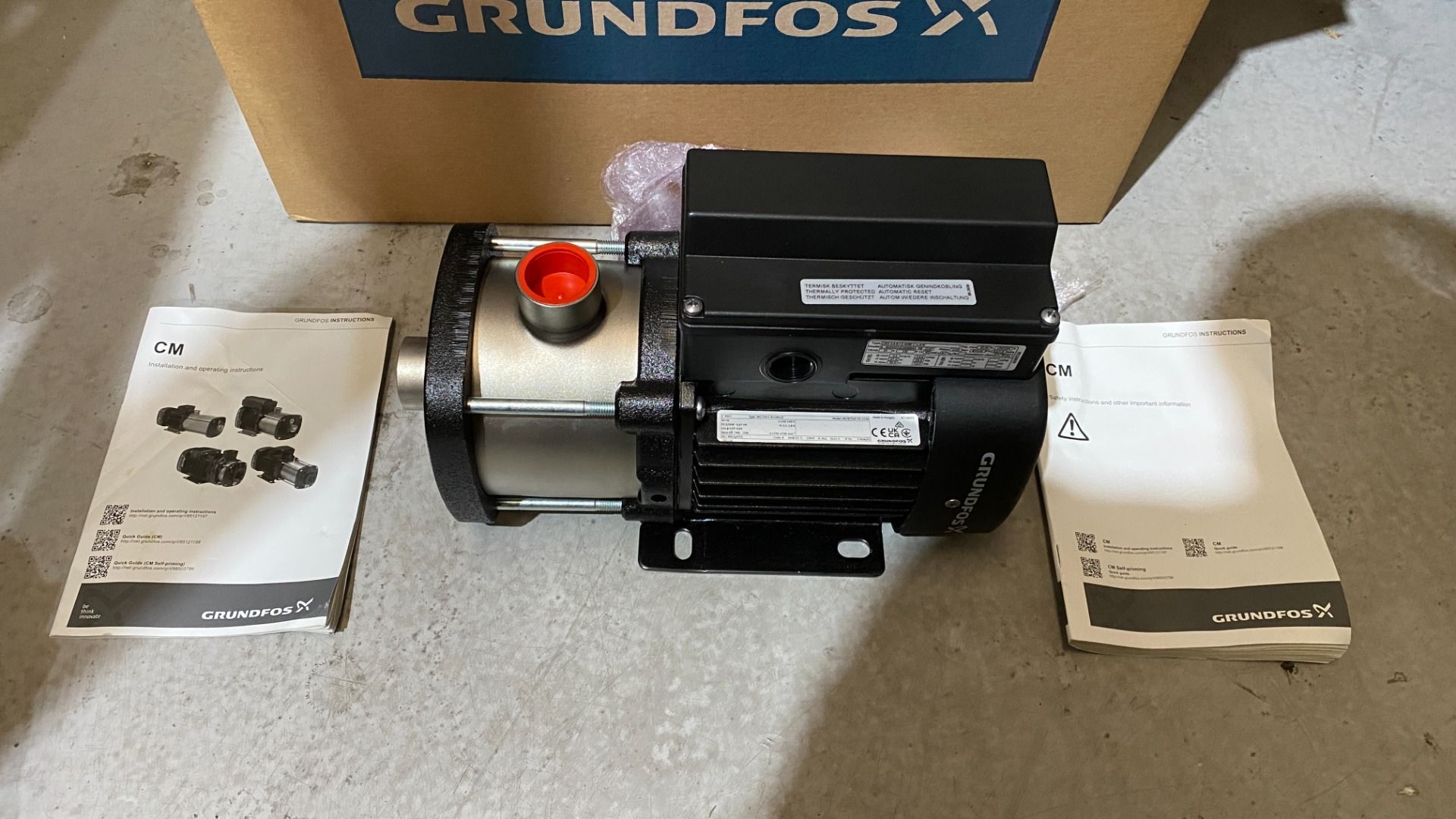

Comments: New pump, documentation included. Rare CM3-4 240v compact end-suction pump.
CC Signed In: 07/08/25
If you have any questions regarding this pump, please contact us on 01925 761 120 or email at lholmes@anchorpumps.com
----------------------------------------------------------------
CM 3-4 A-R-I-E-AVBE C-A-A-N

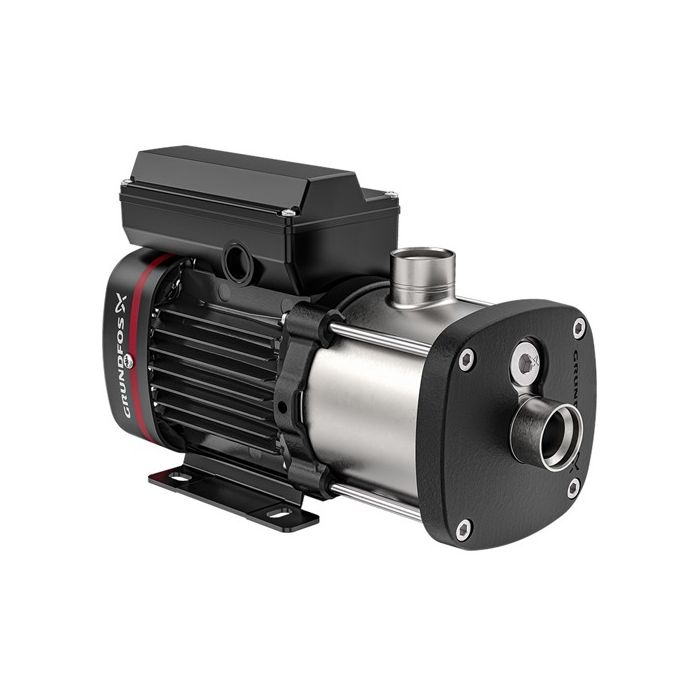

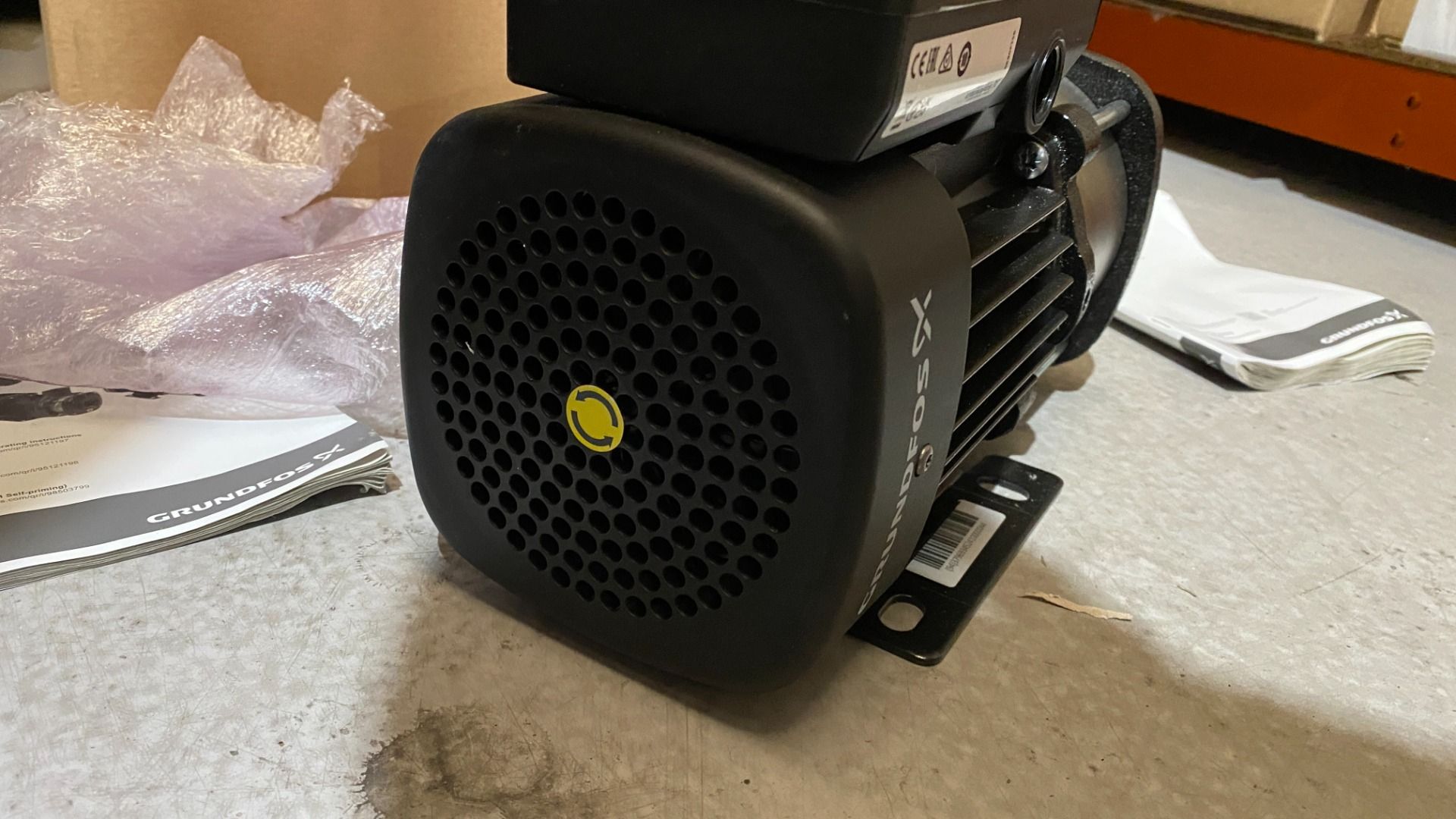

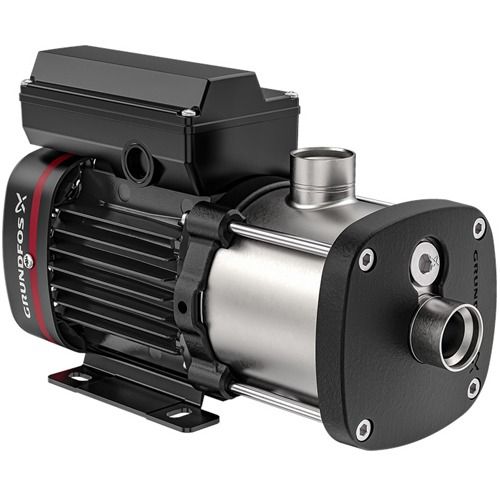

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 1-phase, foot-mounted, fan-cooled asynchronous motor.
| SKU | 96934524CC1 |
|---|---|
| Manufacturers | Grundfos |
| Clearance Corner Product Number | 0118 |
| Clearance Corner Signed In | Aug 7, 2025 |
| Clearance Corner Overall Rating | A - Excellent (250-300) |
| Item Condition | New |

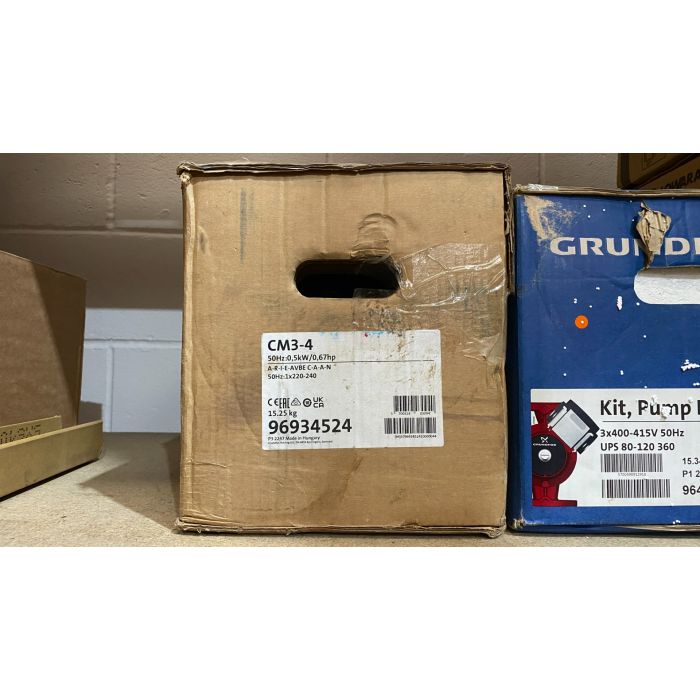

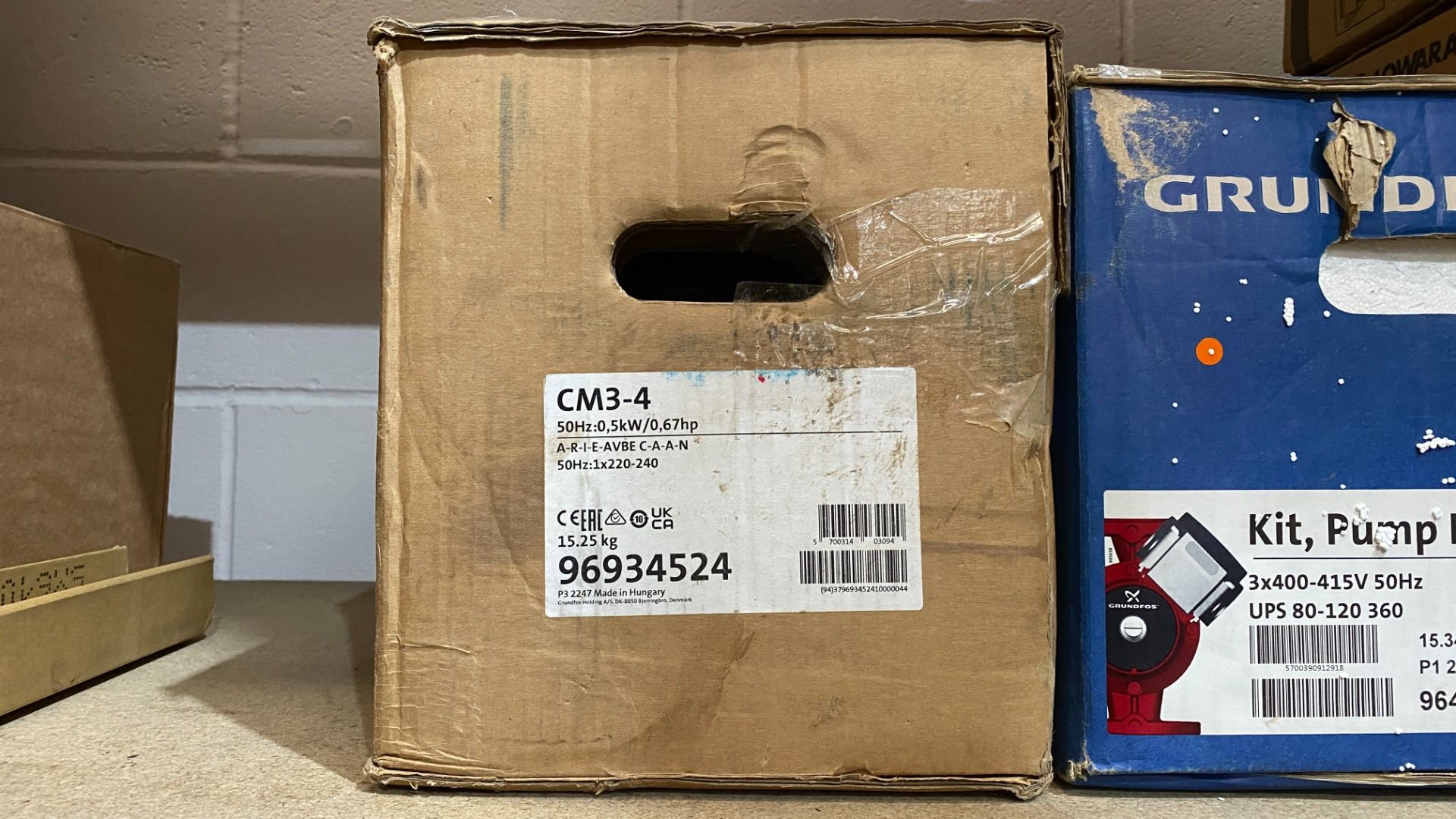

| Box/Bag Condition | New (Opened) |
| Original Box Contents Included | Documentation |
| Weight | 15.0 Kg |

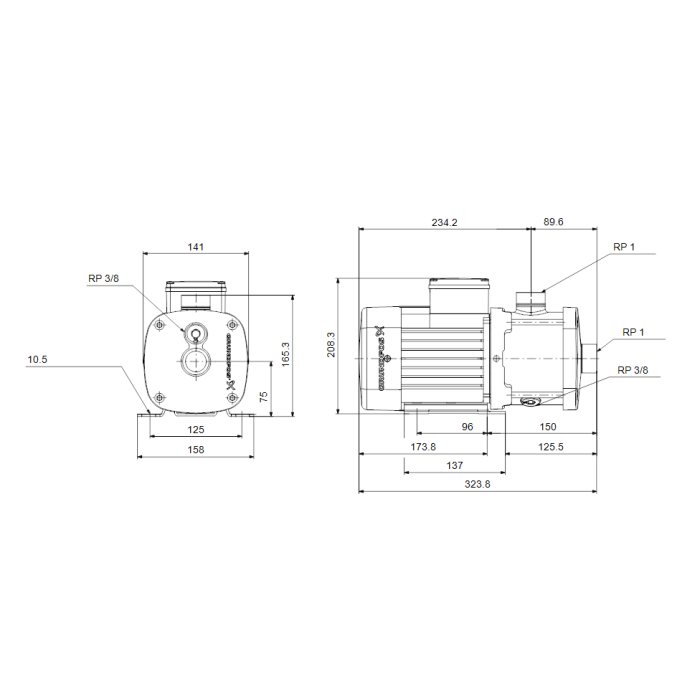

| Inlet Dimension | 1" Female |
| Discharge Dimension | 1" Female |

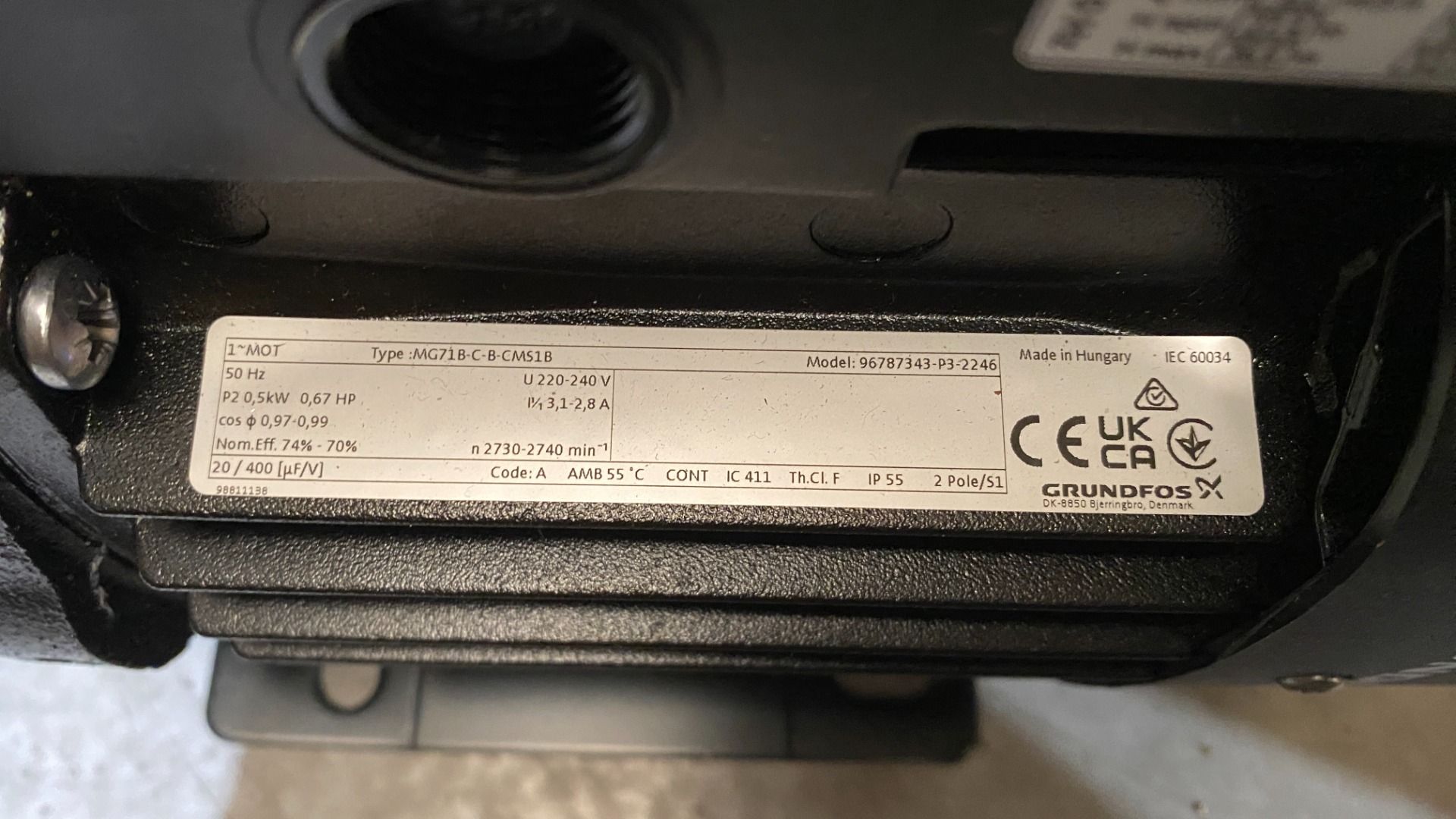

| Motor Size | 500W |
| Full Load Current (FLC) | 3.15A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2780 |

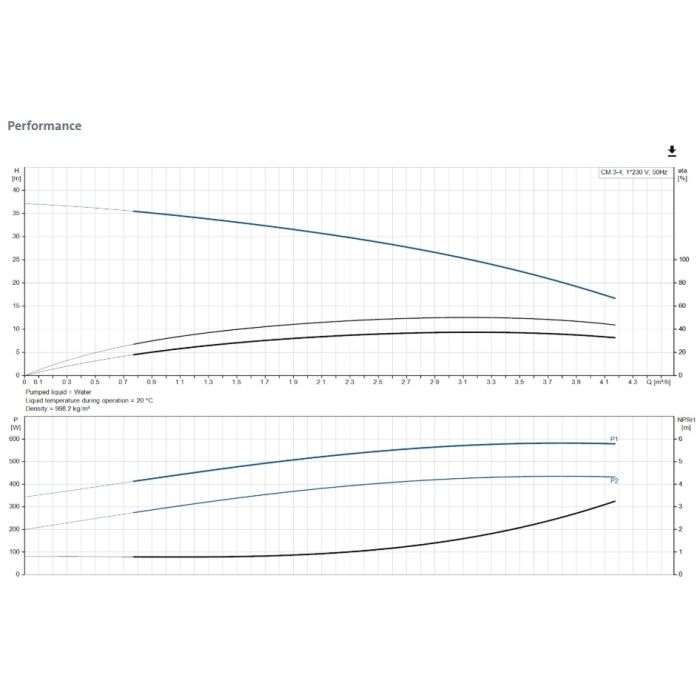

| Max Flow | 3.1m³/h |
| Max Head | 27.3m |
| Max Temperature | 90°C |
| Material | Stainless Steel |
| Impeller Material | Stainless Steel |
| Country of Manufacture | Hungary |
