Calpeda TP 78/A Peripheral Booster Pump 415V

Name: Calpeda TP 78/A Peripheral Booster Pump 415V
Brand: Calpeda
SKU: TP78-A
Price: 302 GBP
Availability: InStock

SKU

TP78-A

MRRP £431.00 + VAT Our price £302.00 (+ VAT) Incl. VAT: £362.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda TP 78/A Peripheral Booster Pump 415V - TP78-A

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.

Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.

Operating conditions:

Liquid temperature -10°C to +90°C
Ambient temperature up to 40°C
Total suction lift up to 7m
1/2" Suction and Discharge Ports (screwed connection)
Suitable for continuous duty

More Information
SKU	TP78-A
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Weight	8.2 Kg

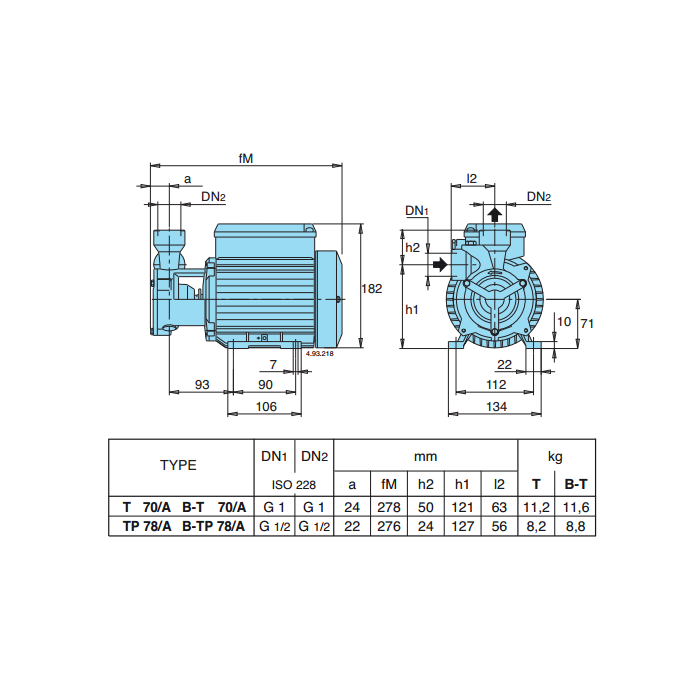

Dimensions	182mm High x 134mm Wide x 278mm Deep
Motor Size	0.37 kW
Voltage	415V 3Ph 50Hz
Max Flow	1 m3/hr
Max Head	75m
Material	Cast Iron
