Calpeda T 76A Peripheral Booster Pump 415V

SKU
T76E
MRRP £623.00 + VAT Our price £405.00 (+ VAT) Incl. VAT: £486.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

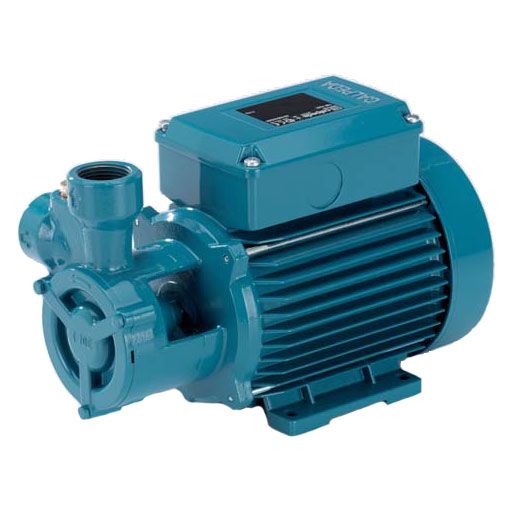

Calpeda T 76A Peripheral Booster Pump 415V - T76E

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.



Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.



Operating conditions:

  • Liquid temperature -10°C to +90°C
  • Ambient temperature up to 40°C
  • Total suction lift up to 7m
  • 1 1/4" Suction and Discharge Ports (screwed connection)
  • Suitable for continuous duty
More Information
SKU T76E
Manufacturers Calpeda
Manufacturers Warranty 1 Year
Weight 18.4 Kg

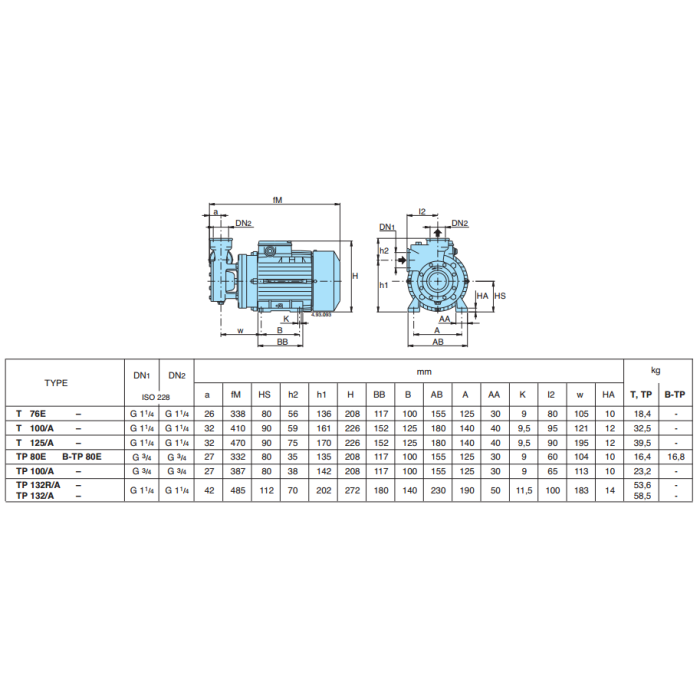

Dimensions 192mm High x 155mm Wide x 338mm Deep
Motor Size 1.1 kW
Voltage 415V 3Ph 50Hz
Max Flow 3.6 m3/hr
Max Head 70m
Material Cast Iron

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £8.50 + vat for items under 35kgs.  Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.

Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies.  The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies.  Please click here to view Returns information.

File Downloads

pdf
(Size: 608.6 KB)
