Calpeda NMDM 20/140BE End Suction Threaded Pump 240V

Name: Calpeda NMDM 20/140BE End Suction Threaded Pump 240V
Brand: Calpeda
SKU: NMDM20/140BE
Price: 745 GBP
Availability: InStock

SKU

NMDM20/140BE

MRRP £1,064.00 + VAT Our price £745.00 (+ VAT) Incl. VAT: £894.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda NMDM 20/140BE close coupled, centrifugal end suction pump with back-to-back impellers and screwed (threaded) connection, and 1.1kW (1.5HP) 240V 1Ph 50Hz motor - NMDM20/140BE

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.

NM: single-impeller
NMD: two back-to-back impellers (with axial thrust balancing).

The NM and NMD threaded pump range are suitable for the following applications:

Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
Mains water supply
Heating, air-conditioning, cooling and circulation plants
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	NMDM20/140BE
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Weight	23.9 Kg

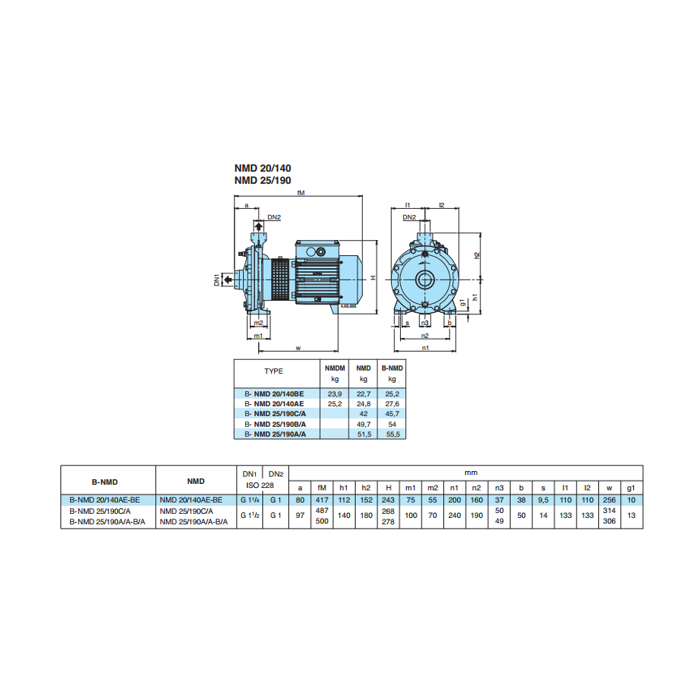

Dimensions	417mm (d) x 360mm (w) x 243mm (h)
Inlet Dimension	1 1/4" BSPF
Discharge Dimension	1" BSPF
Motor Size	1.1 kW
Full Load Current (FLC)	7.4A
Voltage	240V 1Ph 50Hz
Max Flow	3.6m3/hr
Max Head	52m
Max Temperature	90°C
Material	Cast Iron
