Calpeda NMD 40/180A/A End Suction Threaded Pump 415V

Name: Calpeda NMD 40/180A/A End Suction Threaded Pump 415V
Brand: Calpeda
SKU: NMD40/180A/A
Price: 3741 GBP
Availability: InStock

SKU

NMD40/180A/A

MRRP £5,344.00 + VAT Our price £3,741.00 (+ VAT) Incl. VAT: £4489.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda NMD 40/180A/A close coupled, centrifugal end suction pump with back-to-back impellers and screwed (threaded) connection, and 9.2kW (12.5HP) 415V 3Ph 50Hz motor - NMD40/180A/A

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.

NM: single-impeller
NMD: two back-to-back impellers (with axial thrust balancing).

The NM and NMD threaded pump range are suitable for the following applications:

Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
Mains water supply
Heating, air-conditioning, cooling and circulation plants
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	NMD40/180A/A
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Weight	97.0 Kg

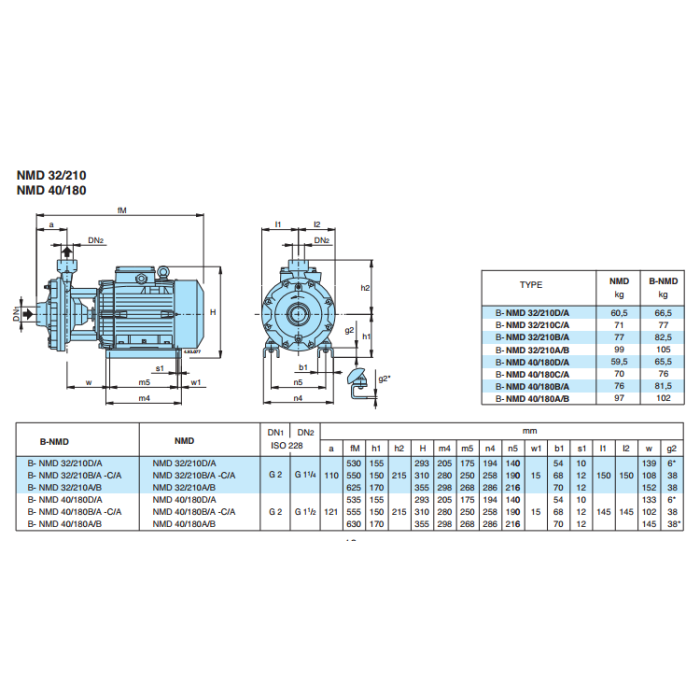

Dimensions	630mm (d) x 286mm (w) x 355mm (h)
Inlet Dimension	2" BSPF
Discharge Dimension	1 1/2" BSPF
Motor Size	9.2 kW
Full Load Current (FLC)	18.5A
Voltage	415V 3Ph 50Hz
Max Flow	18.9m3/hr
Max Head	94m
Max Temperature	90°C
Material	Cast Iron

Delivery & Returns

Delivery

We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £8.50 + vat for items under 35kgs. Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.

Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.

Returns

Unused, unaltered items may be returned at the buyers expense for credit upon Online Pump Supplies prior written consent and upon the terms specified by Online Pump Supplies. The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Online Pump Supplies. Please click here to view Returns information.

Reviews

Downloads

File Downloads

NM, NMD Threaded Instruction Booklet

(Size: 419.4 KB)

NM, NMD Threaded Pump Brochure

(Size: 590.1 KB)
