Calpeda NM EI 65/20A/A I-MAT Flanged End Suction Pump 415v

Name: Calpeda NM EI 65/20A/A I-MAT Flanged End Suction Pump 415v
Brand: Calpeda
SKU: U89004100000
Price: 10598 GBP
Availability: InStock

SKU

U89004100000

MRRP £15,140.00 + VAT Our price £10,598.00 (+ VAT) Incl. VAT: £12717.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

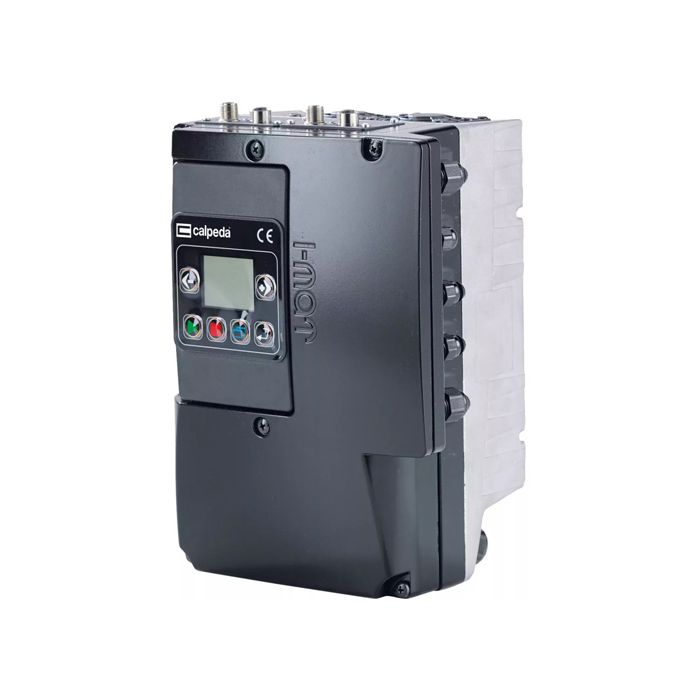

This Calpeda NM pump comes with an I-MAT control panel.

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
Mains water supply
Heating, air conditioning, cooling and circulation
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	U89004100000
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Weight	174.0 Kg
Inlet Dimension	80mm Flanged
Discharge Dimension	65mm Flanged
Motor Size	22,000W
Full Load Current (FLC)	41A
Voltage	415V 3Ph 50Hz
RPM	2900
Max Flow	141m³/hr
Max Head	57m
Max Temperature	90°C
Material	Cast Iron
Seal Type	Carbon-Ceramic-NBR
Impeller Material	Cast iron GJL 200 EN 1561
Country of Manufacture	Italy
