Calpeda NM EI 40/20B/A I-MAT Flanged End Suction Pump 415v

Name: Calpeda NM EI 40/20B/A I-MAT Flanged End Suction Pump 415v
Brand: Calpeda
SKU: U89001600000
Price: 3465 GBP
Availability: InStock

SKU

U89001600000

MRRP £4,949.00 + VAT Our price £3,465.00 (+ VAT) Incl. VAT: £4158.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

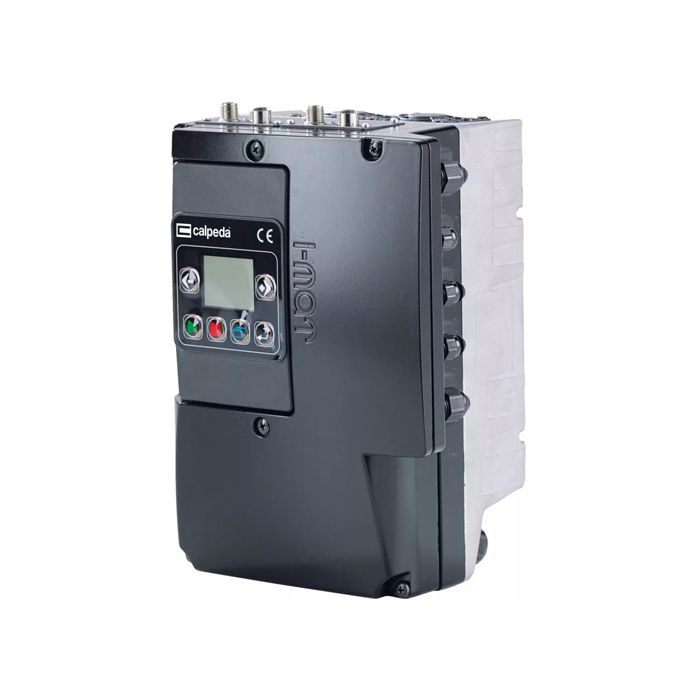

This Calpeda NM pump comes with an I-MAT control panel.

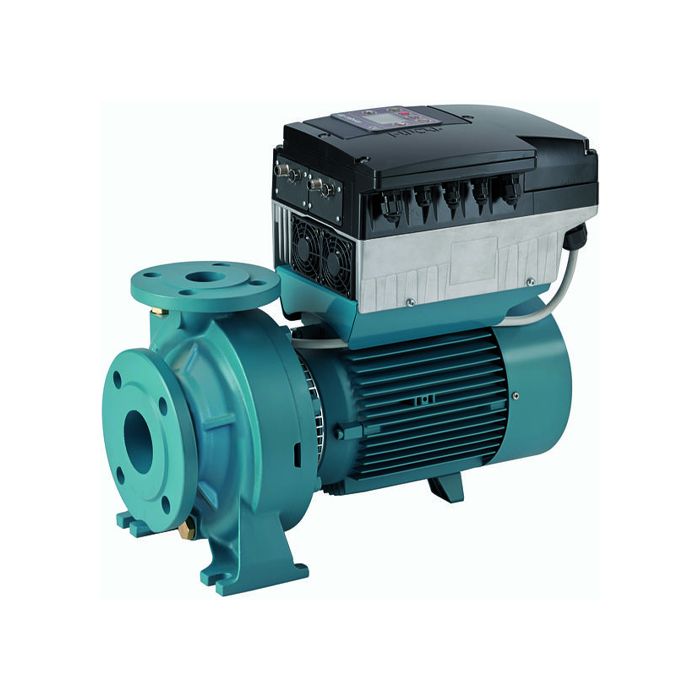

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
Mains water supply
Heating, air conditioning, cooling and circulation
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	U89001600000
Manufacturers	Calpeda
Manufacturers Warranty	1 Year
Weight	71.0 Kg
Inlet Dimension	65mm Flanged
Discharge Dimension	40mm Flanged
Motor Size	5,500W
Full Load Current (FLC)	10.8A
Voltage	415V 3Ph 50Hz
RPM	2900
Max Flow	37.8m³/hr
Max Head	50m
Max Temperature	90°C
Material	Cast Iron
Seal Type	Carbon-Ceramic-NBR
Impeller Material	Brass P-Cu Zn 40 Pb 2 UNI 5705
Country of Manufacture	Italy
