Calpeda NM 40/20A/A Flanged End Suction Pump 415V

SKU
NM40-20AA
MRRP £2,082.00 + VAT Our price £1,354.00 (+ VAT) Incl. VAT: £1,624.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda NM 40/20A/A Flanged close coupled end suction centrifugal pump with 7.5kw (10.0HP) 415V 3Ph 50Hz Motor - NM40-20AA

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

  • Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
  • Mains water supply
  • Heating, air conditioning, cooling and circulation
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
SKU NM40-20AA
Manufacturers Calpeda
Manufacturers Warranty 1 Year
Weight 72.0 Kg

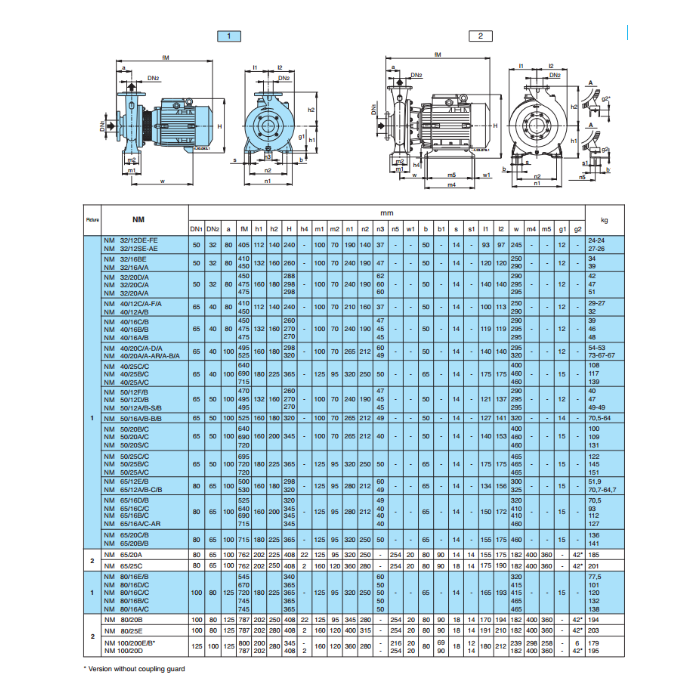

Dimensions 525mm (d) x 340mm (h) x 265mm (w)
Inlet Dimension 65mm Flanged
Discharge Dimension 40mm Flanged
Motor Size 7.5 kW
Full Load Current (FLC) 14.3A
Voltage 415V 3Ph 50Hz
Max Flow 42m3/hr
Max Head 57.5m
Max Temperature 90°C
Material Cast Iron
