Calpeda N4 80-400S Long Coupled Centrifugal Pump 415v

SKU
5000230A000
MRRP £15,444.00 + VAT Our price £10,039.00 (+ VAT) Incl. VAT: £12,046.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda N4 80-400S Long Coupled Centrifugal Pump 415v - 5000230A000

Construction
Single-stage end-suction centrifugal pumps, with bearing bracket.
The electropumps N, B-N, N4, B-N4 series comply with the European Regulation no. 547/2012 in force starting from 01.01.2013.

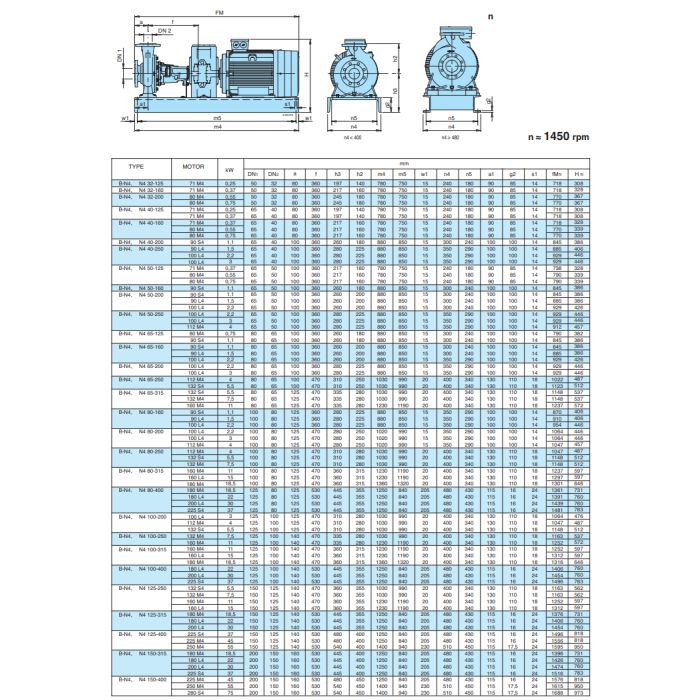

Nominal duty points and main dimensions in accordance with EN 733.
Back Pull-Out construction, for simple and quick dismantling and reassembly.
N, N4: version with pump casing and lanter bracket in cast iron.
B-N, B-N4: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Rated speed of rotation (50 Hz): N = 2900 rpm. ; N4 = 1450 rpm.
Connections: PN 10 flanges EN 1092-2.
Counter-flanges(on request)
from 32-160 to 50-250 : Screwed flanges PN 16 EN 1092-1.
from 65-125 to 150-400 : Flanges for welding PN 10 EN 1092-1.
Shaft sealing:
– Standardized mechanical seal in accordance with ISO 3069.
– Stuffing box seal (on request).

Applications
- For clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%).
- For water supply.
- For heating, air conditioning, cooling and circulation plants.
- For civil and industrial applications and for agriculture.
- For fire fighting applications.
- For irrigation.

More Information
SKU 5000230A000
Manufacturers Calpeda
Manufacturers Warranty 1 Year
Weight 185.0 Kg
Voltage 415V 3Ph 50Hz
RPM 1450
Max Head 61.40 m
Max Pressure 10 bar
Material Cast Iron
Seal Type Carbon-Ceramic-NBR
Impeller Material Cast Iron GJL 200 EN 1561
