Calpeda Meta Variable Speed Pressure Boosting System 240v

SKU
T663A10210S3
MRRP £957.00 + VAT Our price £670.00 (+ VAT) Incl. VAT: £804.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda Meta Variable Speed Pressure Boosting System 240v - META

Construction
Self-priming booster set with built in frequency converter.
MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel.
The VSD controls the start and stop of the pump and allows to keep a constant pressure.


Applications

  • for water supply
  • for domestic use, for garden use and irrigation

Features

  • integrated frequency converter
  • built-in pressure vessel
  • high efficiency asynchronous single-phase motor
  • motor power control
  • programmable re-start pressure
  • no hydraulic losses due to the measuring devices
  • voltage and current control
  • monitoring of maximum starting current


Protections

  • dry-run protection
  • detects the presence of air in the pump casing
  • overload control and overheating motor control
  • pump blockage
  • power supply control
  • starts per hour control
  • detects small leakages in the system
More Information
SKU T663A10210S3
Manufacturers Calpeda
Manufacturers Warranty 2 Years
Weight 13.0 Kg

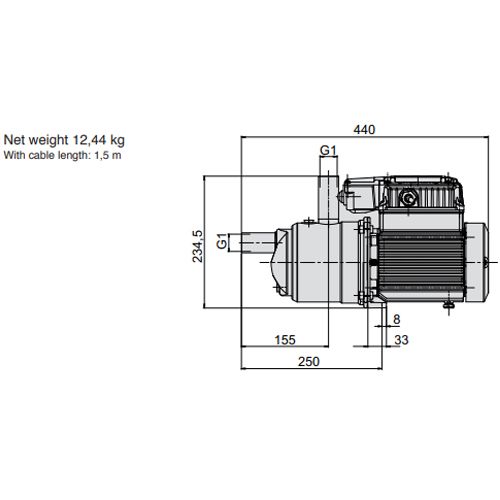

Dimensions 440mm x 240mm x 160mm
Connection Type 1 Inch BSP Female
Motor Size 1,350W
Full Load Current (FLC) 5.9A
Voltage 240V 1Ph 50Hz
Cable Length 1.5m
Max Flow 8.4m3/hr
Max Head 55m
Max Temperature 35°C
Seal Type Carbon Ceramic NBR
Impeller Material 304 Stainless Steel
