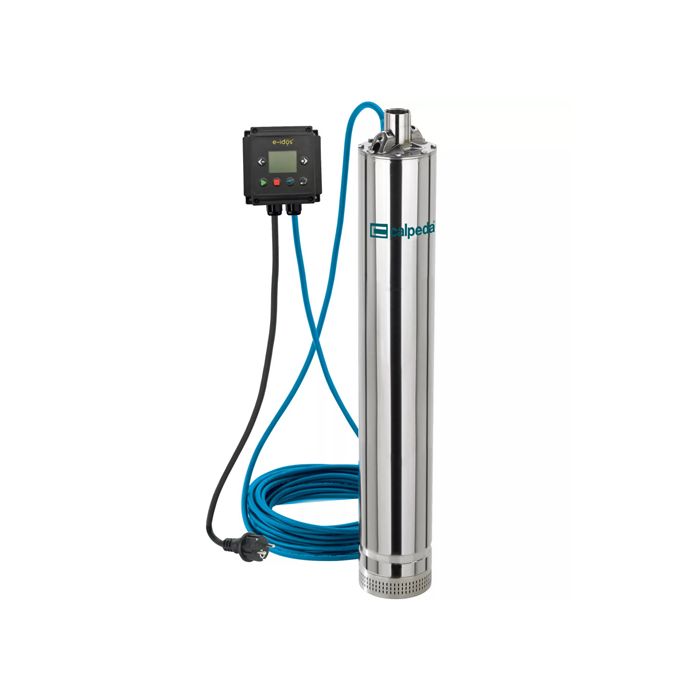

Calpeda E-MPSM 504-PCD 5" Submersible Multi-Stage Pump 240v
* Available where Guaranteed Stock Icon Appears Below
Construction
5” Close coupled multi-stage submersible pumps. Easy to install, compact and plug and play with integrated pressure transducer for automatic control of starting/stopping of the pump when utilization points are opened/closed with a integrated non-return valve. External jacket in stainless steel AISI 304 and stages Noryl. E-MPSM with built-in capacitor, accessible through the delivery casing. Hydraulics located below the motor with the motor cooled by the pumped fluid. Safe operation is possible with the motor only partially submerged. Double shaft seal with oil chamber.The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.
Applications
For water supply from wells, tanks or reservoirs
For domestic, civil and industrial applications, for garden use, irrigation and rain water harvesting systems
Features
High efficiency asynchronous single-phase motor
Capacitor less stressed in voltage
Uniform and lower motor temperature

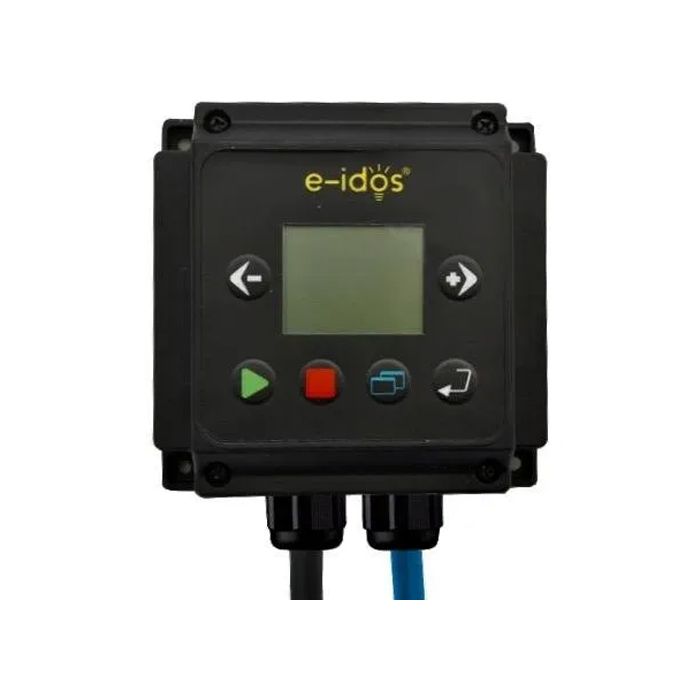

Motor power control
Programmable re-start pressure
Programmable stop pressure
No hydraulic losses due to the measuring devices
Voltage and current control
Monitoring of maximum starting current
Protections
Dry-run protection
Overload control and overheating motor control
Pump blockage
Power supply control
Starts per hour control
| SKU | T76G04041000 |
|---|---|
| Manufacturers | Calpeda |
| Manufacturers Warranty | 1 Year |
| Weight | 17.0 Kg |
| Discharge Dimension | 5/4" |
| Motor Size | 1,200W |
| Full Load Current (FLC) | 6A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2900 |
| Cable Length | 23m |
| Max Flow | 8m³/h |
| Max Head | 39m |
| Max Pressure | 10 bar |
| Material | Stainless Steel |
| Seal Type | Steatite Carbon NBR |
| Impeller Material | Noryl PPO GF20 |
| Country of Manufacture | Italy |
