ABS XJS 80 175 Submersible Sludge Pump 415v

SKU
J84H56231111111
MRRP £8,195.00 + VAT Our price £4,918.00 (+ VAT) Incl. VAT: £5,901.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

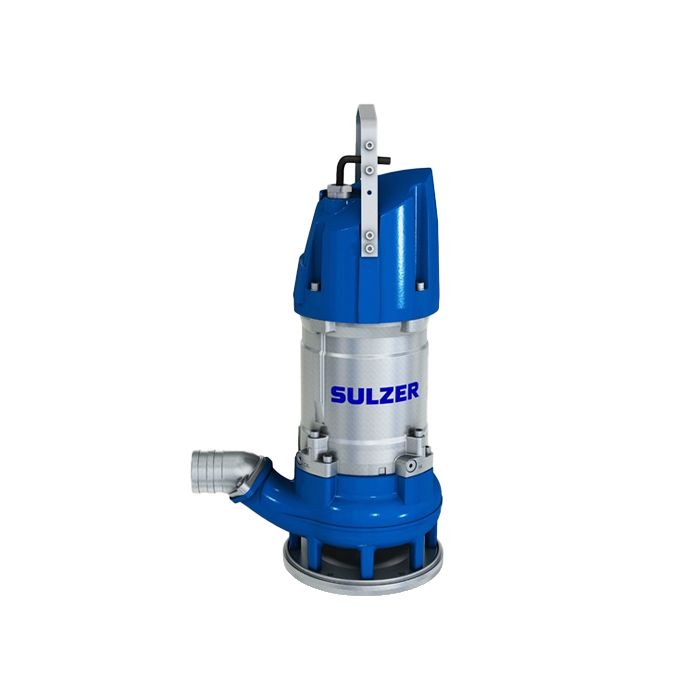

ABS XJS 80 175 Submersible Sludge Pump 415v - J84H56231111111

The XJS 80 submersible sludge pump is ideal for pumping sludge and water mixed with solids. Direct on line start with built in contactor. Pumps to be used with VFD or 1000v must have terminal block instead of contactor. Thermal switches (140°C, ±5) built into the stator windings are connected to the contactor and stops the pump at high temperature.

Features:

  • Plug-and-pump installation without having to worry about overheating
  • Clog-free pumping with pumps designed for pumping sludge and water mixed with solids
  • Non-overloading performance with a small impeller to allow the pump to run in low-level applications or intermittent dry running
  • Maximum submergence - 20 metres
  • Max number of starts - 30 per hour
  • Max temperature of pumped medium at max power input and continuous duty 40 ºC
  • Max medium density 1100 kg/m3

Shaft Seal:

Double mechanical seal in oil bath

Primary seal: Silicon carbide on silicon carbide

Secondary seal: Silicon carbide on carbon

Bearings:

Upper bearing: Single-row deep groove ball bearing

Lower bearing: Double angular contact ball bearing

Discharge connections:

2 ½", 3" (standard), 4" hose connections

2 ½", 3", 4" G/B.S.P. threaded connections

**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**

More Information
SKU J84H56231111111
Manufacturers ABS
Manufacturers Warranty 1 Year
Weight 64.0 Kg
Dimensions 789mm (h) x 393mm (d)
Motor Size P2 = 8.3kW
Full Load Current (FLC) 16A
Voltage 415V 3Ph 50Hz
RPM 2920rpm
Cable Length 20 metres
Max Flow 88m3/hr
Max Head 26m
Max Temperature Max temperature of pumped medium at max power input and continuous duty 40 ºC
Material Aluminium
Impeller Material Nodular Cast Iron
