ABS Sanimax R202/C-3m Pumping Station For Aggressive Liquids 240v

SKU
07565130
MRRP £837.00 + VAT Our price £503.00 (+ VAT) Incl. VAT: £603.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

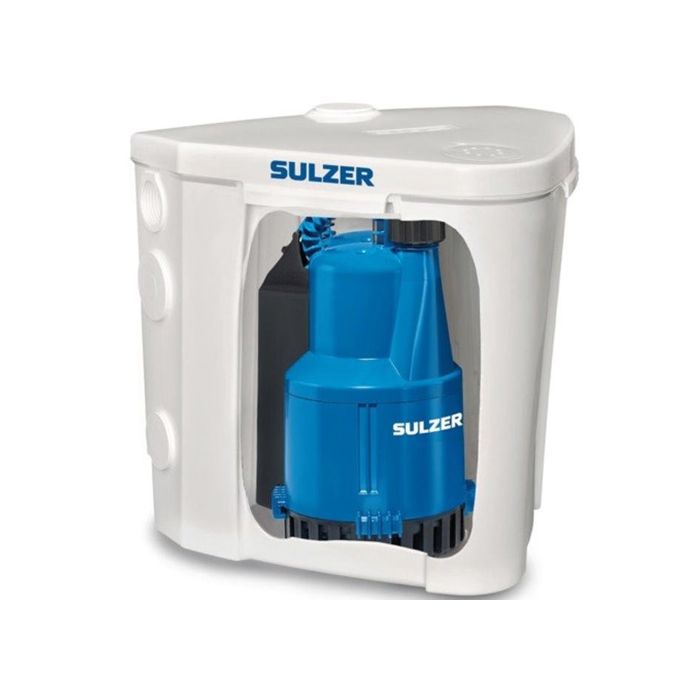

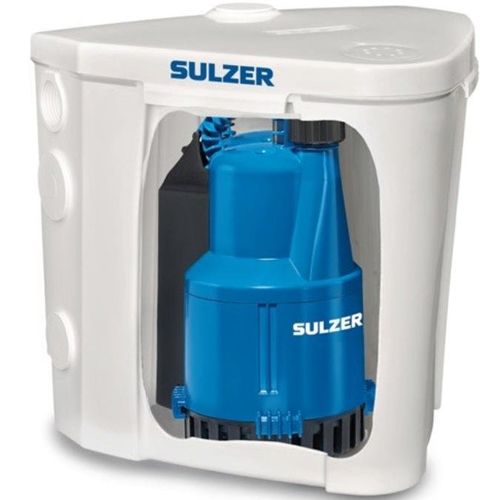

ABS Sanimax R202/C-3m Pumping Station For Aggressive Liquids 240v - 07565130

Complete wastewater pumping unit for installation at floor level and fitted with a submersible pump from the Robusta range. Suitable for the removal of liquids containing solid particles up to 10mm from wash-hand basins, domestic washing machines, or showers, from areas below the sewer level in accordance with EN 12050-2.

Main Benefits:

  • ready-for-use, plug-in unit with Schuko plug
  • supplied as standard with pump, automatic level control and non-return valve. A separate check valve should be used at heads over 5 metres
  • compact dimensions allow passage through a standard door opening
  • alarm float switch available as an accessory
  • seven ports (5 x 40mm, 2 x 50mm), ready-prepared with seals, can be used for inflow, discharge, power cable, or connection to a washing machine via a flexible hose (3/4" adaptor supplied)
  • odour-tight lid with odour lock and venting, including charcoal odour filter and overflow protection
  • easy to transport, with simple discharge line connection
  • synthetic, corrosion-resistant, gas and odour-tight tank, in accordance with EN 12050-2
  • water pressure sealed, squirrel cage 2-pole induction motor
  • 3 metre cable
  • chemical version for aggressive liquids. It is the duty of the user to check the suitability of the materials for the particular application

Applications:

  • commercial wastewater without toilet waste
  • domestic wastewater without toilet waste

**For the replacement pump to fit this pumping station, please see part code 01135051.**

**Fastening kits are only required when replacing a pump in an existing lifting station.**

More Information
SKU 07565130
Manufacturers ABS
Manufacturers Warranty 1 Year
Weight 6.8 Kg

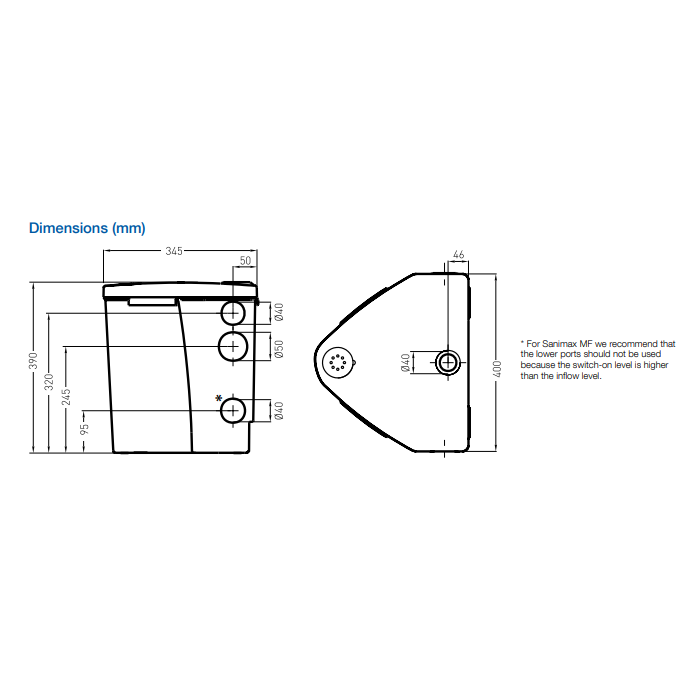

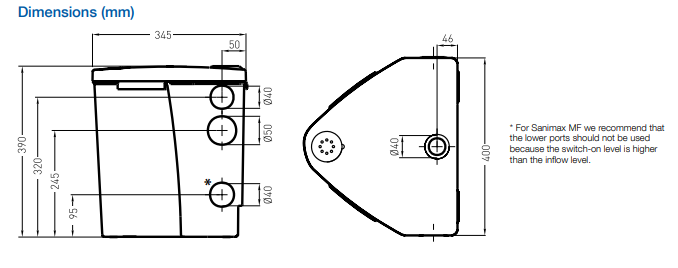

Dimensions 390mm (h) x 400mm (w) x 345mm (d)
Motor Size P2 = 0.16kW
Full Load Current (FLC) 1.6 A
Voltage 240V 1Ph 50Hz
RPM 2900 rpm
Cable Length 3 metres

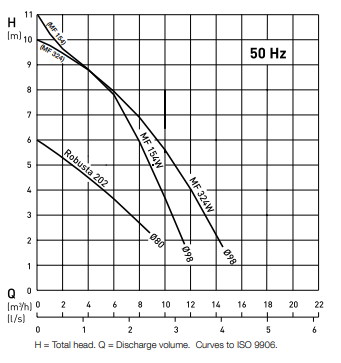

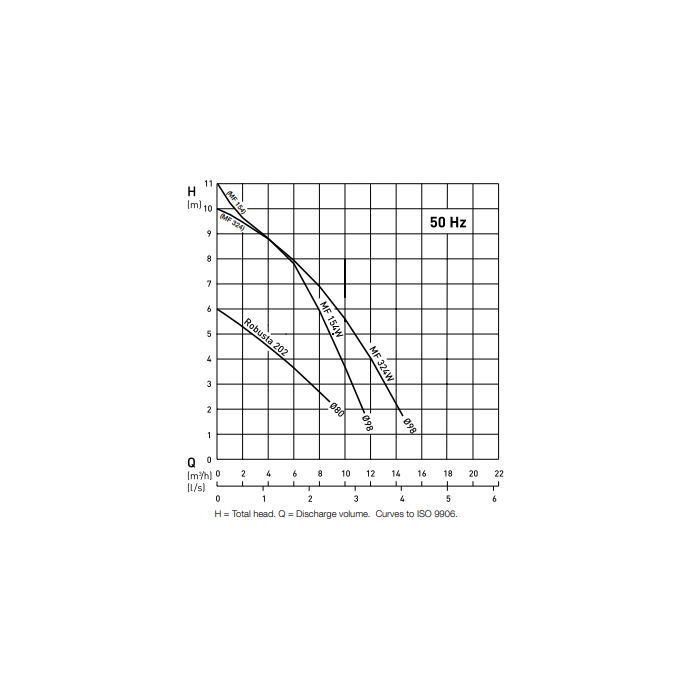

Max Flow 9m3/hr
Max Head 6m
Max Temperature Maximum allowable temperature of medium 40 °C; short term to 60 °C (max. 5 minutes)
Material Polypropylene
Seal Type Viton
Impeller Material Polyamide
