80mm (80NB) Flanged PN6 EPDM Tied Rubber Expansion Joint Set (x2) for Heating Systems

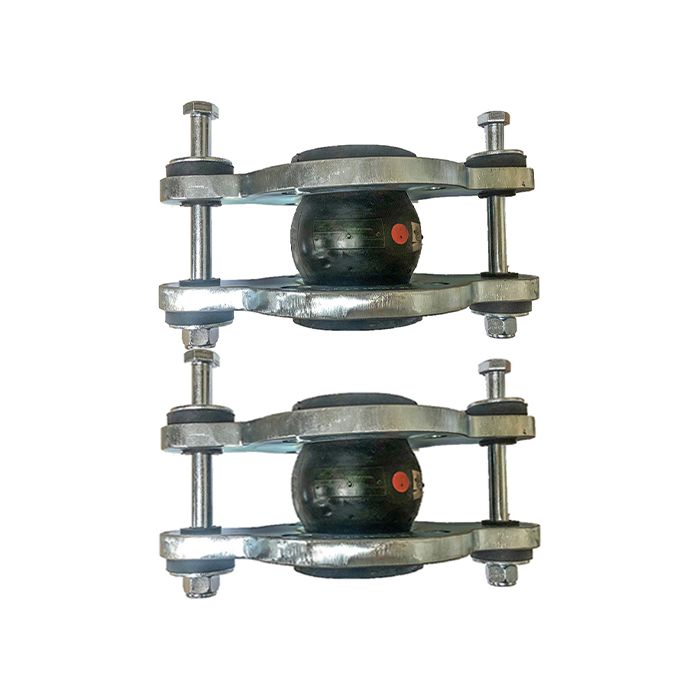

Name: 80mm (80NB) Flanged PN6 EPDM Tied Rubber Expansion Joint Set (x2) for Heating Systems
Brand: Anchor
SKU: RBJR080PN6TD130
Price: 592 GBP
Availability: InStock

SKU

RBJR080PN6TD130

MRRP £740.00 + VAT Our price £592.00 (+ VAT) Incl. VAT: £710.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Designed to accommodate vibration the EPDM D Type single sphere expansion joint is suitable for hot and cold water, LTHW and primary systems

Flanged Untied Expansion Joints require the pipework to be securely anchored and guided for safe and correct operation

If there are high levels of vibration/ pressure at the pumps location then it is advised that tied expansion bellows are used and were working pressures are over 10BarG then tied units are required regardless of fixing points in the pipeline

Bellow Length 130mm face to face

Construction Materials

Inner Tube: EPDM Compound
Reinforcement: Nylon® textile cord
Cover: EPDM Compound
Flanges: S235 JR Carbon Steel Zinc Plated, drilling according to BS4504/EN1092
Tie Bars (if fitted): Carbon Steel

NOT Suitable for secondary domestic hot water

More Information
SKU	RBJR080PN6TD130
Manufacturers	Anchor
Manufacturers Warranty	1 Year
Weight	18.0 Kg
Dimensions	130mm length face to face
Connection Type	80mm Flanged
Material	Carbon Steel
