TP 100-170/4 A F A BQQE 5.5kW Single Stage Single Head In Line 4 Pole 415v

SKU
96109306
MRRP £5,794.00 + VAT Our price £3,361.00 (+ VAT) Incl. VAT: £4,033.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos TP 100-170/4 A F A BQQE Single Stage Single Head In-Line Pump with 4 Pole 415V 3Ph 50Hz, 5.5kW Motor and flanged connections.

Single-stage centrifugal in-line single-head pump:

  • neck rings and impeller made of stainless steel
  • cataphoresis treatment
  • shell coupling
  • top-pull-out principle for easy maintenance
  • optimized hydraulics
  • in-line design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation
  • corrosion resistant maintenance-free mechanical shaft seal.
  • RP 100mm flanged Outlet

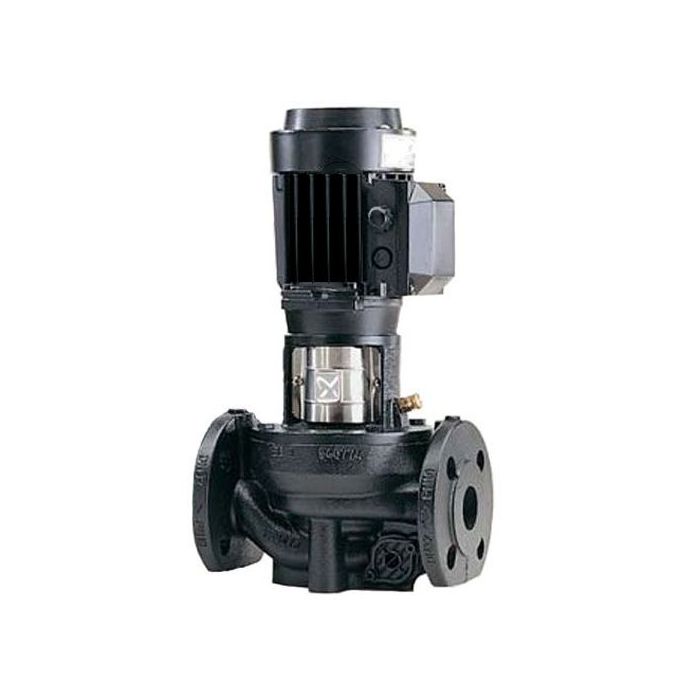

IMAGE FOR ILLUSTRATION PURPOSES ONLY.

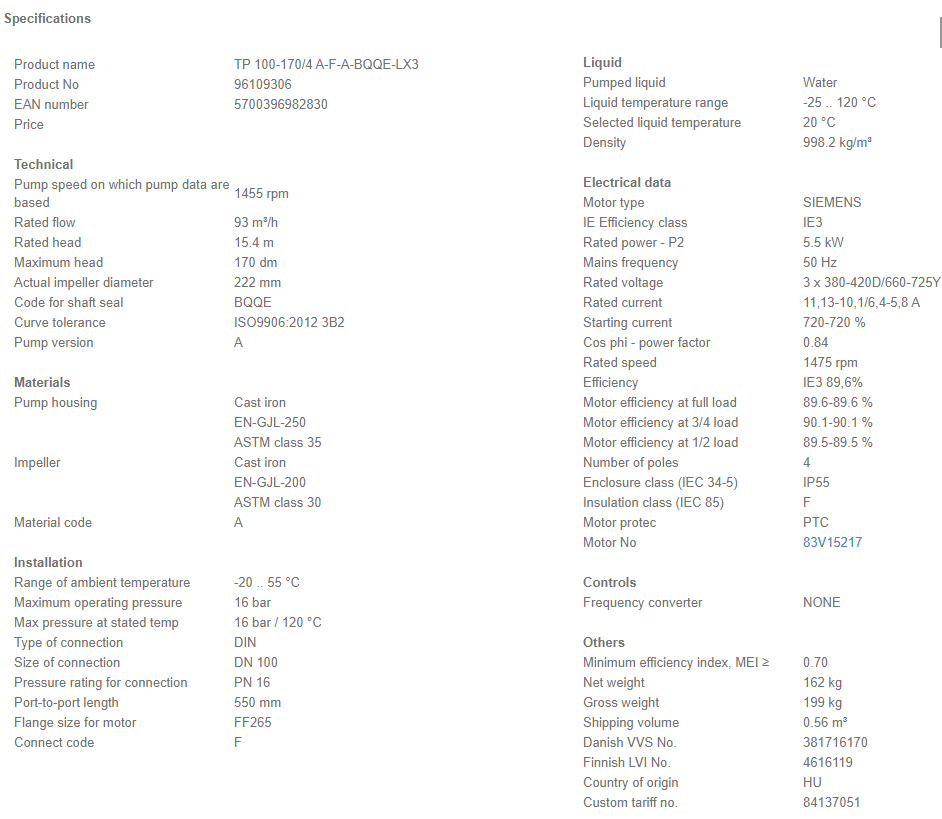

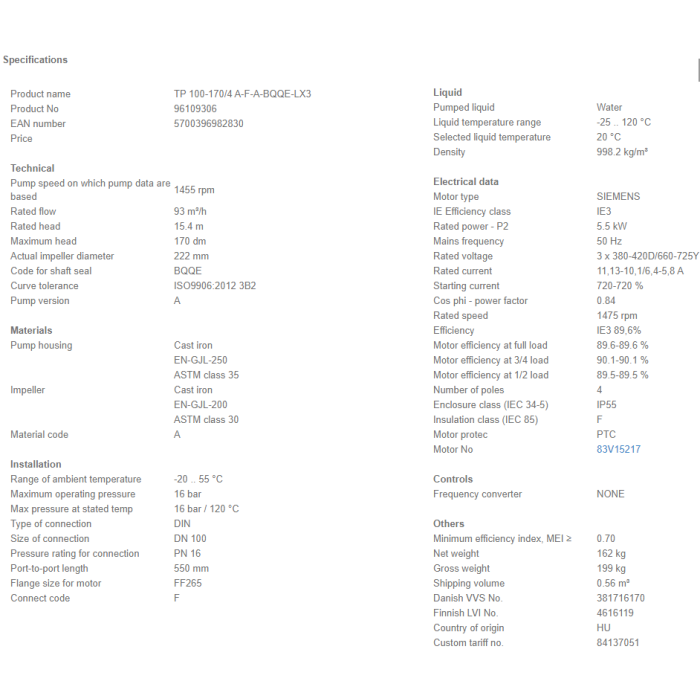

More Information
SKU 96109306
Manufacturers Grundfos
Manufacturers Warranty 2 Years
GTIN 5700396982830
Weight 172.0 Kg

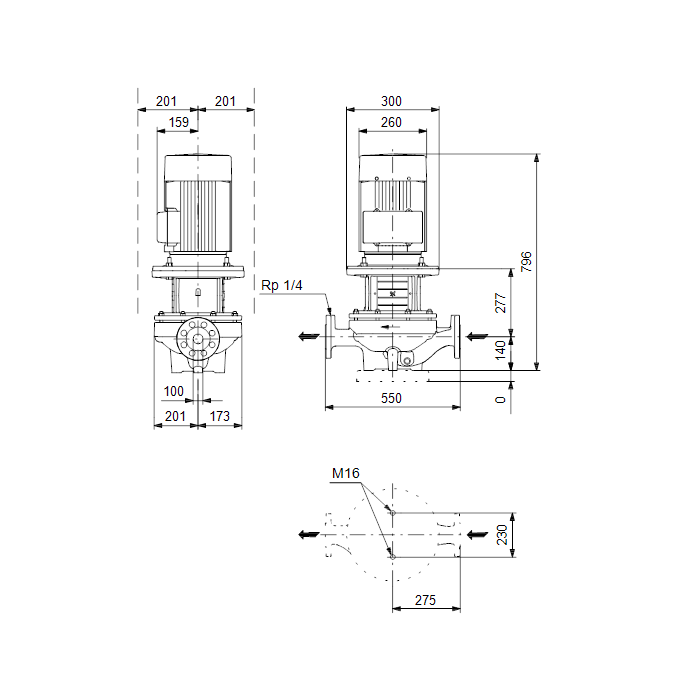

Dimensions 796mm (h) x 550mm (w) x 374mm (d)
Connection Type 100mm Flanged
Motor Size 5.5kW
Full Load Current (FLC) 6,35-6,35 A
Voltage 415V 3Ph 50Hz
RPM 1455rpm

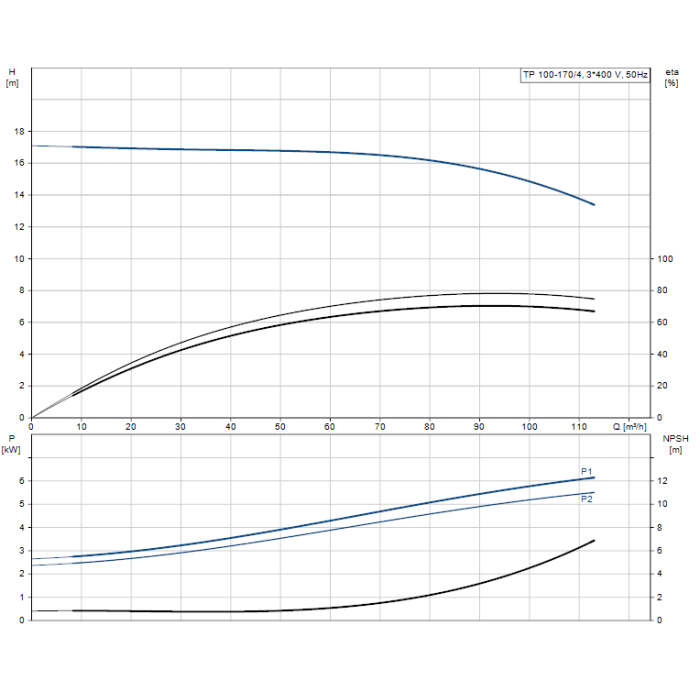

Max Flow 113m3/hr
Max Head 17m
Max Temperature 120 degrees C
Material Cast Iron
Impeller Material Cast Iron
