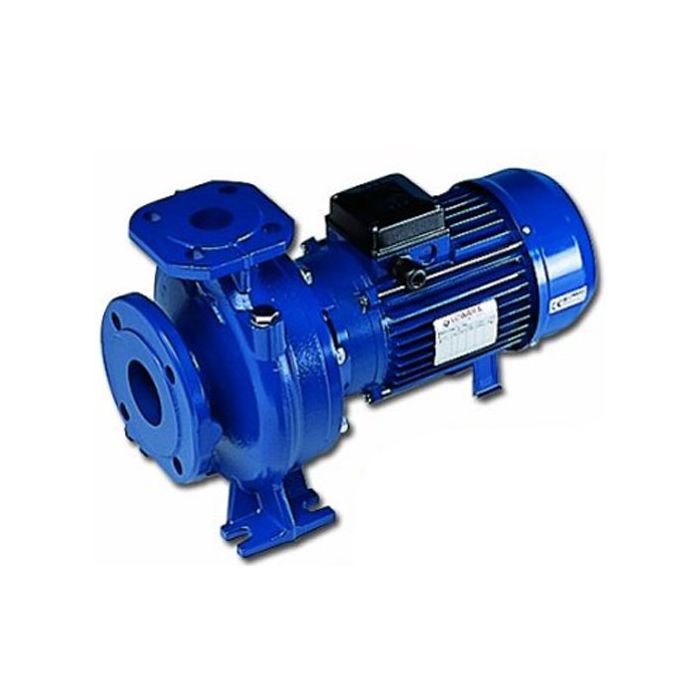

Lowara FHE4 80-160/22/P Centrifugal Pump 415V replaced with NSCE 80-160/22
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Please note this pump is no longer available and has been replaced with the NSCE 80-160/22/P45RCC4 (101843840). This will be sent as a replacement.
Lowara's range of FH End Suction Centrifugal Pumps have Cast Iron bodies and AISI 316L stainless steel welded impellers. This range is suitable for pumping hot or cold, mildly aggressive liquids upto a maximum temperature of 85°C (120°C on request).
Certain pumps are available with Screwed connections. Flanged pumps do not come with flange kit, this is shown as a related item to the specific pump model.
Available models:
FHE Close-coupled with special motor shaft extension.
FHS With stub shaft and standard motor.
FHF With flexible coupling, adapter, base and standard motor in compliance with EN 733 - DIN 24255.
We recommend that the Flange kit is purchased with this pump, this is a related item to this pump model.
This pump is available with a Bronze Impeller at extra cost, please ring for details.
Models ending with /P are fitted with Lowara's PLM high efficiency motors.
Specifications:
| SKU | 101395570 |
|---|---|
| Manufacturers | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 74.0 Kg |
| Dimensions | 547mm Long x 405mm High x 332mm Wide |
| Motor Size | 2.2kW |
| Full Load Current (FLC) | 4.8A |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 108 m3/hr |
| Max Head | 8.5m |
| Material | Cast Iron |
