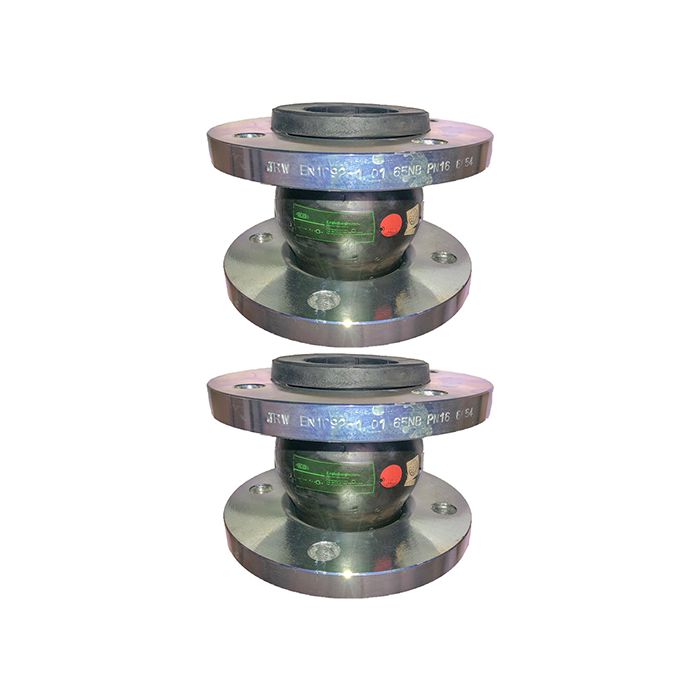

350mm (350NB) Flanged PN16 EPDM Untied Rubber Expansion Joint Set (x2) for Heating Systems
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Designed to accommodate vibration the EPDM D Type single sphere expansion joint is suitable for hot and cold water, LTHW and primary systems
Flanged Untied Expansion Joints require the pipework to be securely anchored and guided for safe and correct operation
If there are high levels of vibration/ pressure at the pumps location then it is advised that tied expansion bellows are used and were working pressures are over 10BarG then tied units are required regardless of fixing points in the pipeline

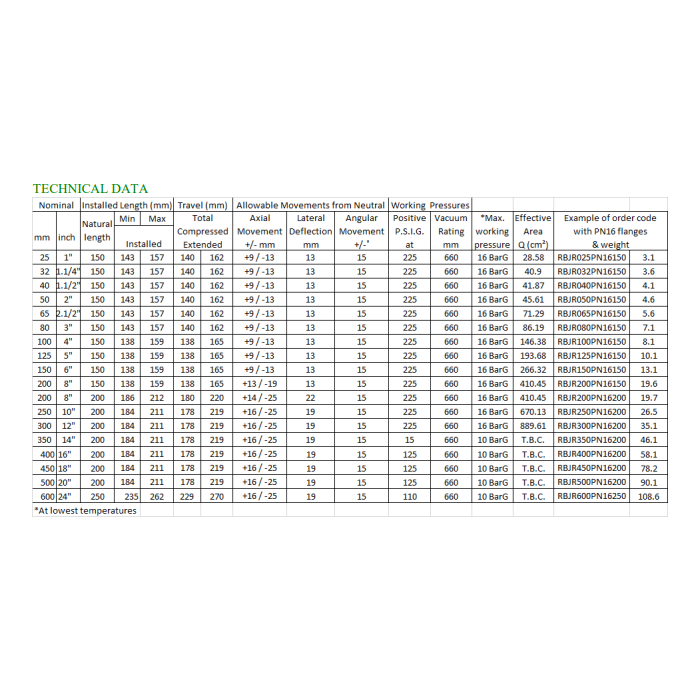

Max Operating Conditions:
- 16BarG @ 80oC
- 9BarG @ 105oC
Minimum Operating Temp: -20oC
Test Pressure: 24BarG @ Ambient Temp
Bellow Length 200mm face to face
Construction Materials
- Inner Tube: EPDM Compound
- Reinforcement: Nylon® textile cord
- Cover: EPDM Compound
- Flanges: S235 JR Carbon Steel Zinc Plated, drilling according to BS4504/EN1092
- Tie Bars (if fitted): Carbon Steel
NOT Suitable for secondary domestic hot water
| SKU | RBJR350PN16200 |
|---|---|
| Weight | 92.0 Kg |
| Dimensions | 200mm length face to face |
| Manufacturers | Anchor |
| Material | Carbon Steel |
| Max Pressure | 16BarG @ 80oC |
| Max Temperature | 105oC @ 9BarG |
| Connection Type | 100mm Flanged |
| Suitable For Heating | Yes |
