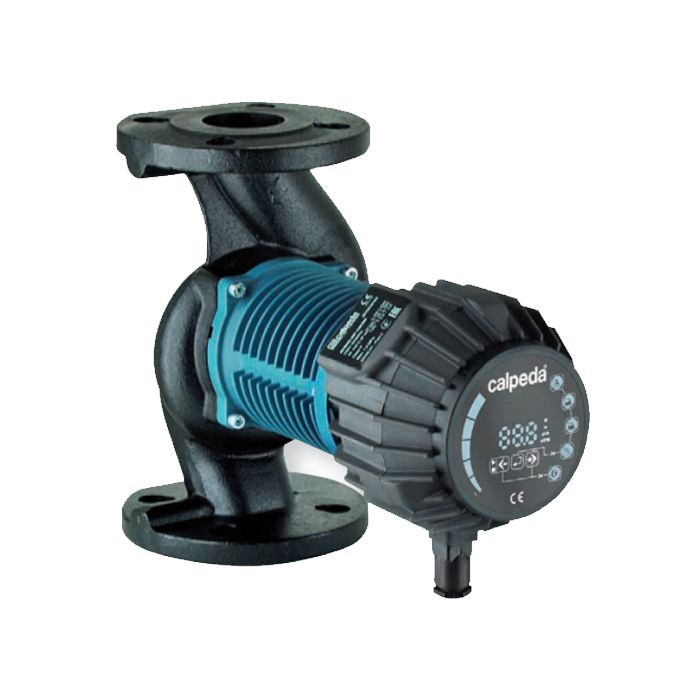

Calpeda NCE HQ 40F-180/250 Flanged Energy Efficient Circulator Pump 240v

SKU
NCEHQ40F180250
MRRP £3,048.00 + VAT Our price £1,982.00 (+ VAT) Incl. VAT: £2,378.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

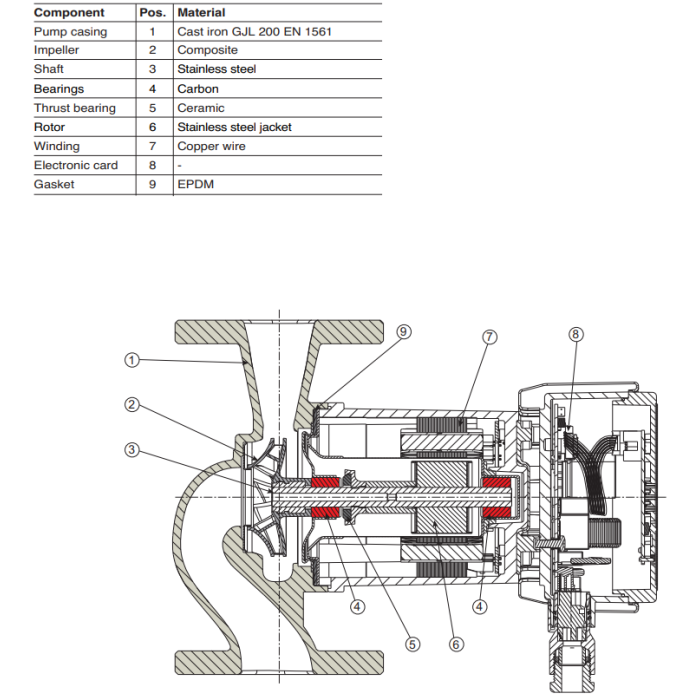

Construction
Energy saving variable speed circulating pump driven by a permanent magnet synchronous motor (pm) controlled by on
board inverter.
Digital input and output:
- Modbus (NCE HQ on request)
- Eternet (NCE HQ on request)
- analog input 0-10V
- remote on/off input
- output relay


Applications
Heating and conditioning systems.


Operating conditions
- Liquid temperature from +2 °C to +110 °C
- Ambient temperature from 0 °C to +40 °C
- Maximum permissible working pressure: 10 bar
- Storage: -20°C/+70°C max. relative humidity 95% at 40 °C
- Certifications: in conformity with CE requirements
- Sound pressure ≤ 40 dB (A).
- Minimum suction pressure: - 0,05 bar at 75 °C
- 0,28 bar a 90 °C.
- Maximum glycol quantity: 20%.
- EMC according to: EN 55014-1, EN 55014-2
EN 61000-3-2, EN 61000-3-2.

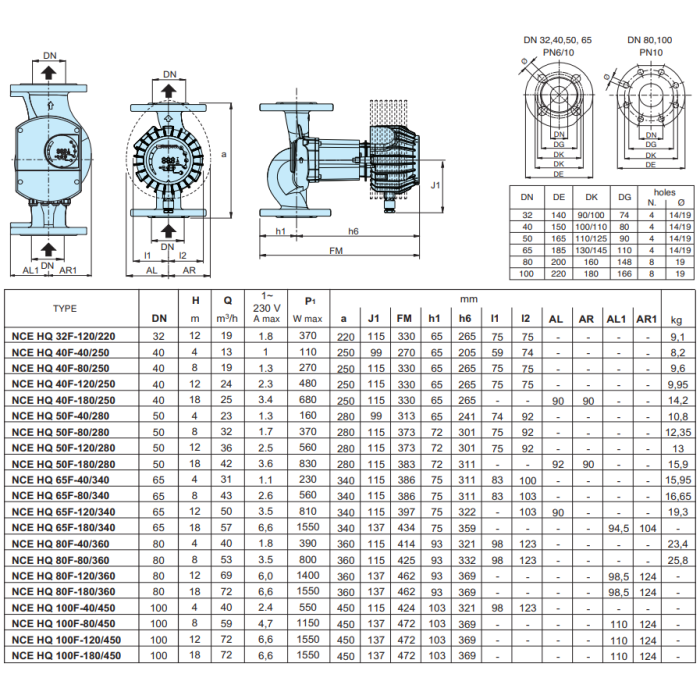

- Connections: Flanges according to PN 6/10, EN 1092-2,
DN 32,40,50,65,80,100.
- The benchmark for most efficient circulators is EEI ≤ 0,20.


Motor
Synchronous motor with permanent magnet.
- Motor: variable speed
- Standard voltage: single-phase 230 V (-10%;+6%)
- Frequency: 50/60 Hz
- Protection: IP 44
- Insulation class: F
- Overload protection (integrated).
- Cable: phases and neutral.
- Constructed in accordance with: EN 60335-1, EN 60335-2-51.

Smart pump
NCE(D) HQ.F adapt its functions to the system: the circulator measures the pressure and the flow and adjusts the speed to the selected pressure.


Easy use
There are different operating modes selectable from the control panel.

More Information
SKU NCEHQ40F180250
Manufacturers Calpeda
Manufacturers Warranty 1 Year
Weight 14.0 Kg
Inlet Dimension DN 40
Discharge Dimension DN 40
Motor Size 680w
Full Load Current (FLC) 3.4A
Voltage 240V 1Ph 50Hz
Max Flow 25m³/h
Max Head 18m
Material Cast Iron
Impeller Material Composite
Country of Manufacture Italy
