Grundfos

Grundfos UPSD 65-60/2 (340) Twin Head Commercial Circulator 240V replaced with MAGNA1 D 65-60F (340)

Availability: In stock

MRRP: £3,258.00 + VAT

Our Price Excl. VAT: £1,971.00 + VAT Incl. VAT: £2,365.20

  • two Year Warranty
  • Free Delivery

Overview

Grundfos UPSD 65-60/2 (340) Twin Head 240V Commercial Circulator pump.

Due to new European Legislation brought into force in January 2013, the UPSD 65-60/2 (340) is no longer manufactured.  On purchase of this pump, when old stock has been depleted we will automatically upgrade your order to the new EUP ready Energy Efficient MAGNA1 D 65-60F (340) at no extra cost.

Please note, this pump requires no alteration to pipework and will fit directly into the space of the UPSD Pump.

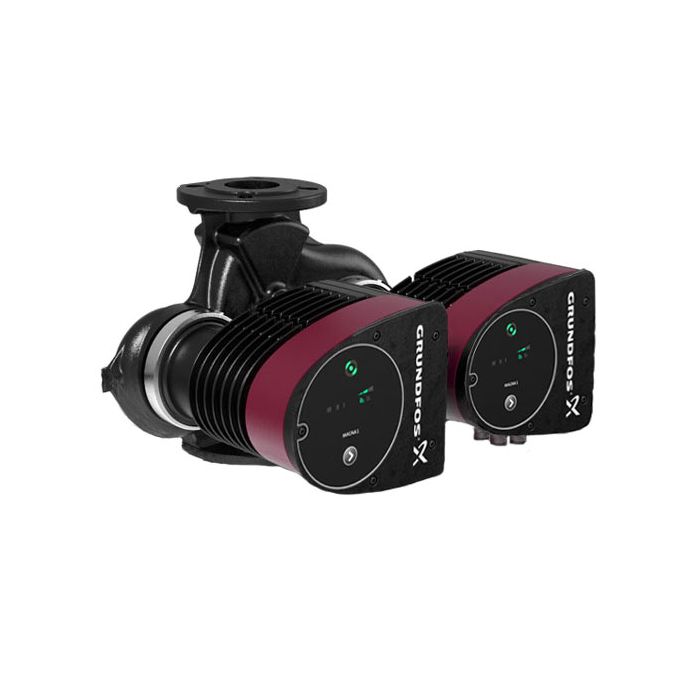

The Grundfos MAGNA1 D 65-60F (340) 'A' Rated/EuP Ready variable speed circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.  The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.

Benefits:

  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life

Liquid:

  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 D 65-60F has 340mm port-to-port dimensions and 65mm flanged connections

Spec

ManufacturerGrundfos
Pump ModelGrundfos UPSD 65-60/2 (340) Twin Head Commercial Circulator 240V replaced with MAGNA1 D 65-60F (340)
Product Code (SKU)96408933/ 97924408
Pump TypeVariable Speed Circulators
MaterialCast Iron
Voltage240V 1Ph 50Hz
Dimensions340mm high x 522mm wide x 389mm deep
Weight45.1000
Max. Flow52m3/hr
Max. Head6m
Motor Size (kW/W)21-364W
Full Load Current (FLC)0.24-1.63A
Single/TwinTwin Head
