Grundfos Alpha2L 20-45N (150) 'A' Rated/EuP Ready Hot Water Service Circulator 240V (98094952)

Availability: In stock

MRRP: £395.00 + VAT

Our Price Excl. VAT: £278.00 + VAT Incl. VAT: £333.60

  • fiveyearwarranty
  • Free Delivery
  • Guaranteed Stock

Overview

The Grundfos ALPHA2L 20-45N (150) 'A' Rated/EuP Ready domestic hot water service circulator is the most advanced energy efficient domestic circulator of its kind. It is the ideal choice for a variety of domestic hot water systems, with both variable speed pressure controlled operation and standard selectable three speed operation.

The ALPHA2L is an A Rated Energy labelled product, achieving the highest possible energy savings under the energy labelling scheme.

The reduction in power consumption has been achieved by using the latest permanent magnet motor technology. Using pressure controlled operation power consumption can be reduced to as low as 5 watts.

This pump has 150mm port to port dimensions. Fittings not included, see accessories tab below for more options.

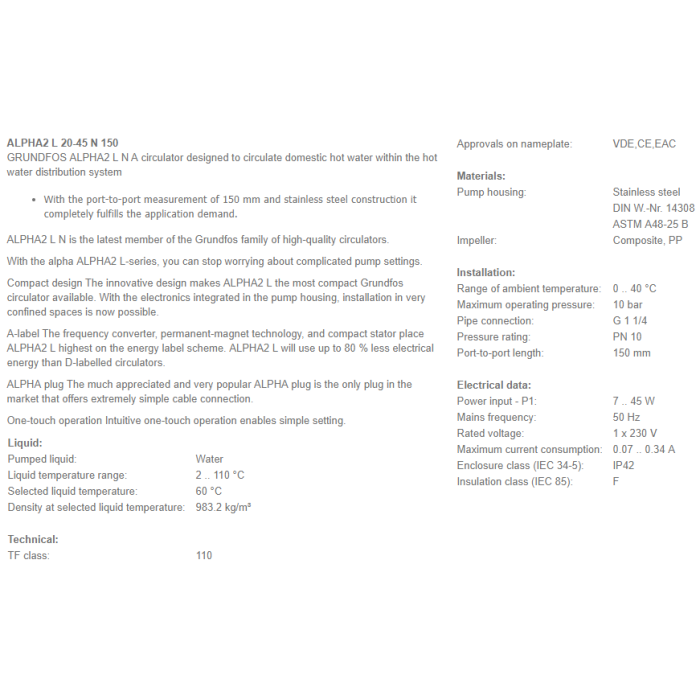

Spec

ManufacturerGrundfos
Pump ModelGrundfos Alpha2L 20-45N (150) 'A' Rated/EuP Ready Hot Water Service Circulator 240V
Product Code (SKU)98094952
Pump TypeHot Water Circulators
MaterialCast Iron
Voltage240V 1Ph 50Hz
Dimensions150mm high x 86mm wide x 154mm deep
Weight1.8000

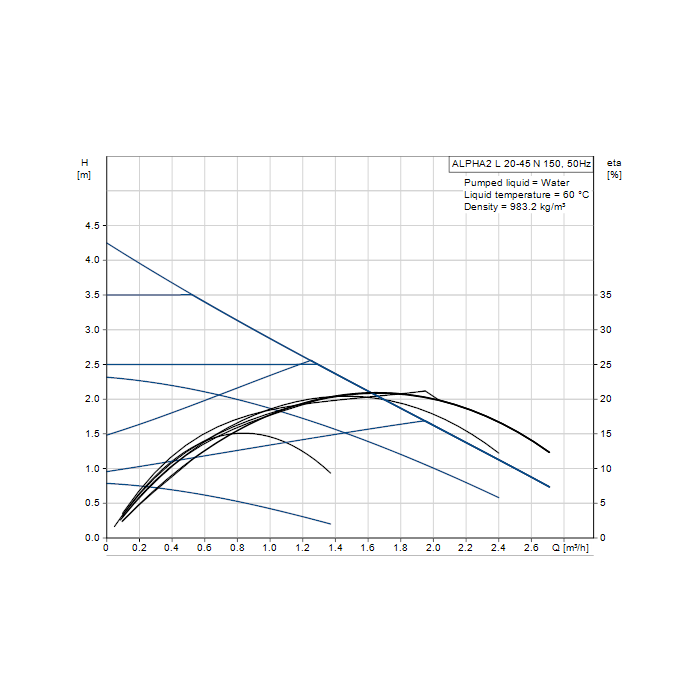

Max. Flow2.7m3/hr
Max. Head4.5m
Motor Size (kW/W)7-45W
Full Load Current (FLC)0.07-0.34A
Single/TwinSingle Head
